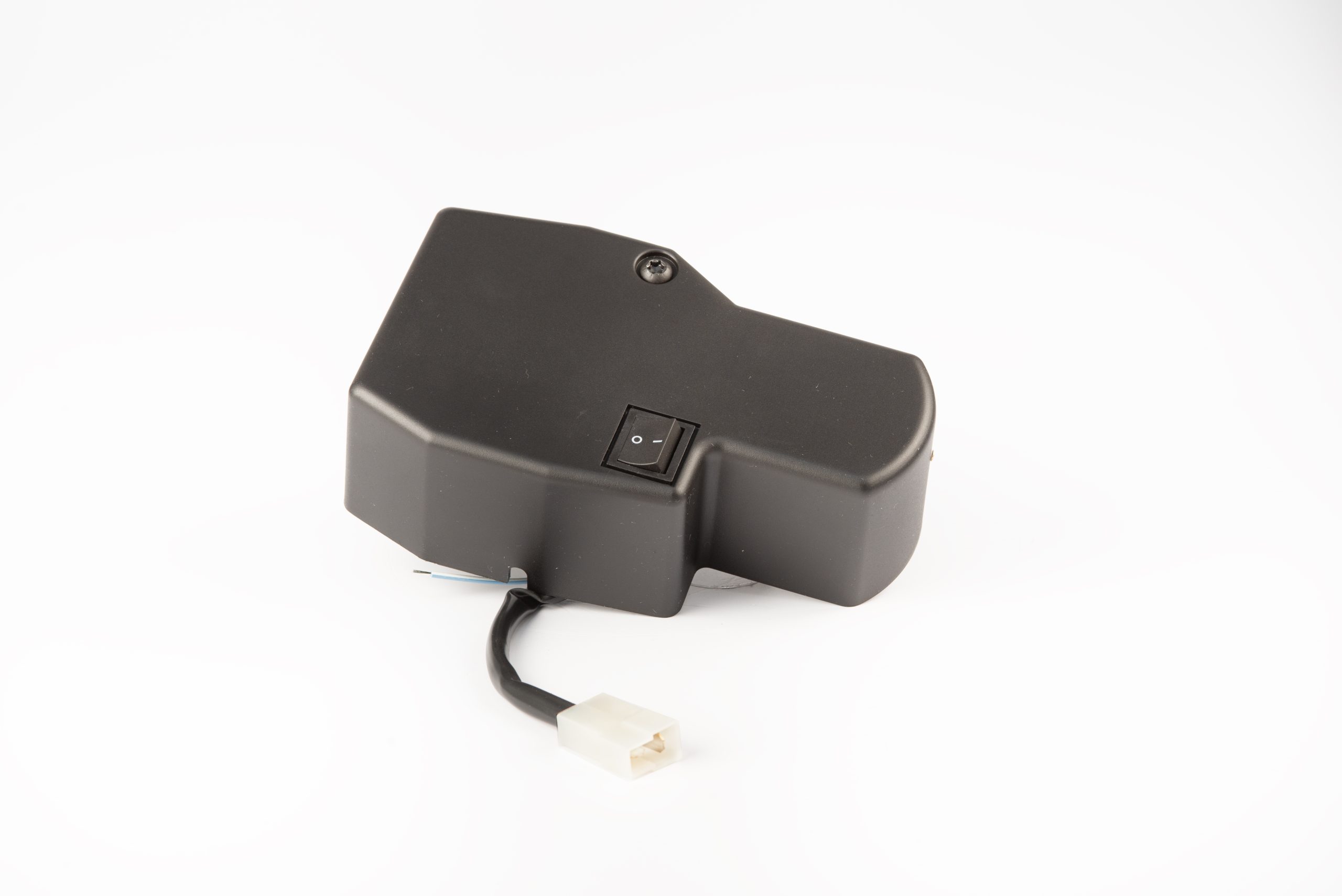

ITG50 DC gearmotor with oscillating output shaft
| Family | M41 | M39 | M42 | M40 |
| Nominal voltage (V) | 12 | 24 | 12 | 24 |
| Number of speed | 1 | 1 | 1/2 | 1/2 |
| Test voltage (V) | 13 | 26 | 13 | 26 |
| Nominal power (W) | 19.5 | 26 | 19.5/26 | 26/39 |
| Nominal current (A) | 1.5 | 1 | 1.5/2 | 1/1.5 |
| Maximum current (A) | 10.5 | 6 | 10.5/12 | 6/7 |
| Nominal Speed (rpm) | 40 | 48 | 40/52 | 48/60 |
| Nominal Torque (Nm) | 2 | 2 | 2/1 | 2/1 |
| Starting Torque (Nm) | 12 | 12 | 12/9 | 12/9 |
| Service mode | continuous | continuous | continuous | continuous |
| Protection | IP00/IP40/IP44 | IP00/IP40/IP44 | IP00/IP40/IP44 | IP00/IP40/IP44 |
| Weight (kg) | 0.9 | 0.9 | 0.9 | 0.9 |
8
βλέπουν αυτό το προϊόν τώρα!
Περιγραφή
The ITG50 motor is equipped with an internal mechanism that allows it to cover cleaning angles between 48 and 175 degrees. It provides a starting torque of up to 12 Nm and a nominal torque of 2 Nm. Designed for flexibility, it works well in both single-arm and pantograph-arm applications. It also features an automatic parking function and is available in various configurations to meet different operational needs, 1 or 2 speed and 12 or 24V.
