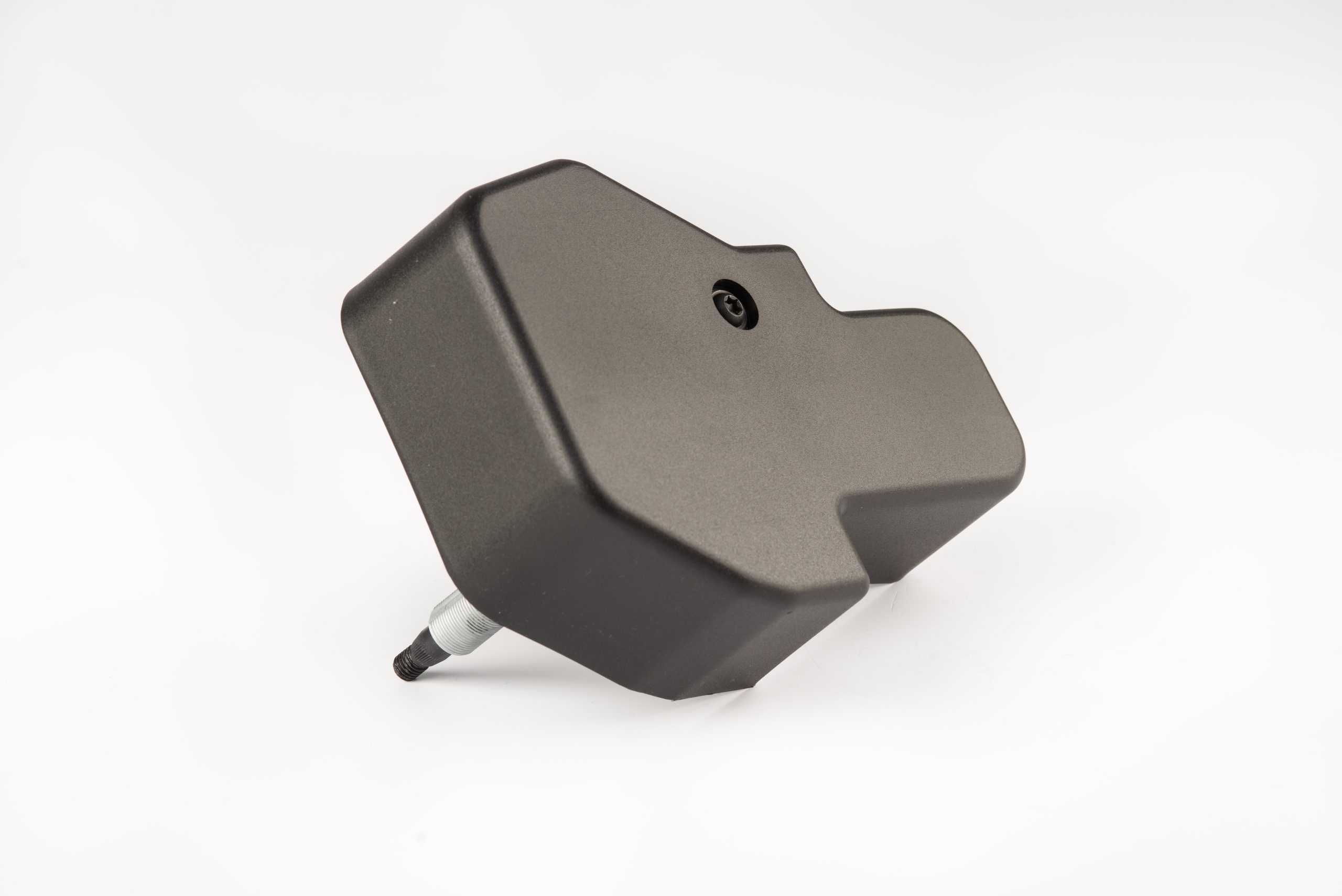

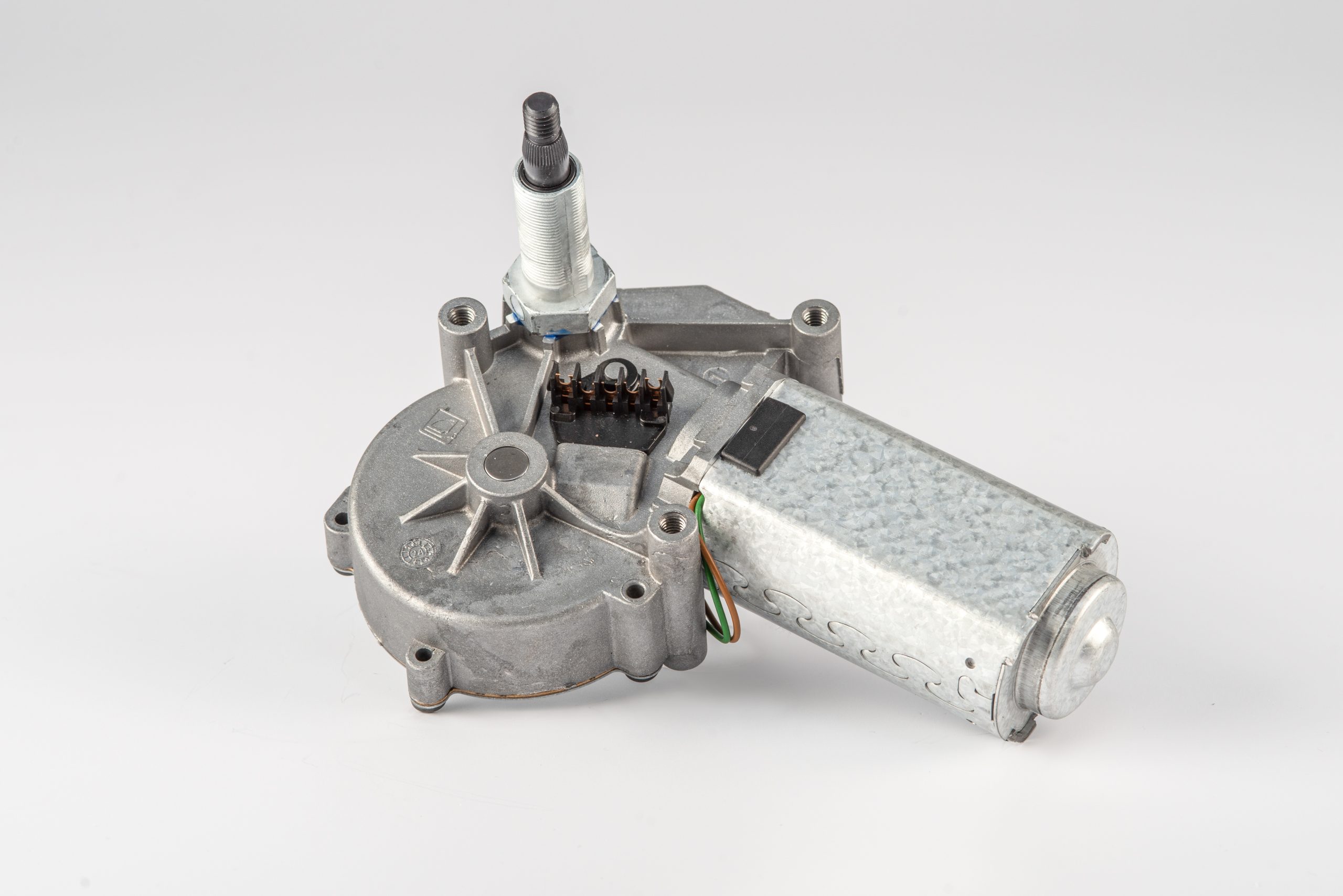

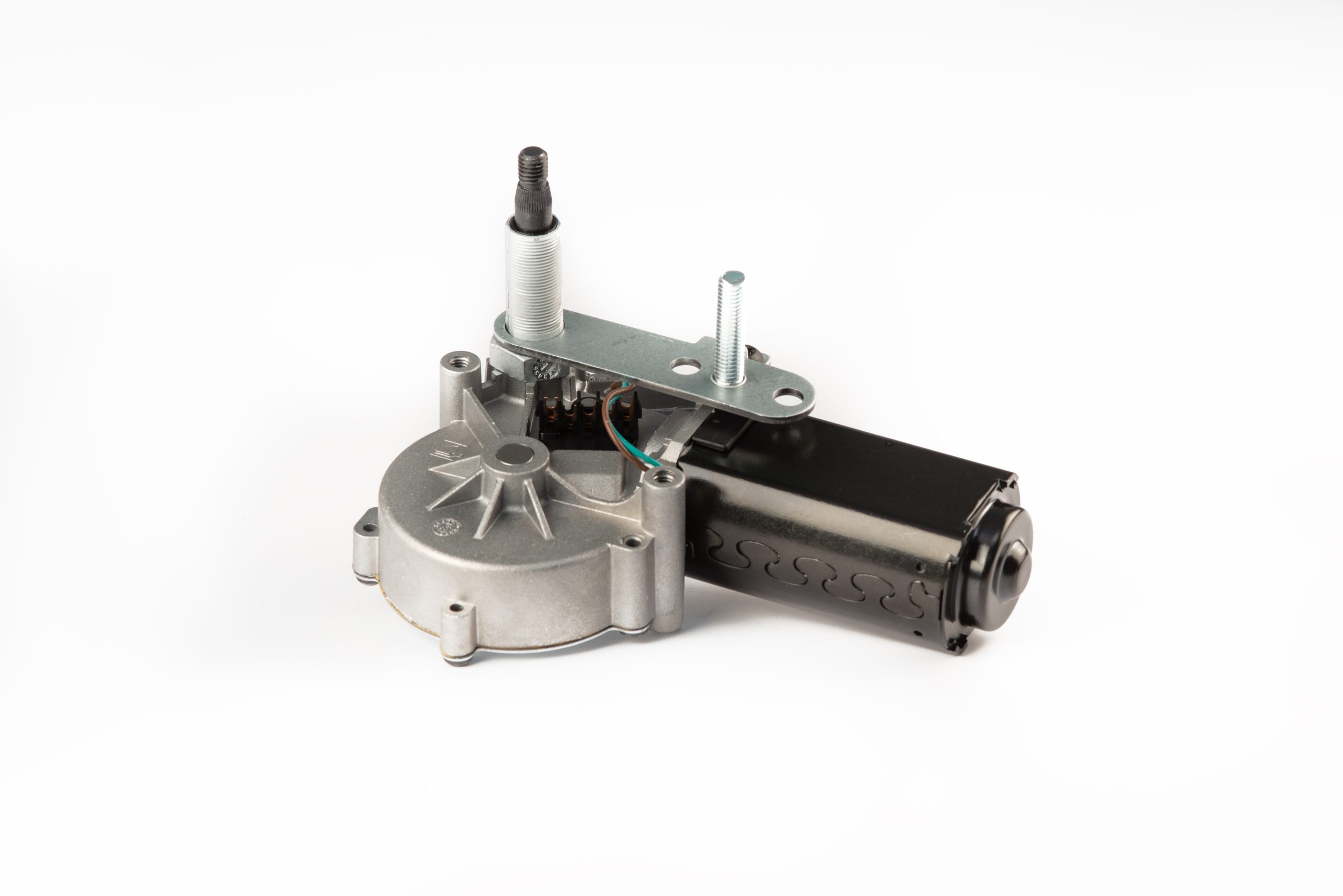

ITG35 DC gearmotor with oscillating output shaft
| Family | M64 | M68 | M67 | M69 |
| Nominal voltage (V) | 12 | 24 | 12 | 24 |
| Number of speed | 1 | 1 | 2 | 2 |
| Test voltage (V) | 13 | 26 | 13 | 26 |
| Nominal power (W) | 39 | 31 | 39/45.5 | 31/39 |
| Nominal current (A) | 3 | 1.2 | 3/3.5 | 1.2/1.5 |
| Maximum current (A) | 15 | 9 | 15/17 | 9/10 |
| Nominal Speed (rpm) | 36 | 38 | 36/46 | 38/48 |
| Nominal Torque (Nm) | 3 | 3 | 3/2 | 3/2 |
| Starting Torque (Nm) | 14 | 14 | 14/12 | 14/12 |
| Service mode | continuous | continuous | continuous | continuous |
| Protection | IP00/IP40/IP44 | IP00/IP40/IP44 | IP00/IP40/IP44 | IP00/IP40/IP44 |
| Weight (kg) | 1 | 1 | 1 | 1 |
6
βλέπουν αυτό το προϊόν τώρα!
Περιγραφή
The ITG35 motor is equipped with an internal mechanism that allows it to cover cleaning angles between 48 and 175 degrees. It provides a starting torque of up to 14 Nm and a nominal torque of 3 Nm. Designed for flexibility, it works well in both single-arm and pantograph-arm applications. It also features an automatic parking function and is available in various configurations to meet different operational needs, 1 or 2 speed and 12 or 24V.
