ITG31 DC gearmotor

Family M49 M47 M50 M48
Nominal voltage (V) 12 24 12 24
Number of speed 1 1 2 2
Test voltage (V) 13 26 13 26
Nominal power (W) 32.5 31 32.5/49.4 31/46.8
Nominal current (A) 2.5 1.2 2.5/3.8 1.2/1.8
Maximum current (A) 18 10 18/21 10/12
Nominal Speed (rpm) 37 37 37/57 37/58
Nominal Torque (Nm) 4 4 4 4
Starting Torque (Nm) 26 30 26/20 30/27
Service mode continuous continuous continuous continuous
Protection IP00/IP40 IP00/IP40 IP00/IP40 IP00/IP40
Weight (kg) 1.1 1.1 1.1 1.1
4 βλέπουν αυτό το προϊόν τώρα!
Κωδικός προϊόντος: ITG31 DC gearmotor Κατηγορία:
Περιγραφή

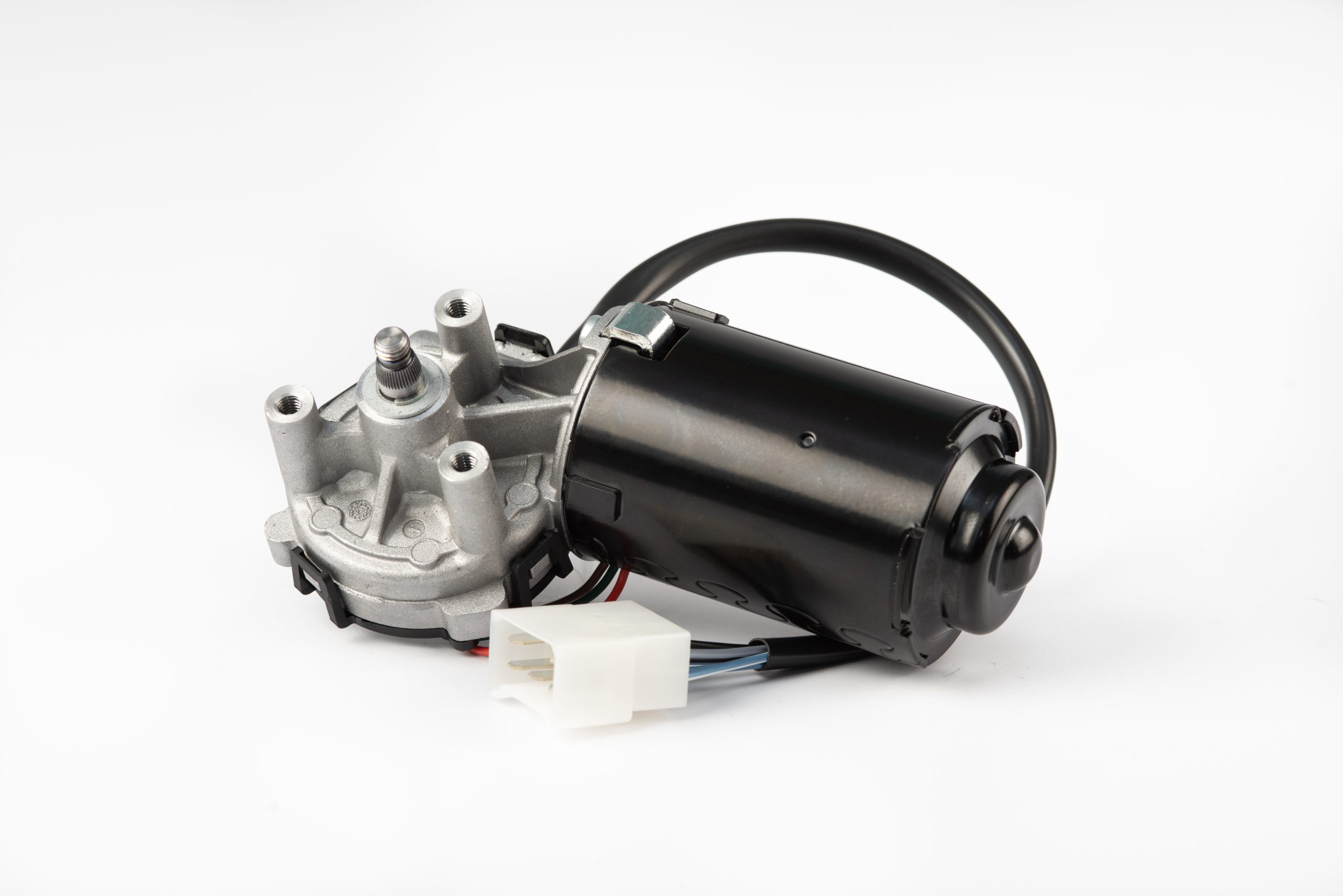

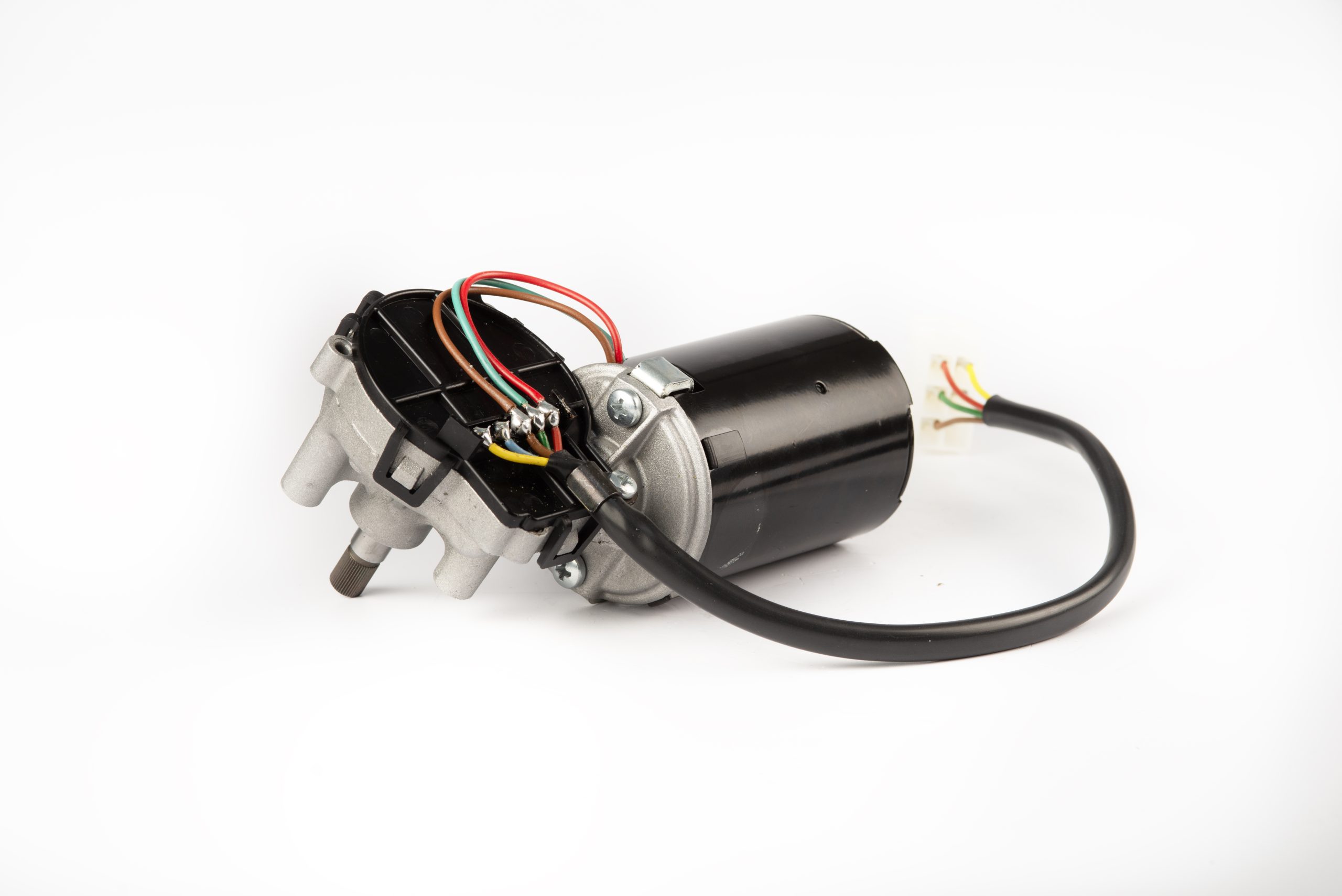

The ITG31 gear motor is a compact and versatile solution designed to meet the demands of industrial applications and automation. It delivers a starting torque of up to 26 Nm and a nominal torque of 4 Nm, ensuring reliable performance even under varying load conditions. Available in single or dual-speed configurations and compatible with 12V or 24V power supply, the ITG31 adapts to a wide range of operational needs. Additionally, a variety of output shafts can be selected for greater installation flexibility. Available in single or dual-speed configurations and compatible with 12V or 24V power supply, the ITG31 adapts to a wide range of operational needs. Additionally, a variety of output shafts can be selected for greater installation flexibility.

Επιπλέον πληροφορίες
Βάρος2 κ.
Διαστάσεις530 × 540 × 5 mm
