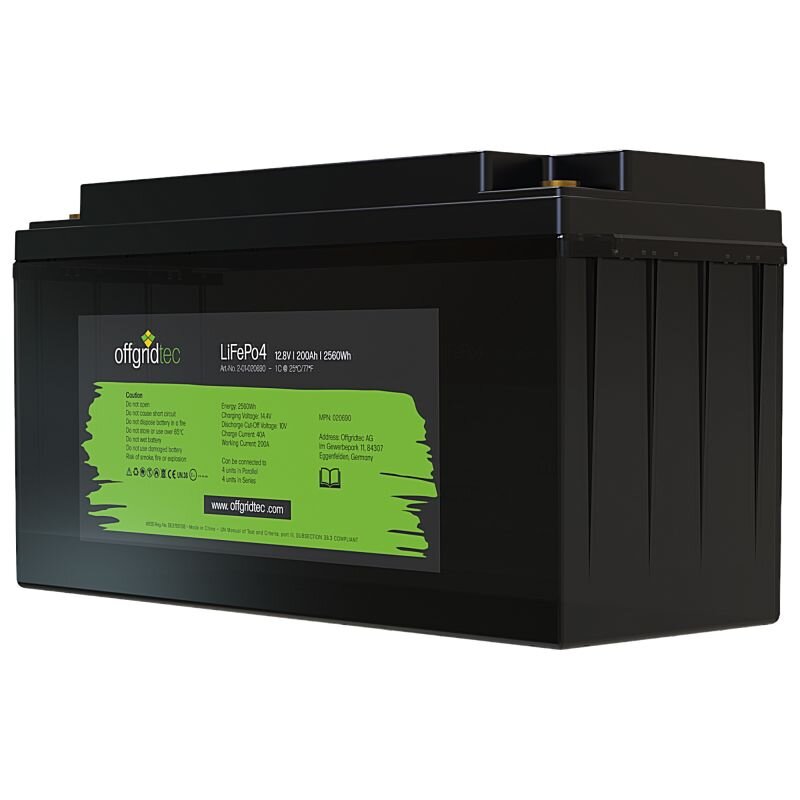

Offgridtec LiFePo4 battery 12/200 12.8V 200Ah BMS integrated 2560Wh

The LiFePO4 battery 12/200 from Offgridtec (MPN 020690) is a state-of-the-art and efficient energy storage solution. With a capacity of 200Ah and a nominal voltage of 12.8V, it guarantees both safety and outstanding performance. Thanks to its compact and maintenance-free design, the battery is easy to install and can be flexibly integrated into individual energy storage systems via parallel connection. Equipped with an integrated battery management system (BMS), the battery is protected against overcharging, deep discharge, short circuits, and overheating. This not only extends the service life, but also increases safety during operation. The powerful battery impresses with a service life of up to 5000 charging cycles, so you can benefit from a reliable power supply for a long time.

The LiFePO4 12/200 battery at a glance
Integrated BMS with numerous protective devices
Long service life: 5000 cycles
UPS, emergency power supply
Low weight
Higher performance
Superior safety
Increased flexibility
Up to 4 in parallel connection
Fast charging, 98% high power density
Multitalented – flexible with lithium technology from Offgridtec
Despite their higher purchase price compared to AGM or gel batteries, Offgridtec’s LiFePO4 batteries offer excellent value for money. With a service life of up to 5000 charging cycles, they generally significantly exceed the maximum service life of the best lead-acid batteries. The LiFePO4 with a nominal voltage of 12.8V and a nominal capacity of 200Ah impresses with its space-saving design and a weight of only 19.6 kg, which represents a weight reduction of around 70% compared to conventional batteries. The energy extraction efficiency is an impressive 92%, which is significantly higher than the 80% achieved by lead-acid batteries. This aspect can be particularly important in off-grid systems, especially in grid-independent solar or wind power systems.

Integrated BMS
LiFePO4 offers automatic protection through its internal battery management system. The lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to strong shocks, overcharging, or short circuits.By precisely controlling these parameters, the BMS ensures optimal battery usage and extends battery life.

Overvoltage protection
Undervoltage protection
Overload protection
Short circuit protection
Protection of cells against excessive or insufficient temperatures
Areas of application
Renewable energy systems, such as photovoltaic and solar systems
Vehicles, such as motorhomes, caravans, and campers
Marine applications, such as fishing boats and electric boats
Uninterruptible power supply (UPS) for emergencies
Parallel connection
The parallel connection of our LiFePO4 batteries offers you increased flexibility. With the modular design, you can use up to four batteries in series and four in parallel for the 12.8V versions. This allows you to easily adjust the capacity and performance of your system.

LiFePO4 technology
A LiFePO4 battery stands for “lithium iron phosphate battery” and is a type of lithium-ion battery. It is characterized by a specific chemical composition in which lithium iron phosphate is used as the cathode material. The batteries can undergo thousands of charging cycles, resulting in a longer overall service life compared to other battery types. They are considered safer than some other lithium-ion batteries because they are less prone to overheating or thermal instability. They also offer consistent voltage and power throughout most of their discharge cycle, a high discharge rate, and low weight.

Advantages of Offgridtec LiFePO4 over conventional batteries
Longer cycle life: Up to 20 times longer in cycle and 5 times longer in standby compared to lead-acid batteries
Low weight: Up to 40% lighter than comparable lead-acid batteries
Higher performance: Twice the performance of a lead-acid battery at high discharge rates
Low self-discharge: Delivers twice the power of a lead-acid battery, even at high discharge rates
Highly efficient: 92% energy utilization compared to 80% for lead-acid batteries
Improved safety features: Integrated BMS protects against overcharging, deep discharge, and short circuits; IP65-rated enclosure
