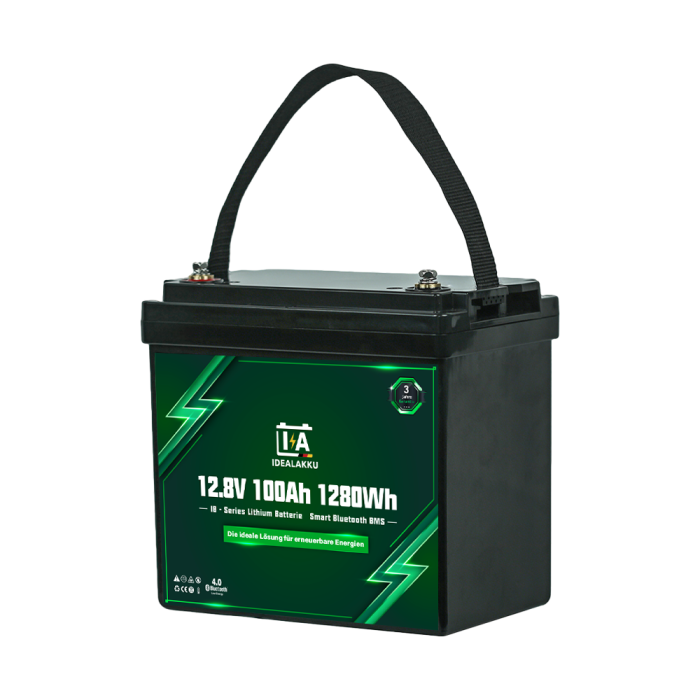

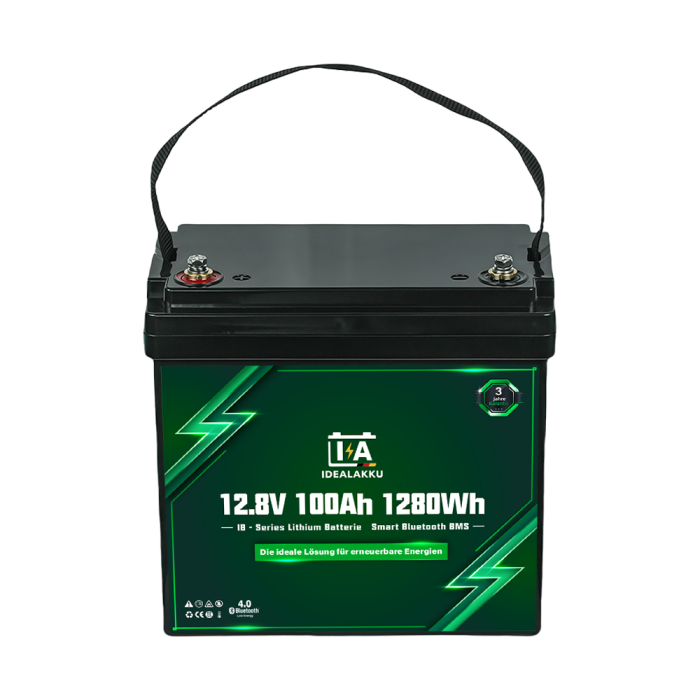

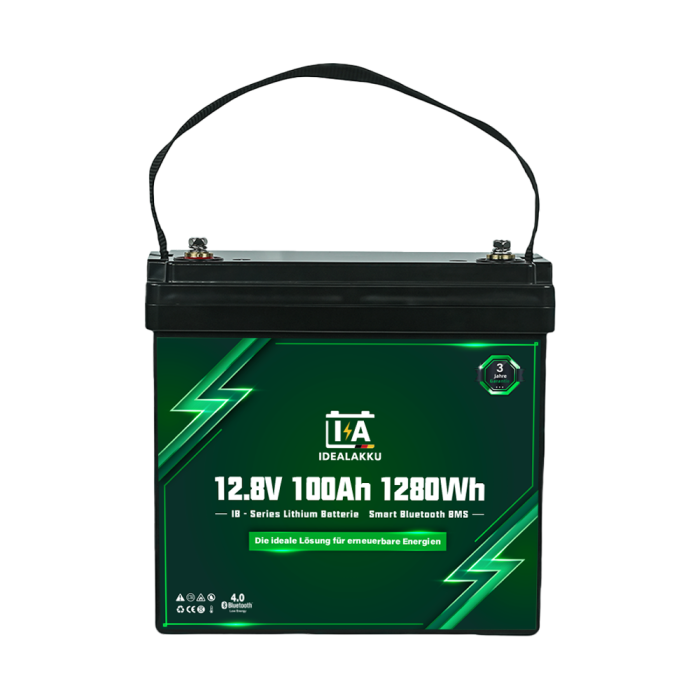

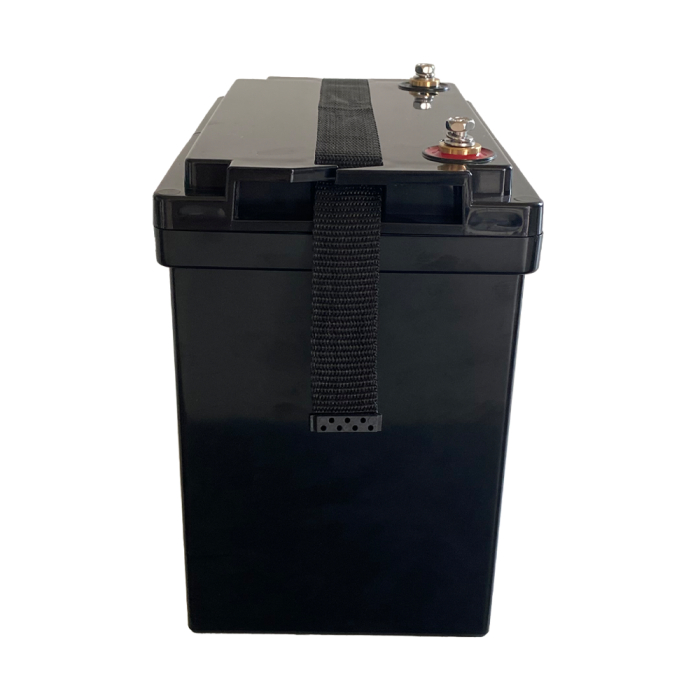

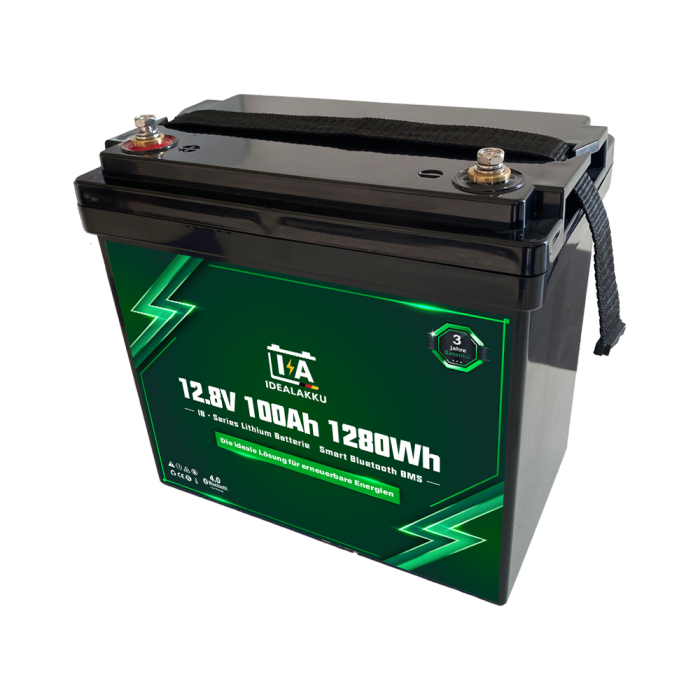

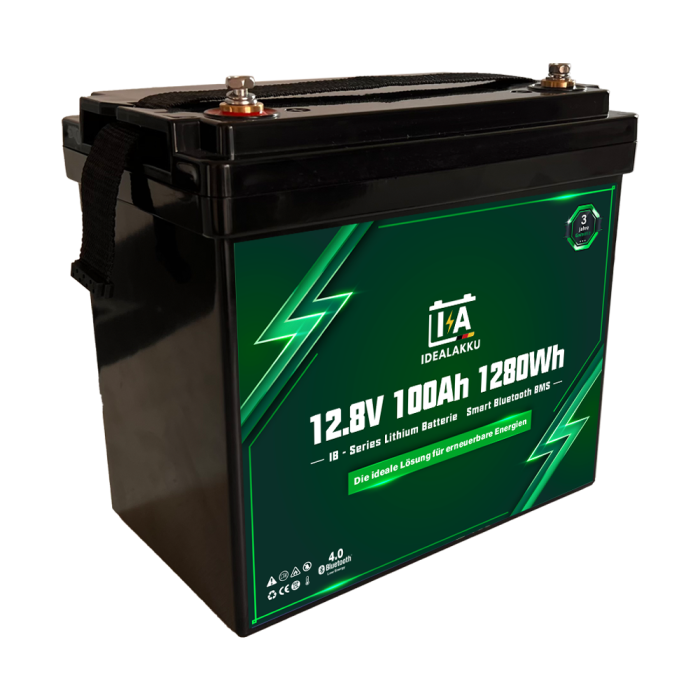

Lithium Battery 12.8V 100Ah LiFePO4 Smart BMS With Bluetooth
379,00€
–3-year manufacturer warranty
– The safest technology , without risk of fire or explosion
– A long lifespan
– Constantly improving storage capacity
– High stability even under extreme loads
– No memory effect , no need for full charge and discharge cycles
– High performance even in extreme conditions
– Deep and regular discharge and charge efficiency
– Small size and light weight
Διαθέσιμο κατόπιν παραγγελίας
Model 12.8V 100Ah/1280Wh
Replaces lead-gel-AGM battery 12.8V/200Ah
Cell type Prismatic cell
Dimensions with clamps (L x W x H) 228x145x208mm
Weight (without accessories) 9.15kg
Cyclical life >6000@80%DoD
Internal resistance ≤15 mΩ @ 50% SOC
Recommended charging voltage 14.6V
Trickle charging voltage (for standby
use) 13.8±0.8V
Recommended charging current 20A
Max. charging current 50A
Continuous discharge current 100A
Peak discharge cut-off current 450A (200~500ms)
Operating voltage range 10 – 14.6V
End of the discharge voltage range 10 – 11.2V

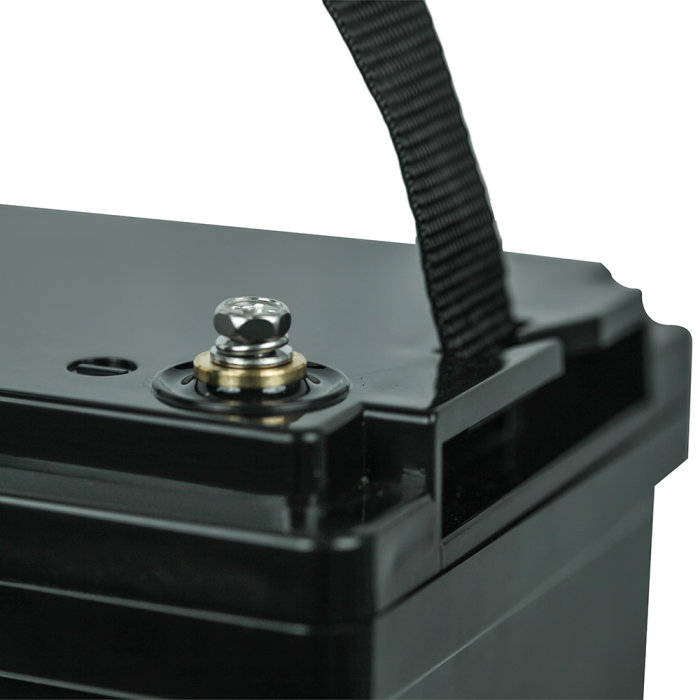

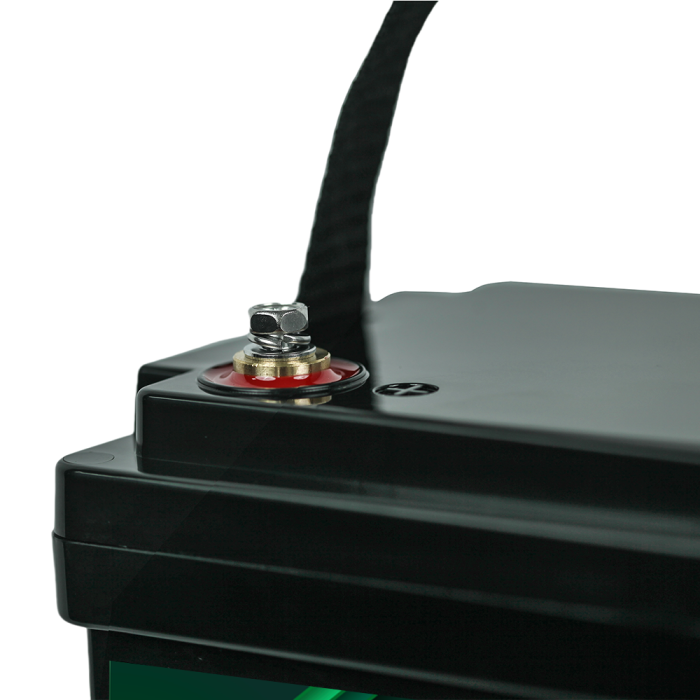

Terminal type M6 poles
Protection class IP65
Cargo temperature 0~50°C
Discharge temperature -20~75°C
Storage temperature -5~35°C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum 4 pieces in series and 4 pieces in
parallel
Certifications CE /UL /UN38.3 /MSDS /ROHS
UN 3480 /CLASS 9
