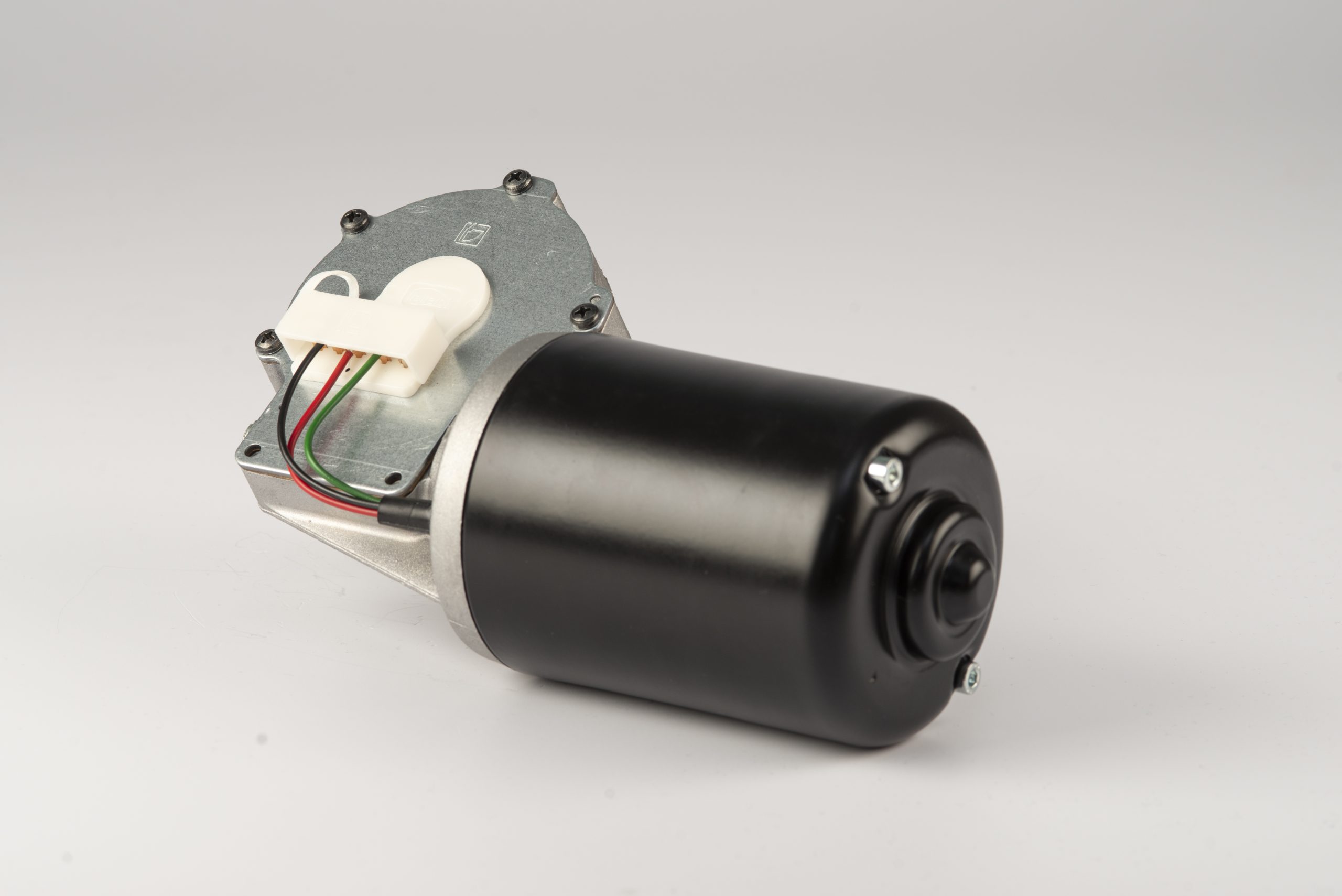

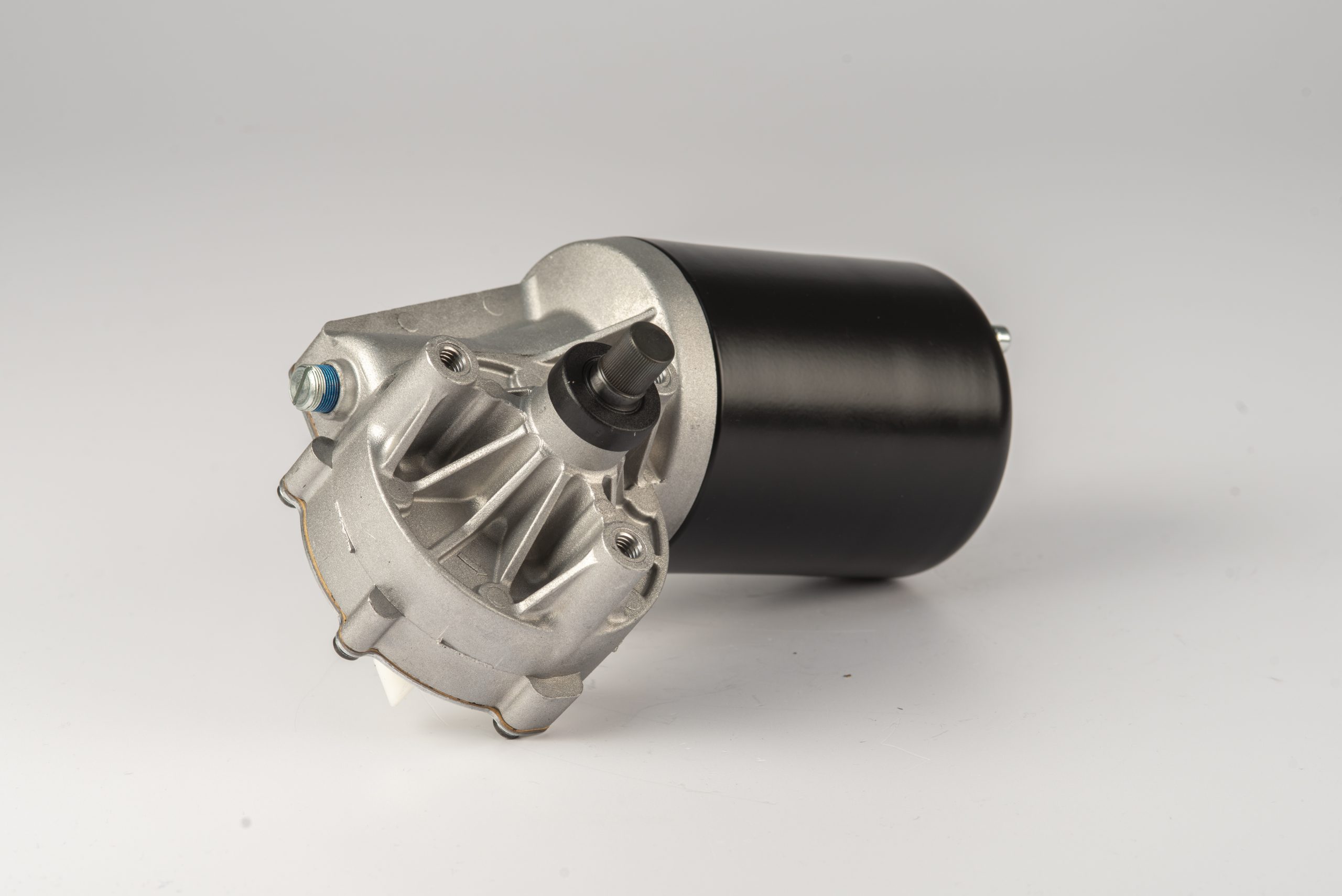

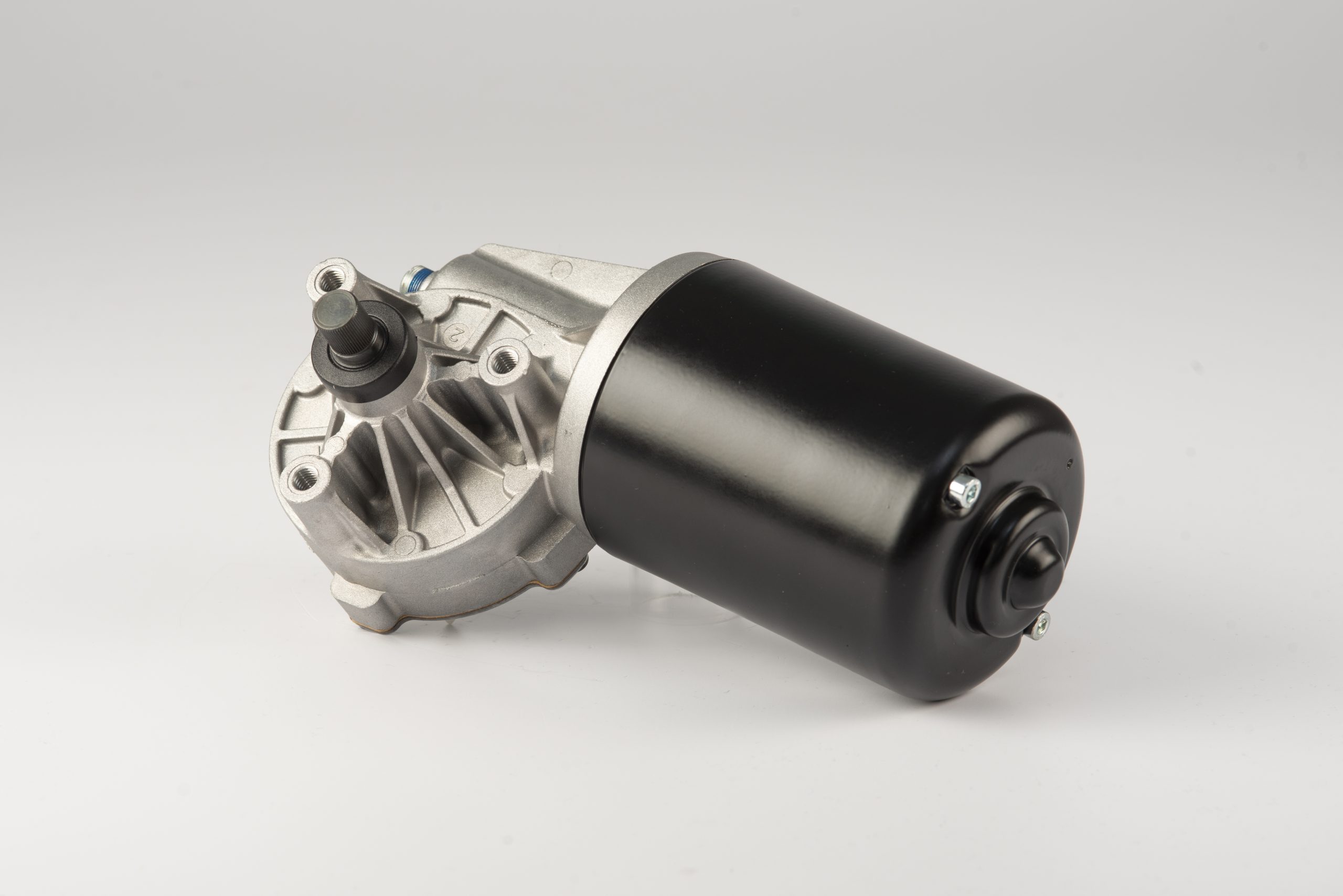

ITG90 DC gearmotor
| Family | M58 | M57 |
| Nominal voltage (V) | 12 | 24 |
| Number of speed | 1/2 | 1/2 |
| Test voltage (V) | 13 | 26 |
| Nominal power (W) | 91/91 | 81/86 |
| Nominal current (A) | 7/7 | 3/3.2 |
| Maximum current (A) | 38/46 | 25/29 |
| Nominal Speed (rpm) | 26/42 | 23/41 |
| Nominal Torque (Nm) | 12/6 | 12/6 |
| Starting Torque (Nm) | 58/48 | 80/70 |
| Service mode | continuous | continuous |
| Protection | IP10/IP44/IP45 | IP10/IP44/IP45 |
| Weight (kg) | 2.9 | 2.9 |
7
βλέπουν αυτό το προϊόν τώρα!
Περιγραφή
The ITG90 gear motor is designed to meet the demands of industrial applications and automation. It delivers a starting torque of up to 80 Nm and a nominal torque of 12 Nm, ensuring reliable performance even under varying load conditions. Available in single or dual-speed configurations and compatible with 12V or 24V power supply, the ITG90 adapts to a wide range of operational needs. Additionally, a variety of output shafts can be selected for greater installation flexibility. Available in single or dual-speed configurations and compatible with 12V or 24V power supply, the ITG90 adapts to a wide range of operational needs. Additionally, a variety of output shafts can be selected for greater installation flexibility.
