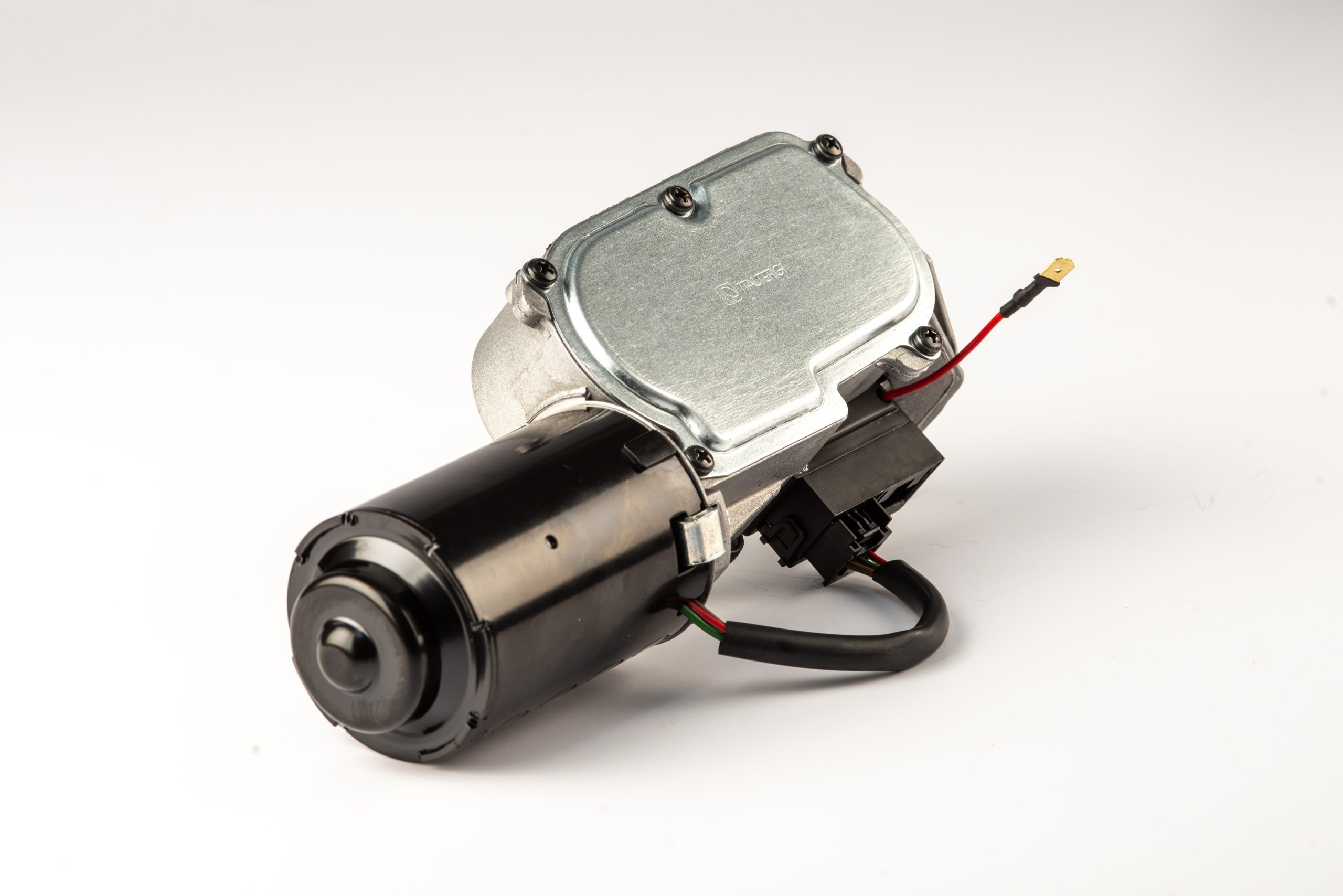

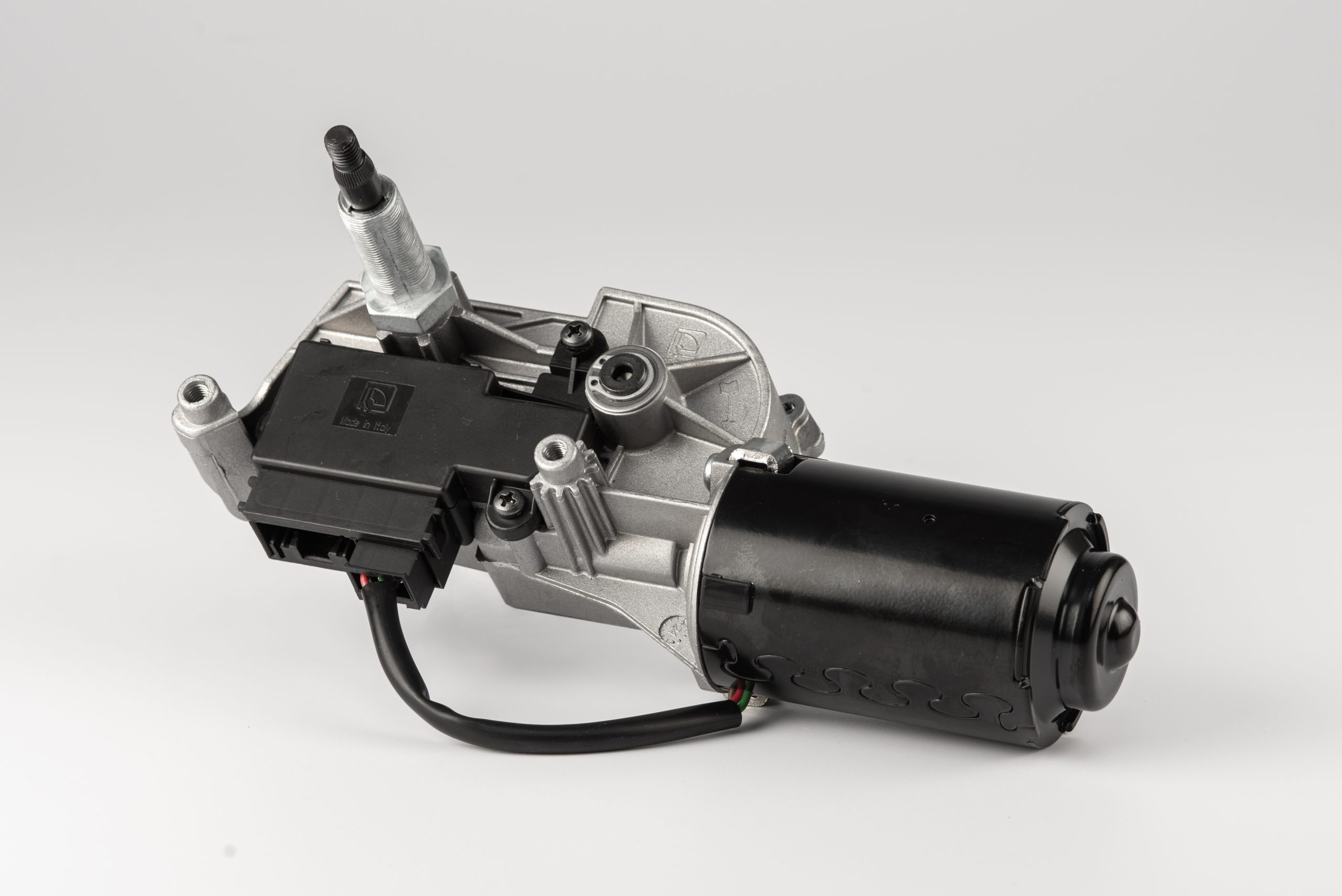

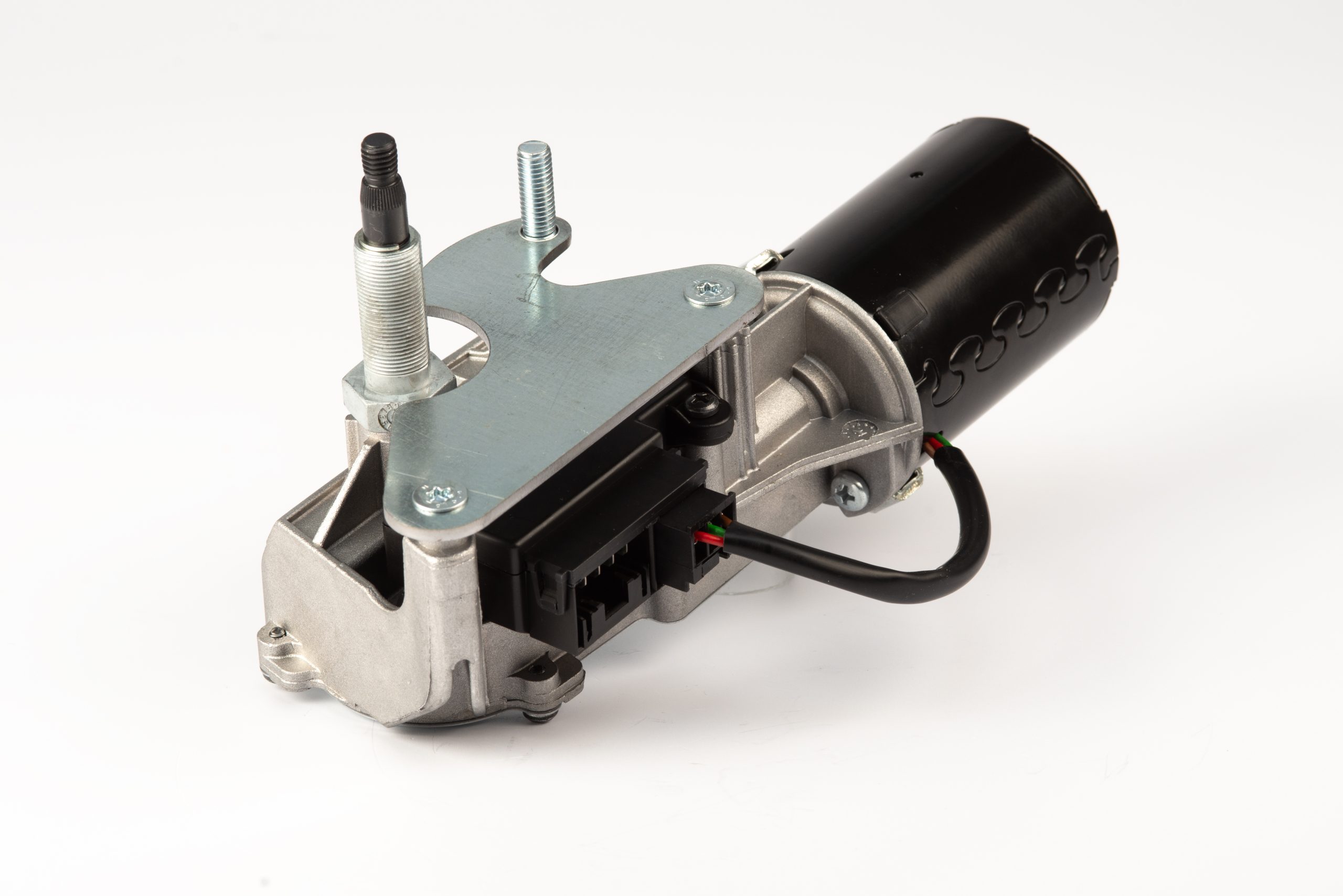

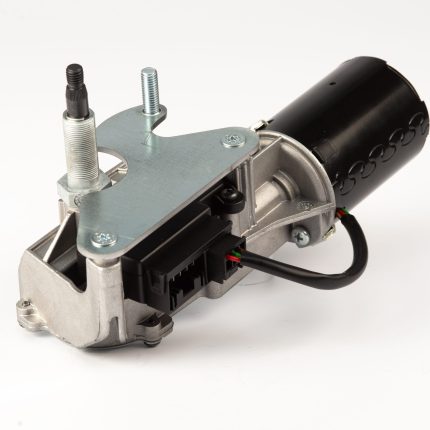

ITG60 DC gearmotor with oscillating output shaft
| Family | M46 | M44 | M45 | M43 |
| Nominal voltage (V) | 12 | 24 | 12 | 24 |
| Number of speed | 1 | 1 | 2 | 2 |
| Test voltage (V) | 13 | 26 | 13 | 26 |
| Nominal power (W) | 26 | 26 | 26/39 | 26/39 |
| Nominal current (A) | 2 | 1 | 2/3 | 1/1.5 |
| Maximum current (A) | 17 | 10 | 17/20 | 10/12 |
| Nominal Speed (rpm) | 40 | 38 | 40/58 | 38/60 |
| Nominal Torque (Nm) | 4 | 4 | 4/4 | 4/4 |
| Starting Torque (Nm) | 26 | 26 | 26/20 | 26/20 |
| Service mode | continuous | continuous | continuous | continuous |
| Protection | IP20/IP43 | IP20/IP43 | IP20/IP43 | IP20/IP43 |
| Weight (kg) | 1.4 | 1.4 | 1.4 | 1.4 |
7
βλέπουν αυτό το προϊόν τώρα!
Περιγραφή
The ITG60 motor is equipped with an internal mechanism that allows it to cover cleaning angles between 60 and 152 degrees. It provides a starting torque of up to 26 Nm and a nominal torque of 4 Nm. Designed for flexibility, it works well in both single-arm and pantograph-arm applications. It also features an automatic parking function and is available in various configurations to meet different operational needs, 1 or 2 speed and 12 or 24V.
Επιπλέον πληροφορίες
| Βάρος | 2 κ. |
|---|---|
| Διαστάσεις | 530 × 540 × 5 mm |
