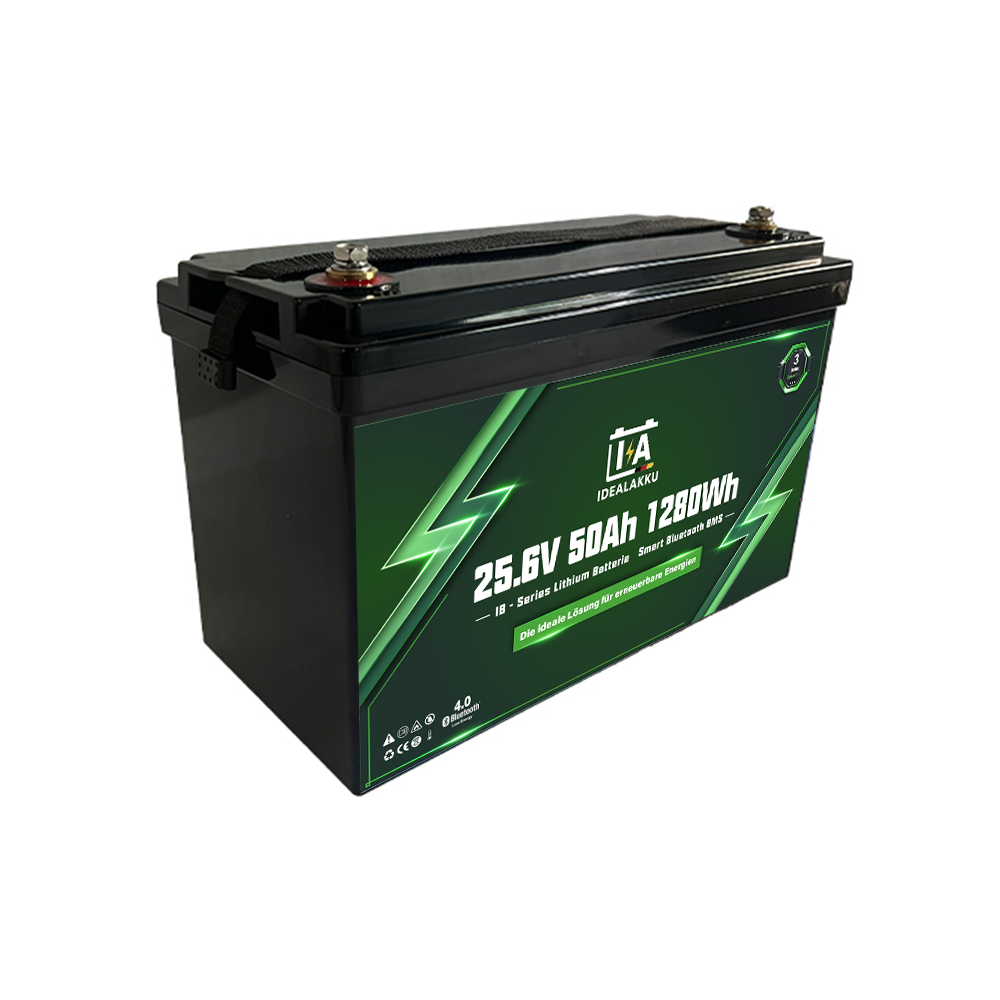

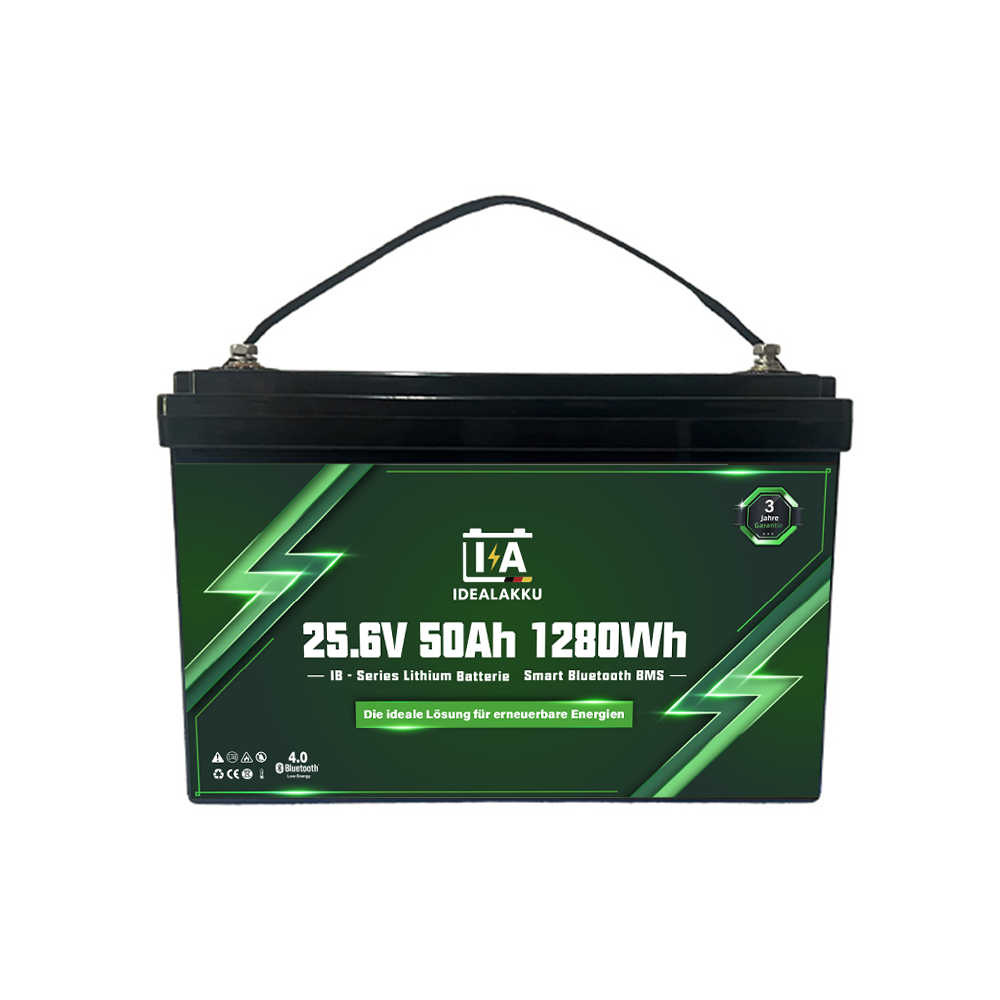

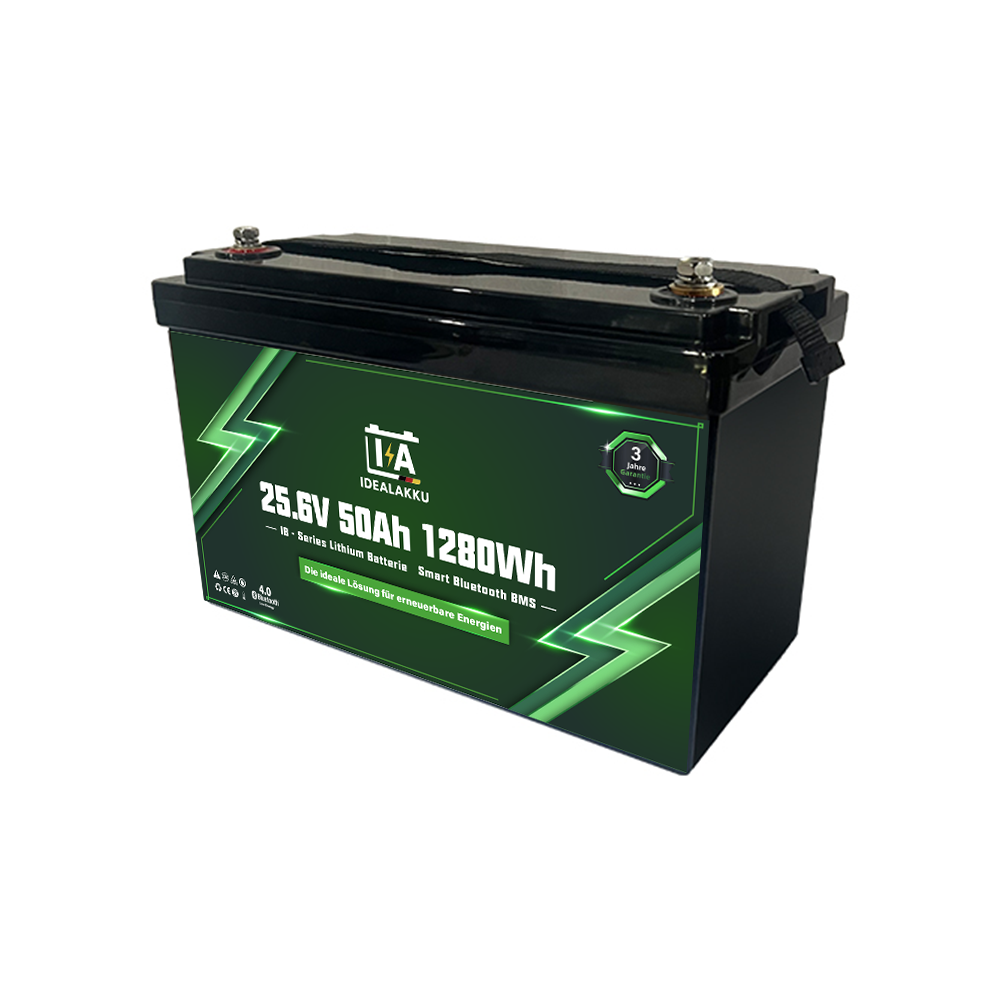

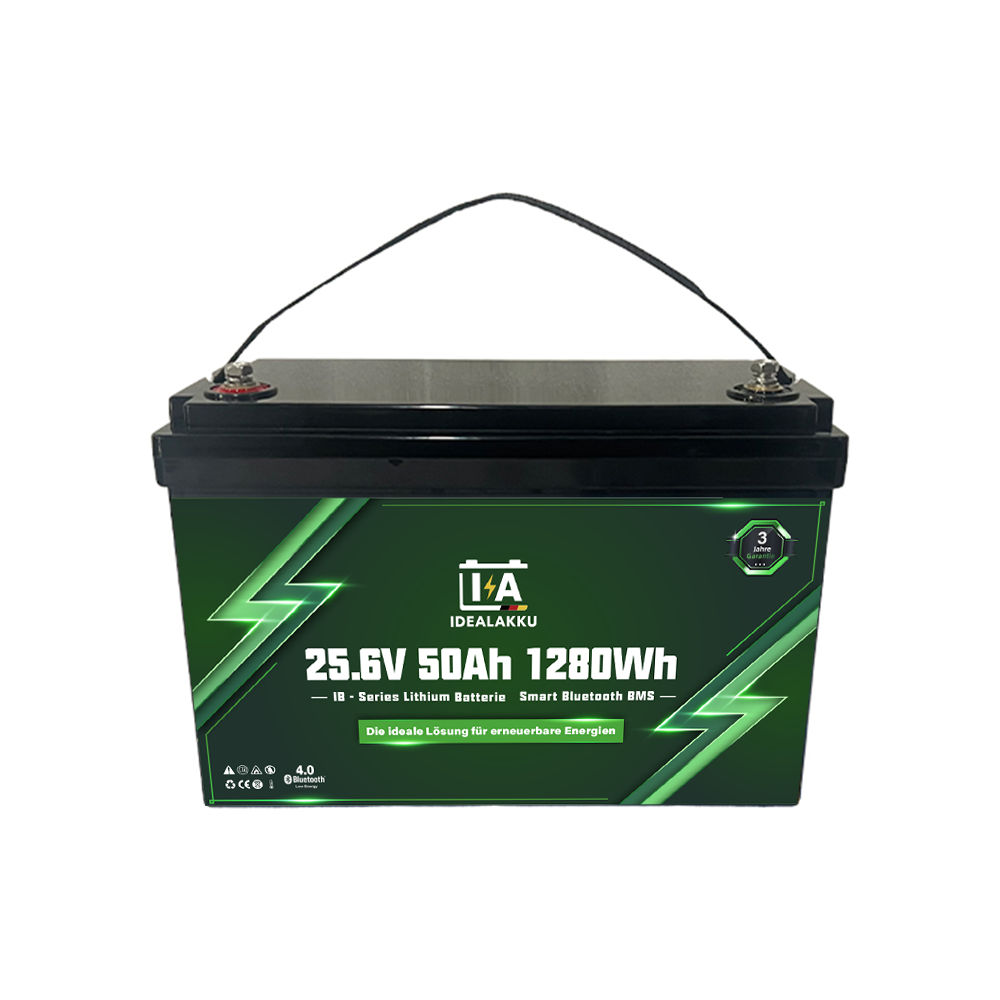

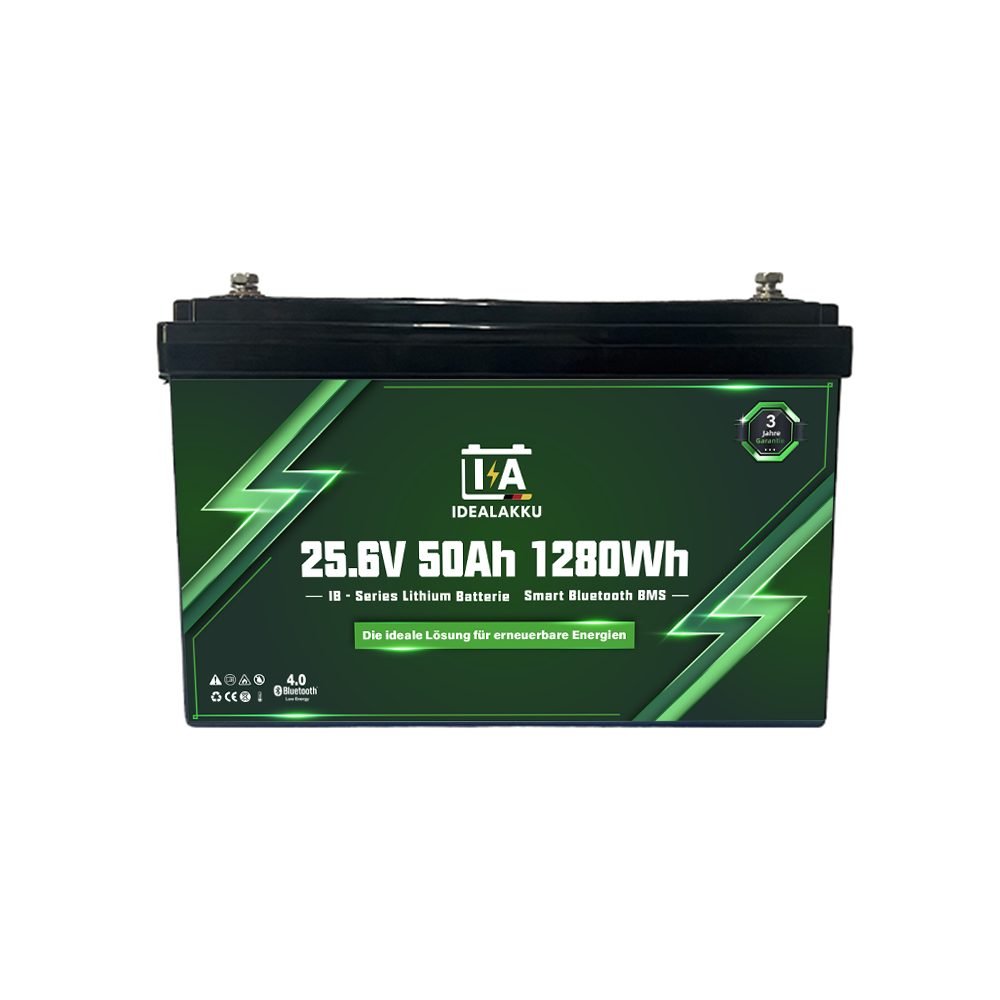

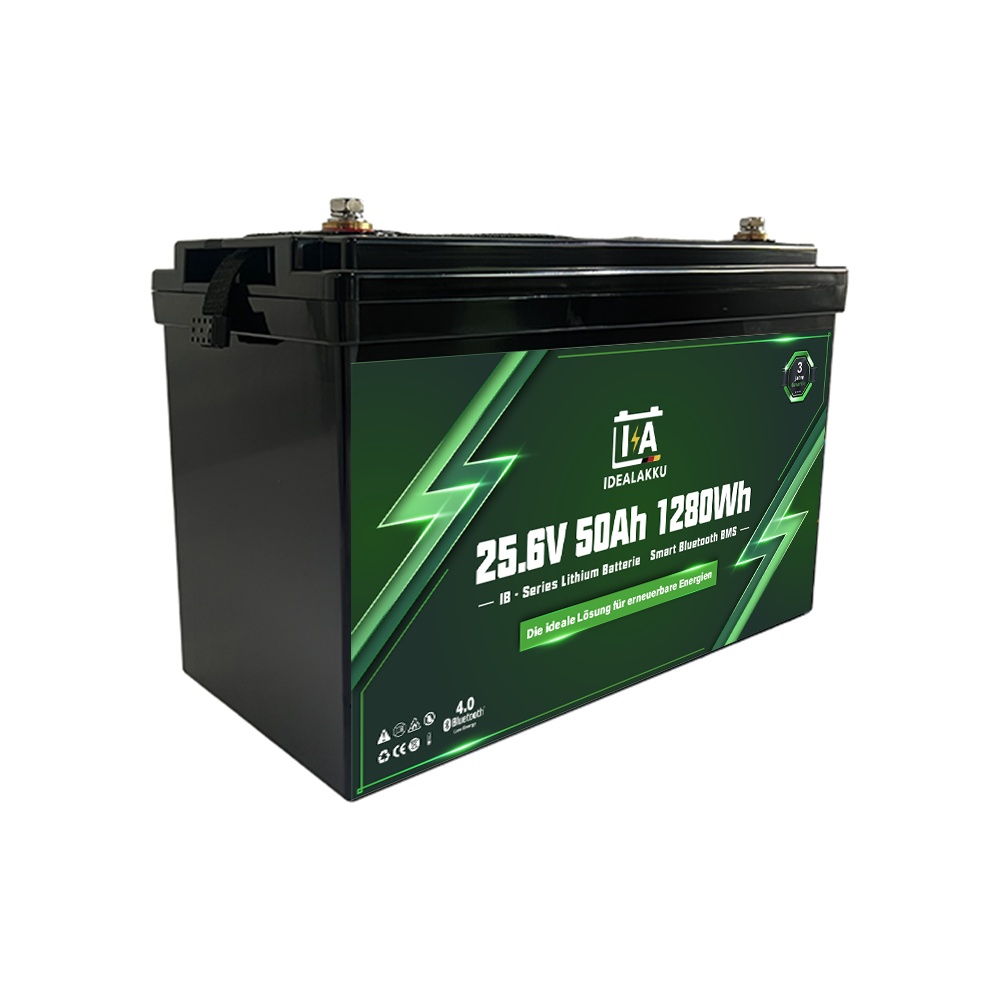

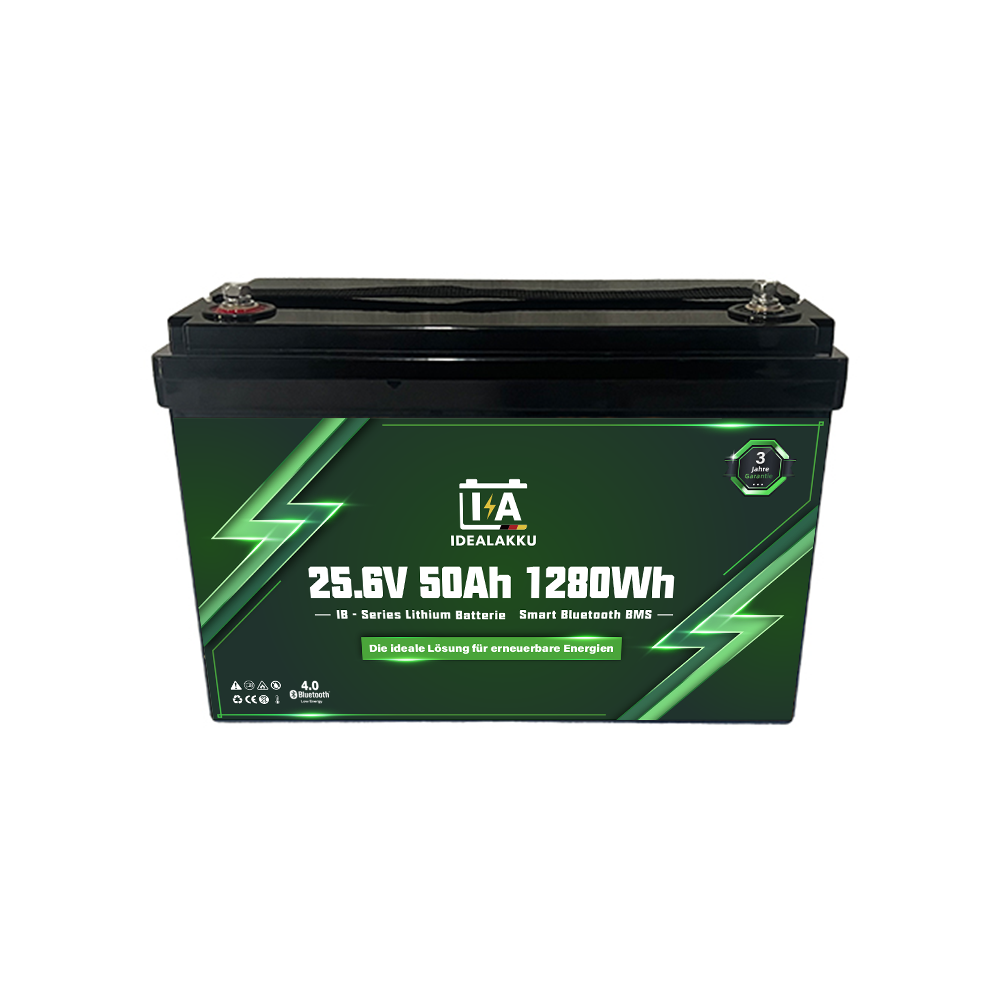

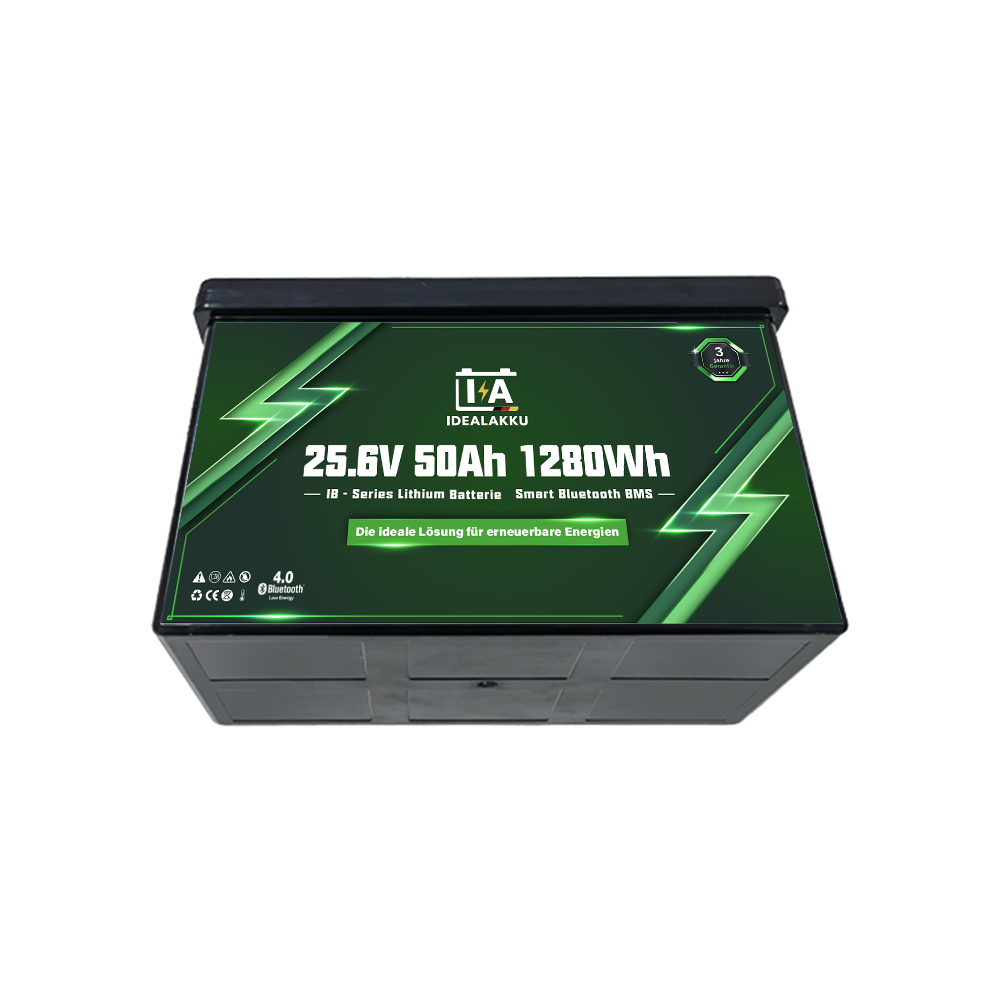

Idealakku IB-Series LiFePO4 battery 24 V 50 Ah with Smart-BMS and Bluetooth
- 3-year warranty: Reliable IdealAkku quality for motorhome, solar, boat and off-grid applications.
- Prismatic Grade-A cells: High energy density, stable LiFePO4 technology and long lifespan
- 80 A maximum continuous discharge current: Strong power reserve for inverters and demanding consumers
- Smart BMS with Bluetooth: App available in the Apple Store and on Google Play
- Compact & powerful: 11.1 kg | 330 x 172 x 215 mm
- Direct replacement: Replaces 25.6 V/100 Ah lead-acid gel AGM batteries at a significantly lower weight.
- Flexible application: Ideal for energy storage, solar, marine and high-performance DC systems
Model 25.6V 50Ah/1280Wh
Replaces lead-acid gel AGM battery 25.6 V/100 Ah
Cell type Prismatic cell
Dimensions including clamps (L x W x H) 330 x 172 x 215 mm
Weight (without accessories) 11.1 kg
menstrual cycle >6000@80%DoD
Internal resistance ≤7 mΩ
Recommended charging voltage 29.2 V
Maintenance charging voltage (standby) 27.2 V
Recommended charging current 15 A
Max. charging current 25 A
Continuous discharge current 80 A
Peak discharge cutoff current 150 A (200~500ms)
Operating voltage range 20 – 29.2 V
End of the discharge voltage range 20-22.4 V

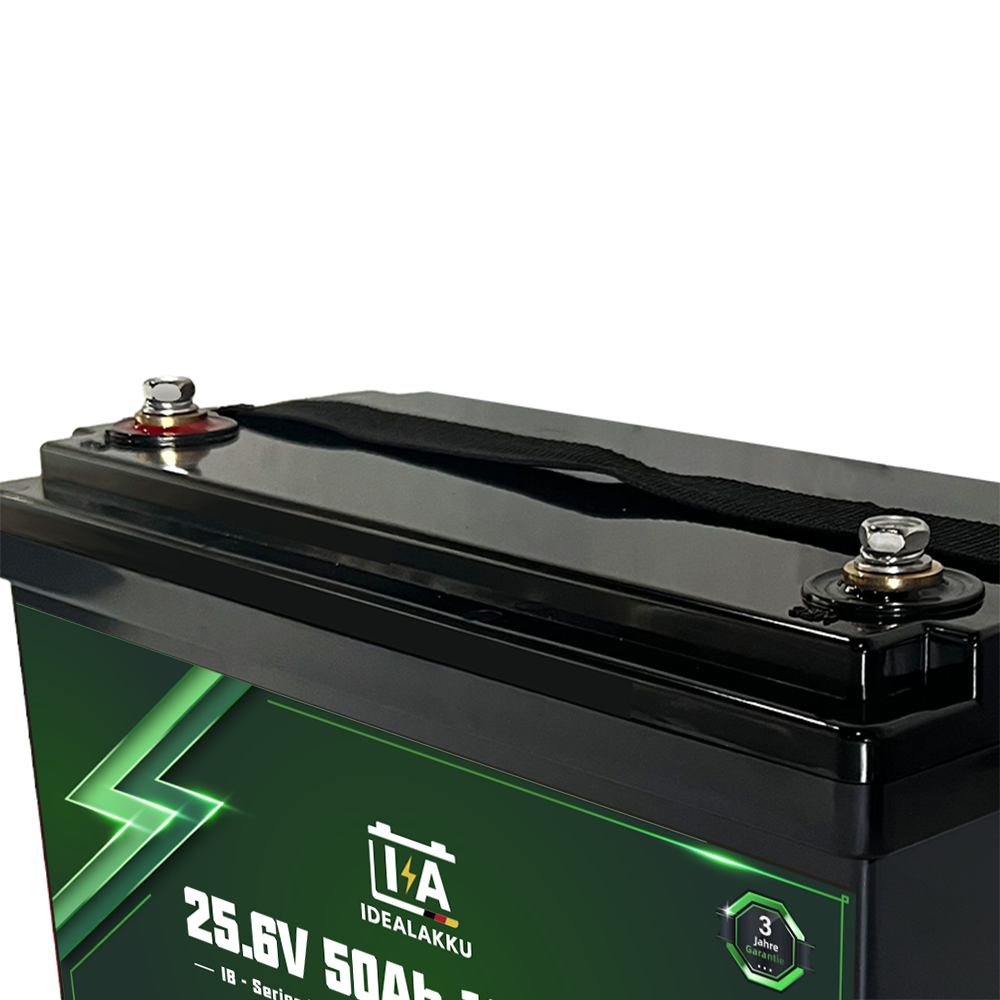

Terminal type M8
Protection class IP65
Charging temperature 0~50 °C
Discharge temperature -20~75 °C
Storage temperature -5 to 35 °C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum 2 pieces in series and 4 pieces in parallel connection
Certifications CE /UL /UN38.3 /MSDS /ROHS UN 3480 /CLASS 9
