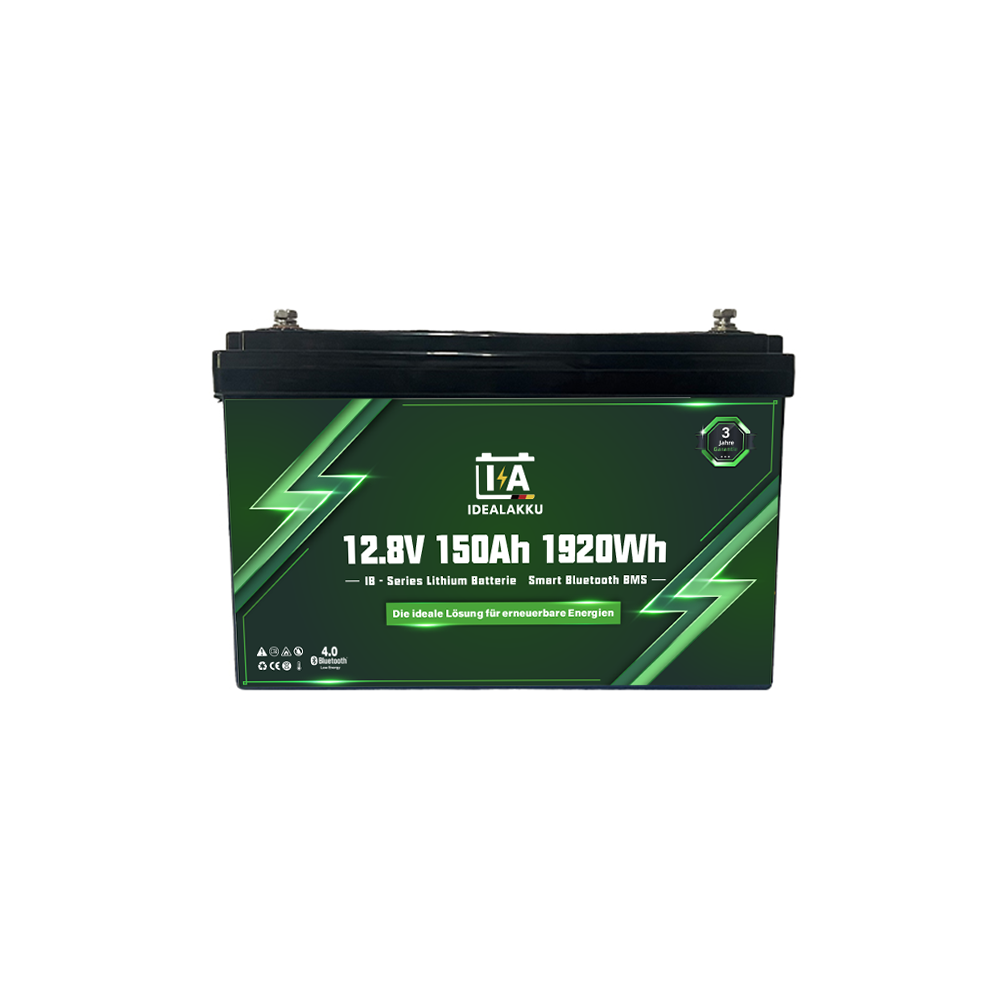

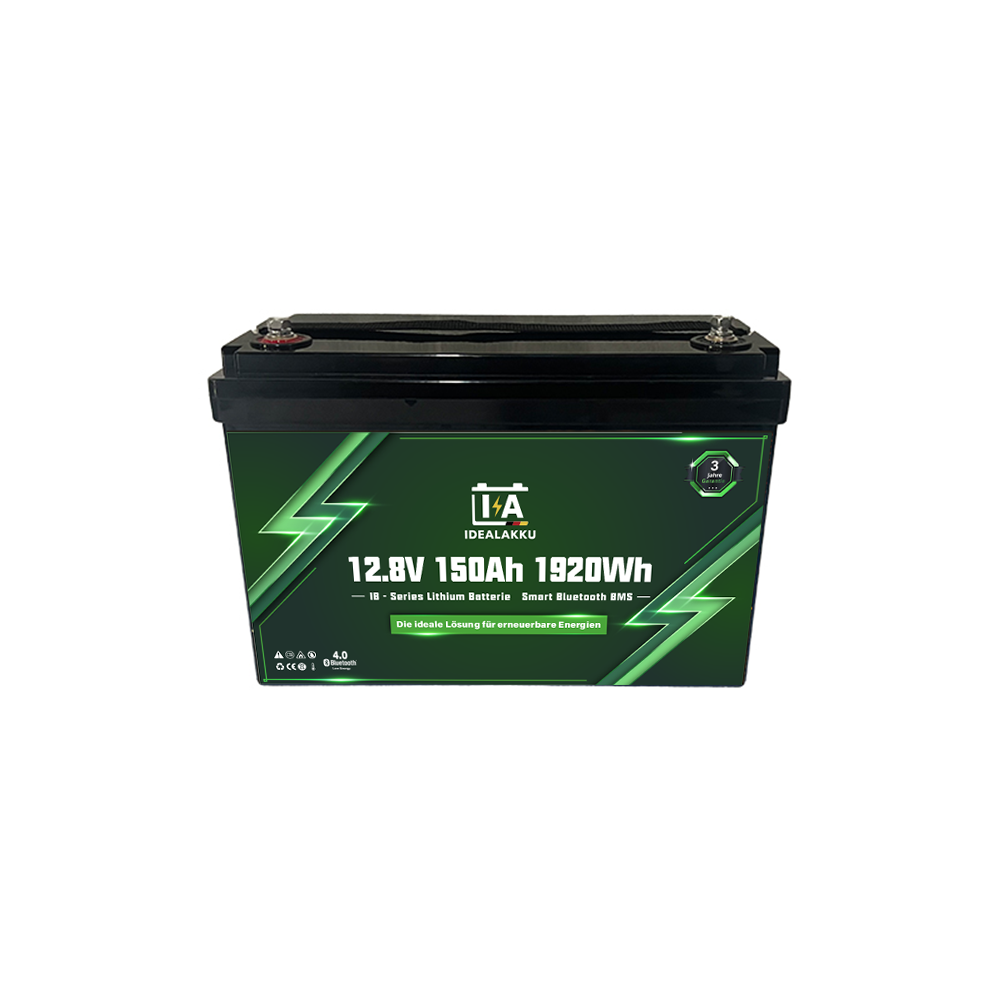

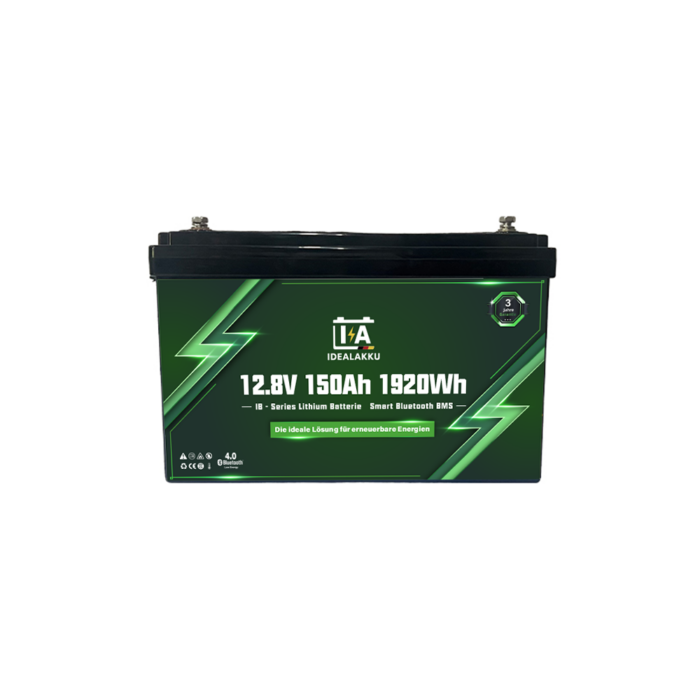

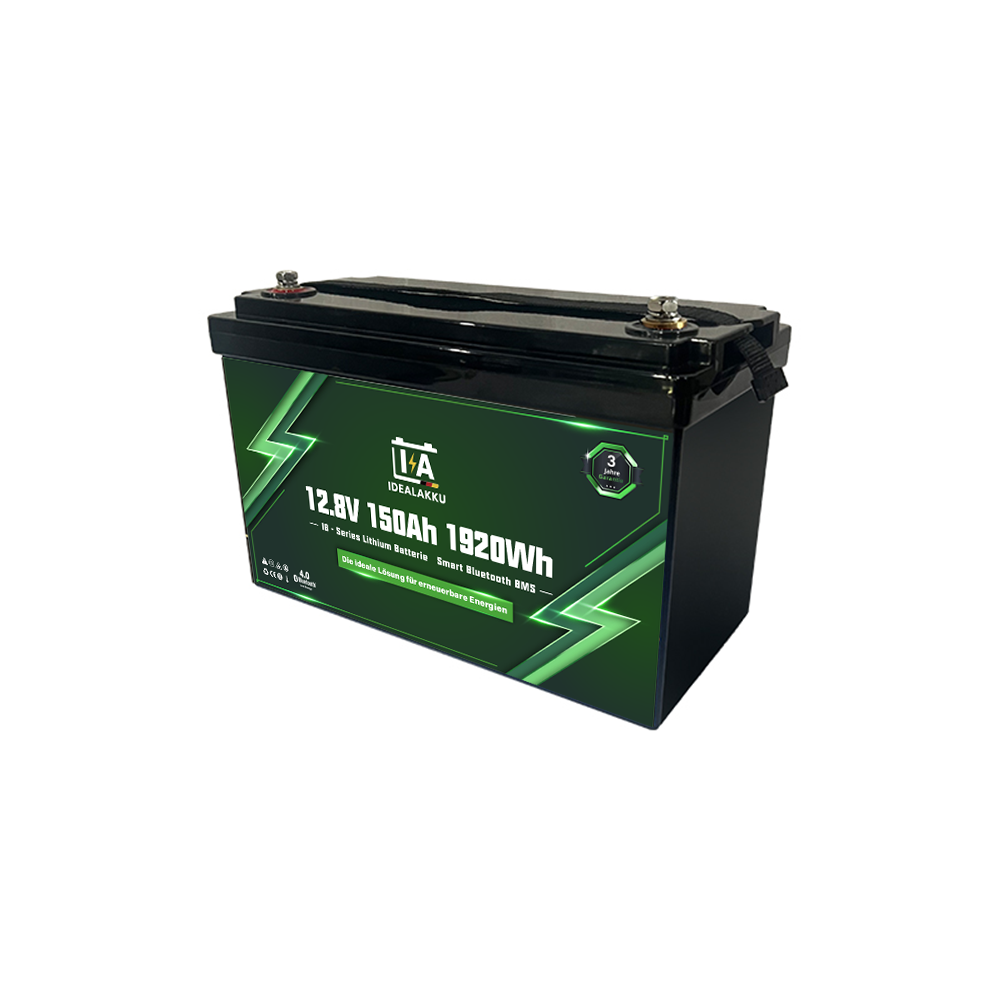

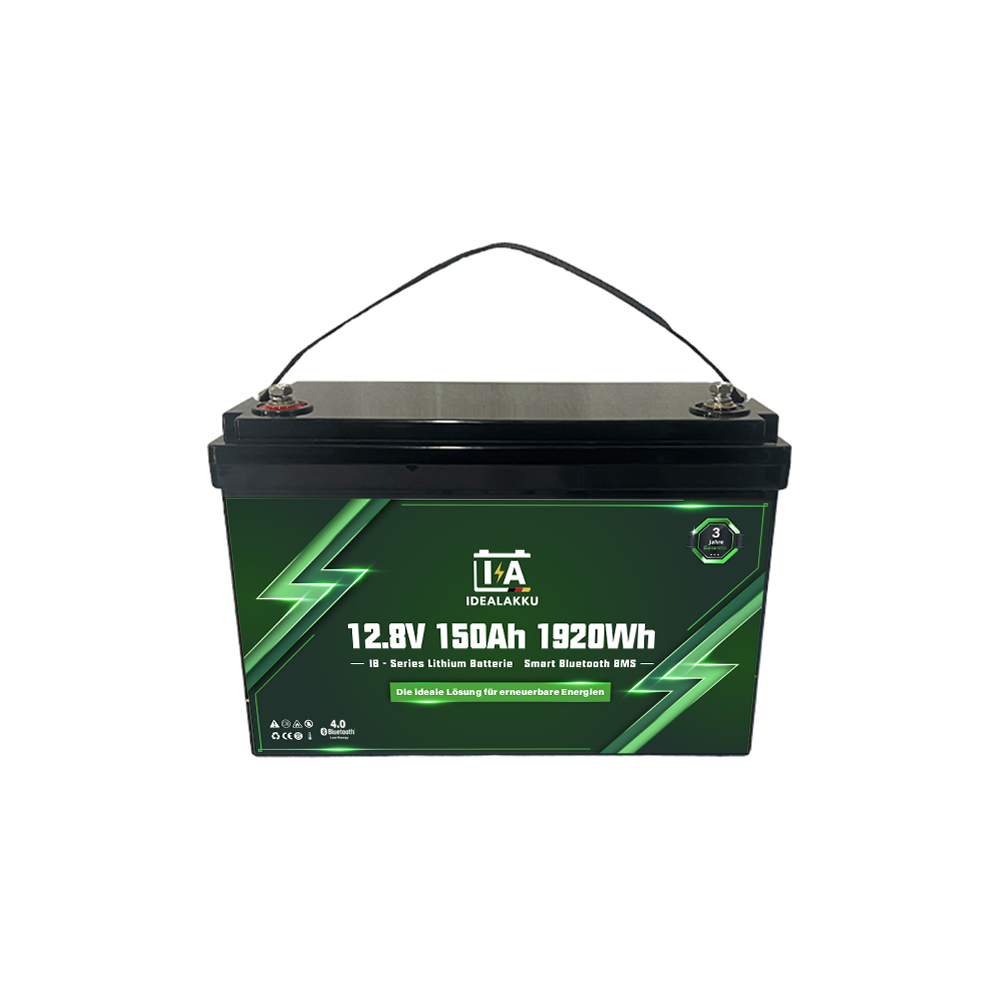

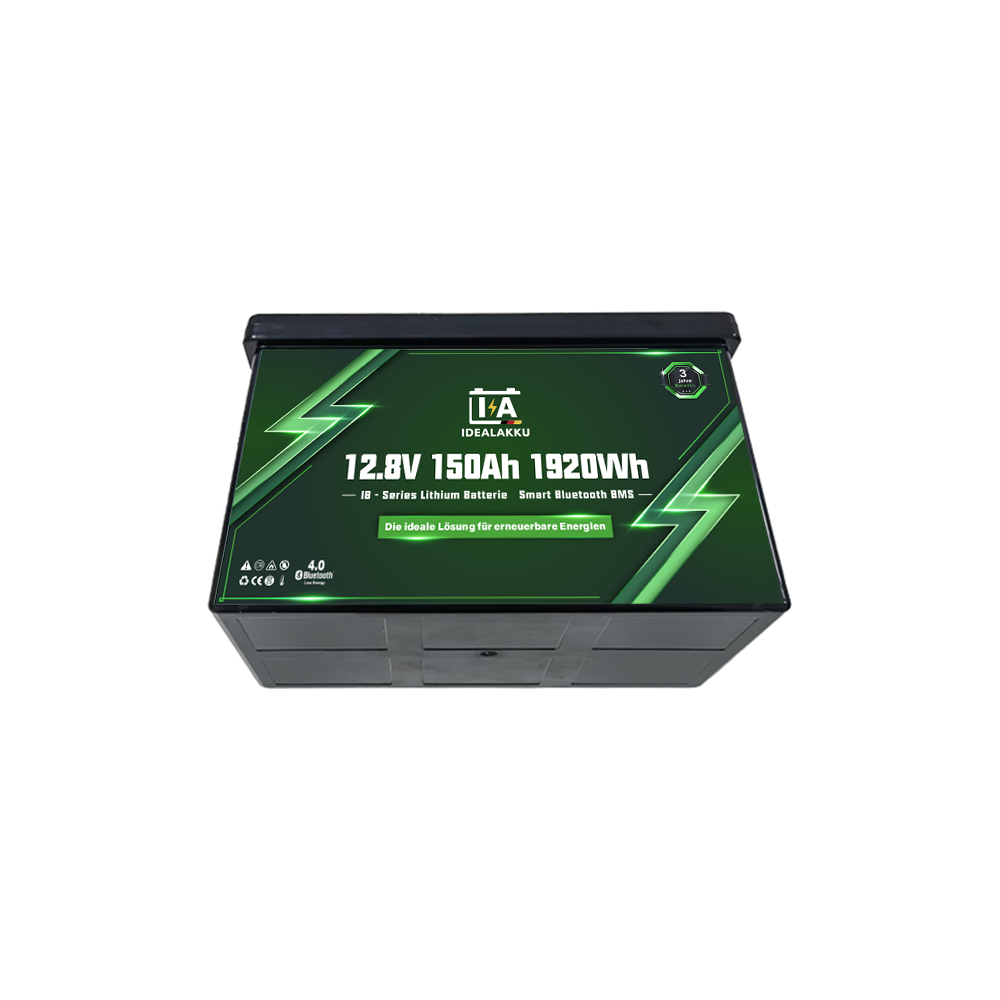

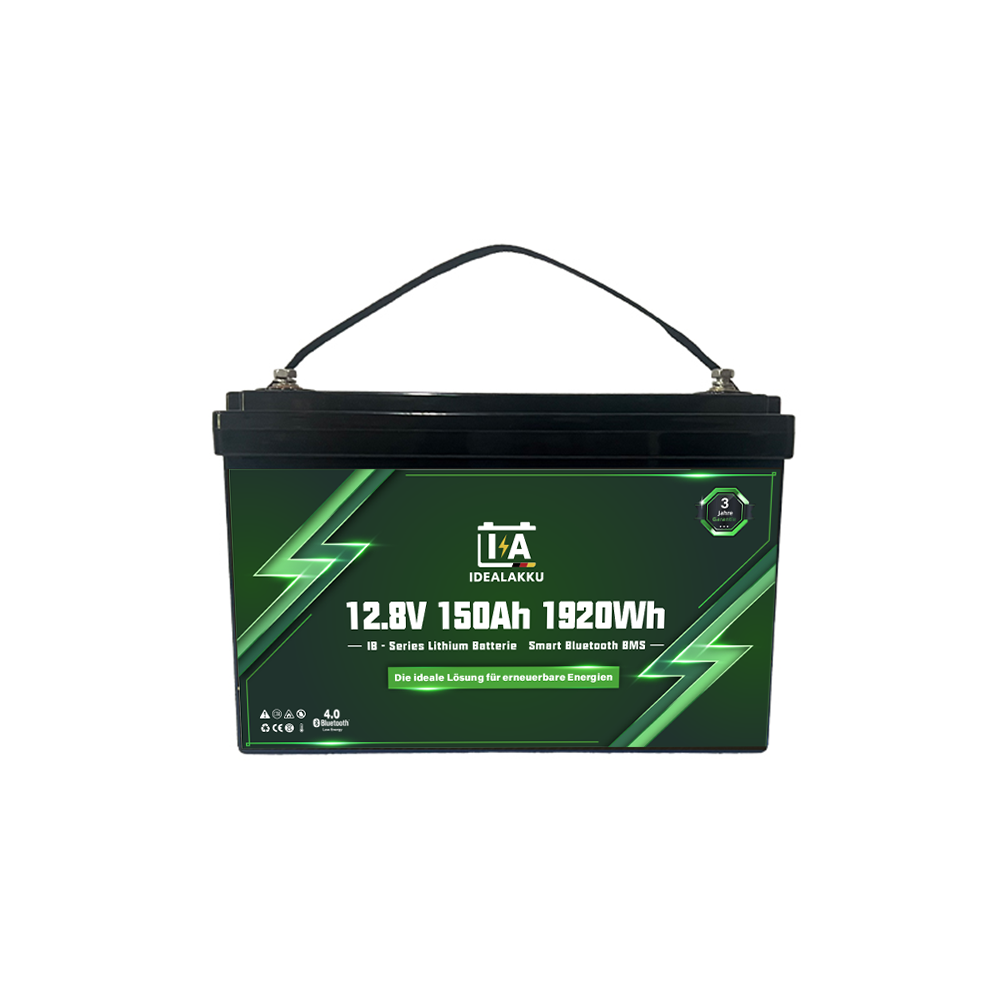

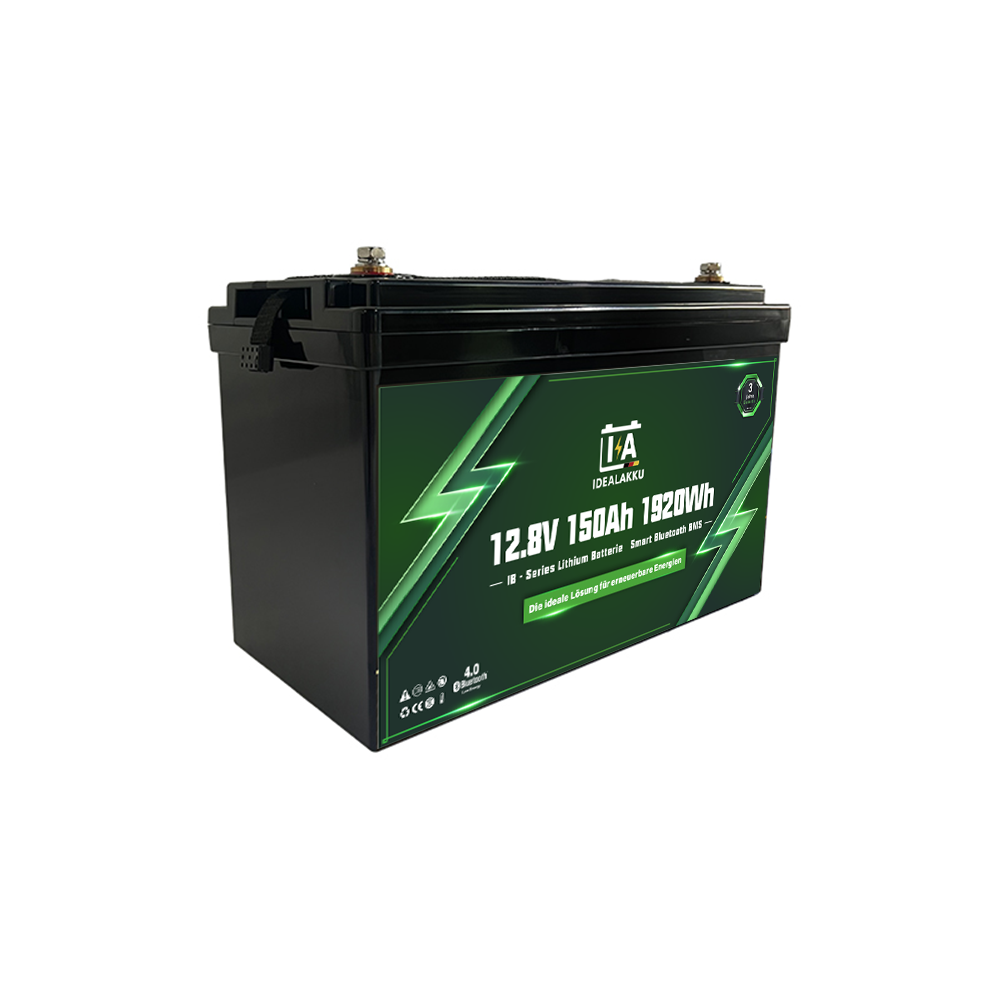

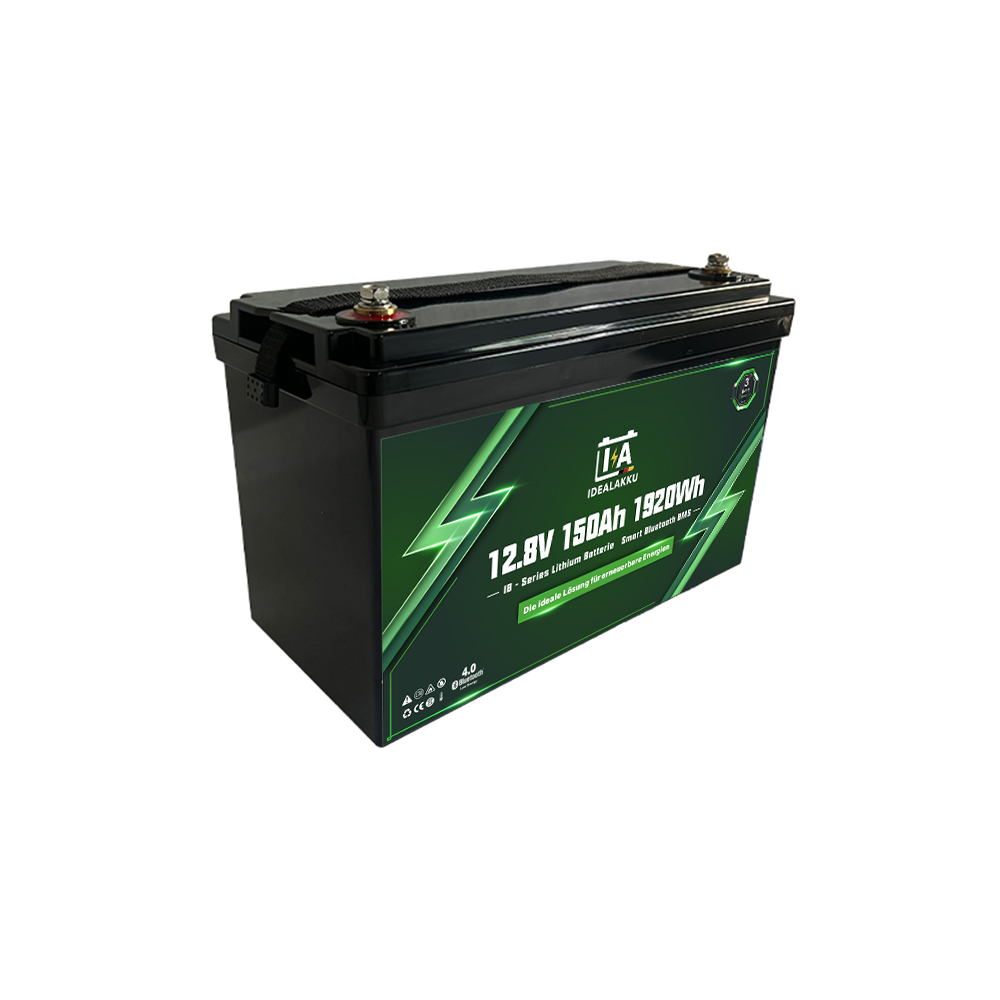

Idealakku IB-Series LiFePO4 battery 12 V 150 Ah with Smart-BMS, Bluetooth and heating
716,00€
Idealakku IA SERIES Lithium Battery LiFePO4 12V 150Ah Smart BMS with Bluetooth Motorhome Underseat Battery with Heating
SKU: IA-12-150H
In stock
– Integrated heating foil, suitable for use in arctic temperatures down to -35°C
– 3-year warranty
– Class A prismatic battery cell
– 200A maximum continuous discharge current
– APP available on Apple Store and Google Play
– Dimensions (L x W x H): 355 × 175 × 188 mm – DIN H8/LN5
– Specially adapted to fit under the seat of a Fiat Ducato, Citroën, or Peugeot motorhome
Διαθέσιμο κατόπιν παραγγελίας
Model 12.8V 150Ah/1920Wh
Replaces lead-acid gel AGM battery 12.8 V/300 Ah
Cell type Prismatic cell
Dimensions including clamps (L x W x H) 330 x 172 x 215 mm
Weight (without accessories) 15.5 kg
menstrual cycle >6000@80%DoD
Internal resistance ≤7 mΩ
Recommended charging voltage 14.6 V
Maintenance charging voltage (standby) 13.8±0.8 V
Recommended charging current 45 A
Max. charging current 75 A
Continuous discharge current 200 A
Peak discharge cutoff current 600 A (200~500ms)
Operating voltage range 10 – 14.6 V
End of the discharge voltage range 10 – 11.2 V

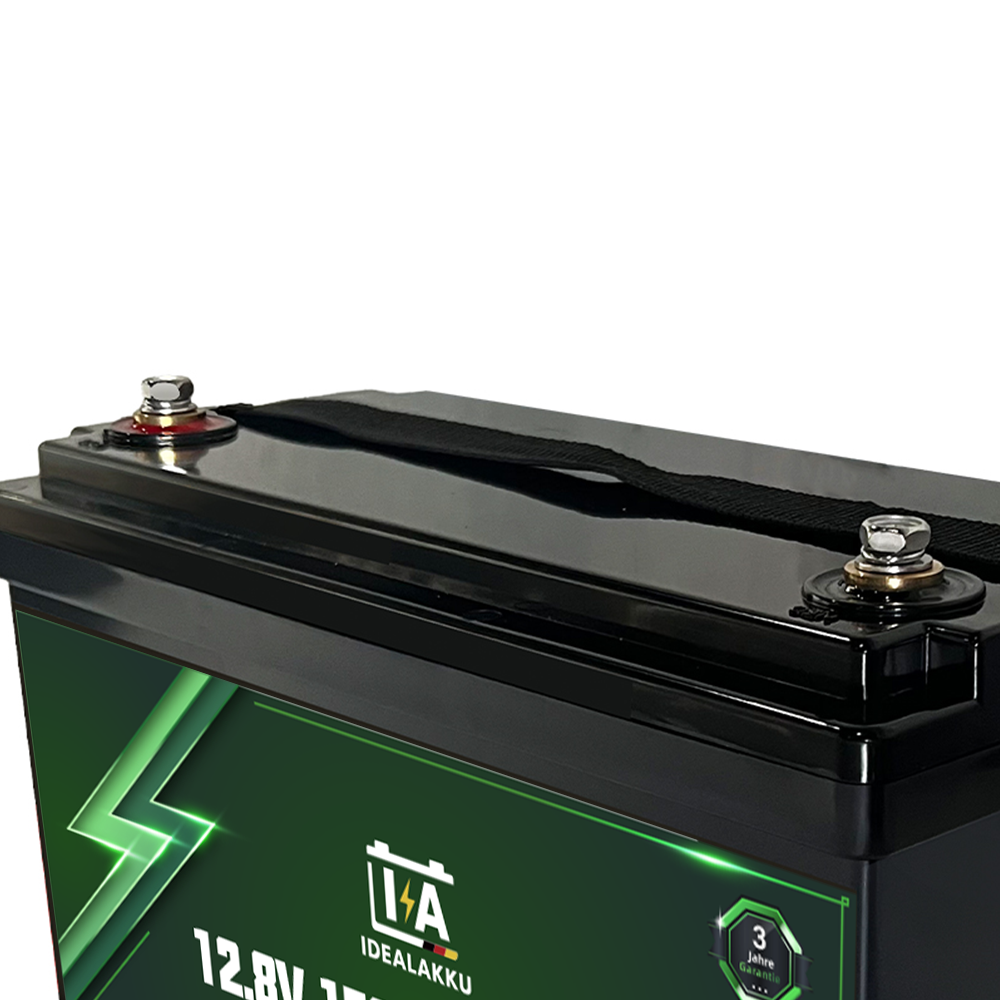

Terminal type M8
Protection class IP65
Charging temperature 0~50 °C
Discharge temperature -20~75 °C
Storage temperature -5 to 35 °C
Heating operating temperature -35 to 5 °C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum 4 pieces in series and 4 pieces in parallel connection
Certifications CE /UL /UN38.3 /MSDS /ROHS UN 3480 /CLASS 9
