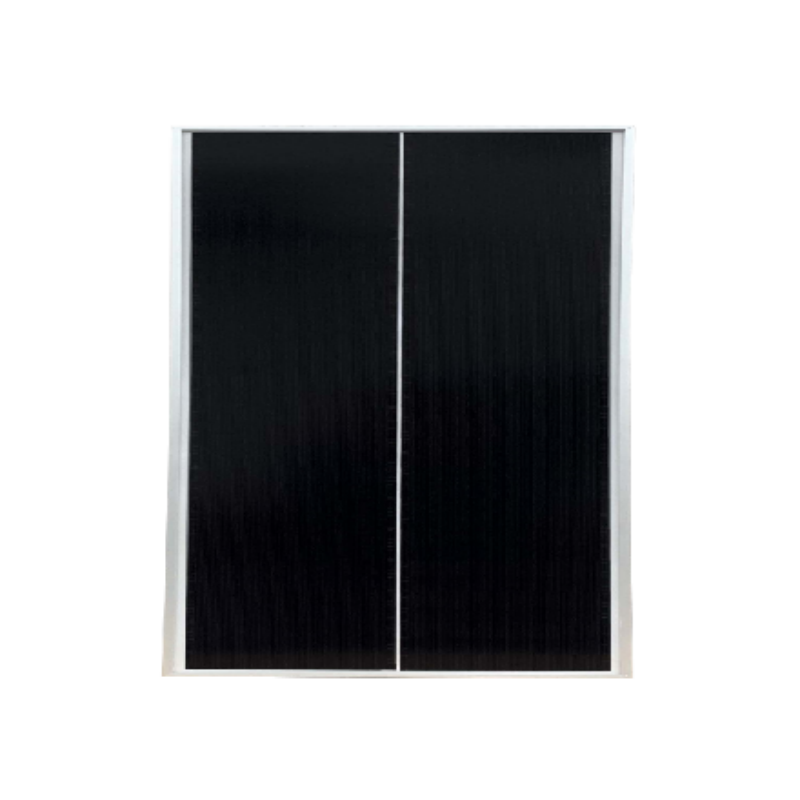

40W (480*450*25mm) Frame Solar panel
50,00€
Dimensions : 480x450x25mm
Weight : 2.3 kg
Nominal Power: 40W
Maximum Power Voltage: 18.15V
The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%. Using tempered glass, high transparency.
Anti-corrosion EVA effectively protects the battery panel.
Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
Lightweight and flexible features can make it seamlessly integrated into your vehicle.
Packed in a single carton, with protective corners on all four corners.
Διαθέσιμο
7
βλέπουν αυτό το προϊόν τώρα!
Περιγραφή
| Nominal Power | 40W |
| Maximum Power Current | 2.21A |
| Maximum Power Voltage | 18.15V |
| Open-circuit Voltage | 21.75V |
| Short-circuit Current | 2.34A |
| Maximum System Voltage | 500V |
| Output Tolerance | 0~+3% |
| Module Structure | Aluminum Frame / Glass / EVA /Backsheet |
| Junction box rating | ≥IP67 |
| Cell | 210*28.2–16*2 |
| Working Temperature | -40~+80℃ |
| Module Dimensions | 480*450*25mm |
| Weight（Net /Gross） | 2.3/2.8kg |
