Wattstone PV mounting system for flat roofs for 4 solar modules with 30 mm frame height, 15° concrete base, black building protection mat

Maximize the effectiveness of your solar system with this user-friendly module mounting kit (MPN 019915)this set allows you to easily install your solar modules side by side on a flat roof—without interfering with the roof structure. The system is also suitable for positioning in the garden, on the terrace, or on other flat surfaces. The set is suitable for solar panels with a module height of 30 mm.

Wattstone concrete bases are perfect for installing multiple solar modules in a row in any direction. By using the optional tilt angles of 0, 6, 10, and 15 degrees, you can maximize the potential of your solar system and ensure optimal energy production.

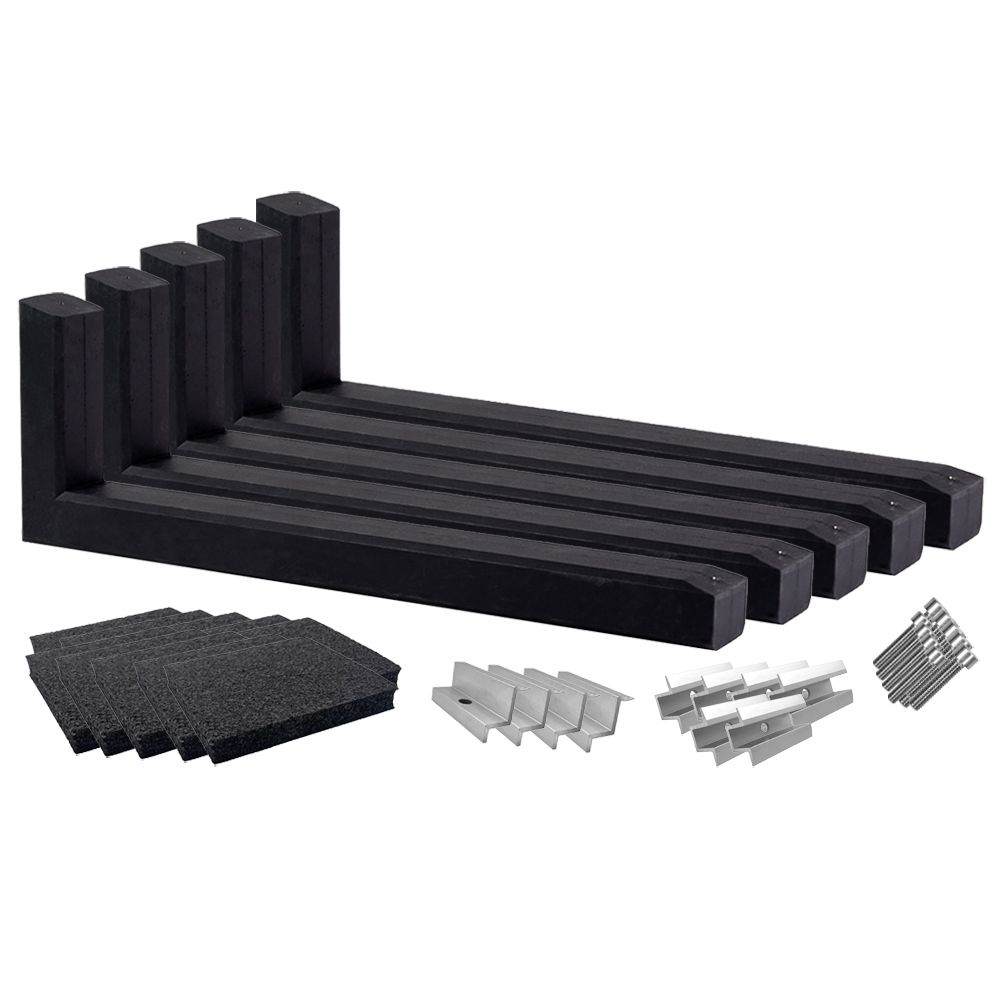

The set includes (depending on your selection):
Wattstone concrete bases – number depending on the quantity of solar modules
Wattstone building protection mats – aluminum-coated or black
Offgridtec module end clamps
Offgridtec module center clamps
Offgridtec M8x20 hexagon socket screws
Offgridtec M8x25 hexagon socket screws
Maximize your performance
By connecting the solar modules in series, the voltage of your solar system is significantly increased. This leads to more efficient energy conversion and lower line losses throughout the entire system.

Optimal use of space
This installation method allows maximum utilization of the available roof or floor space. By positioning the modules in rows, the space can be used optimally without creating excess gaps.

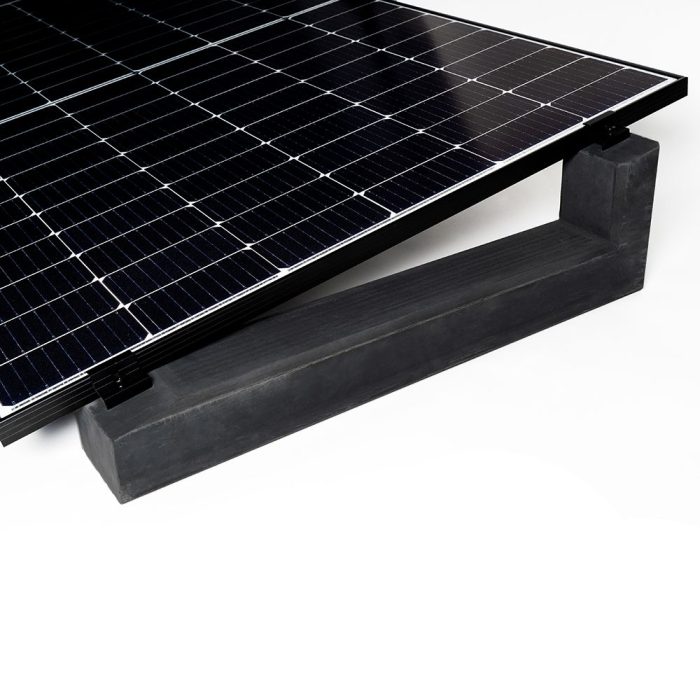

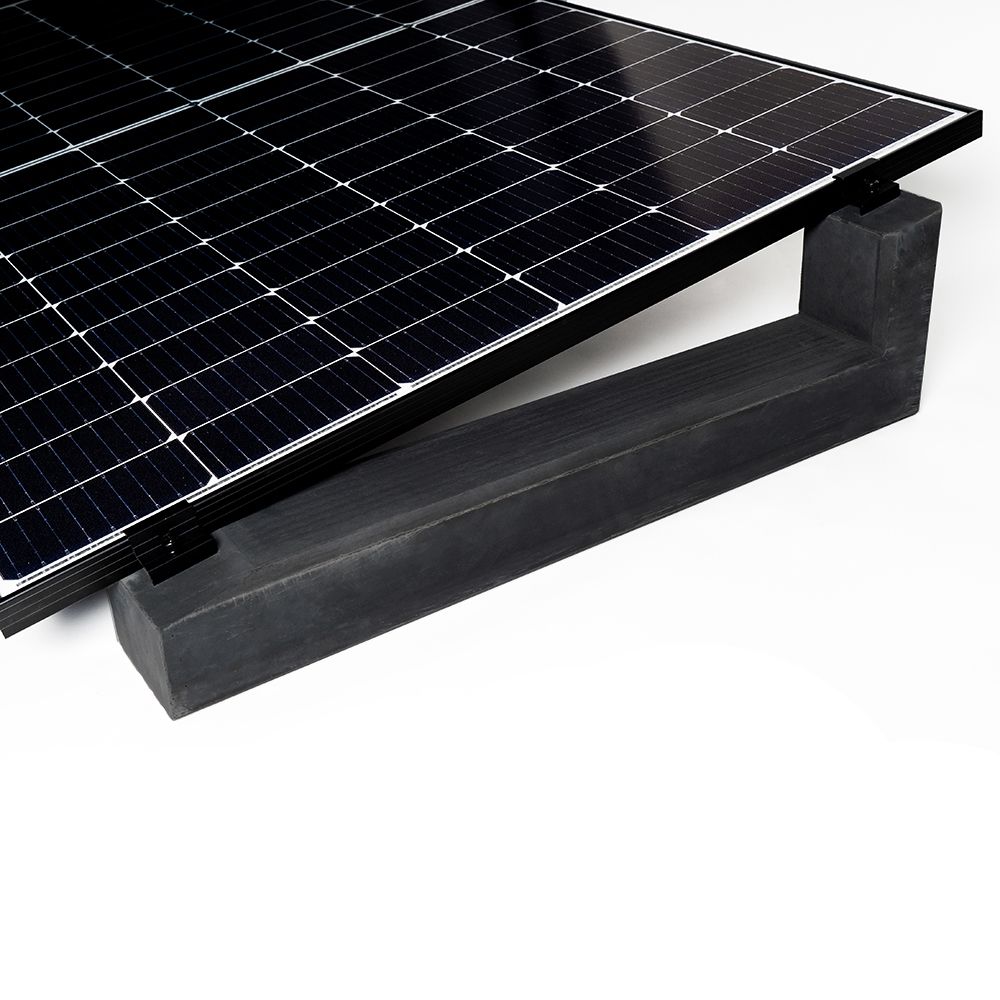

The Wattstone concrete bases

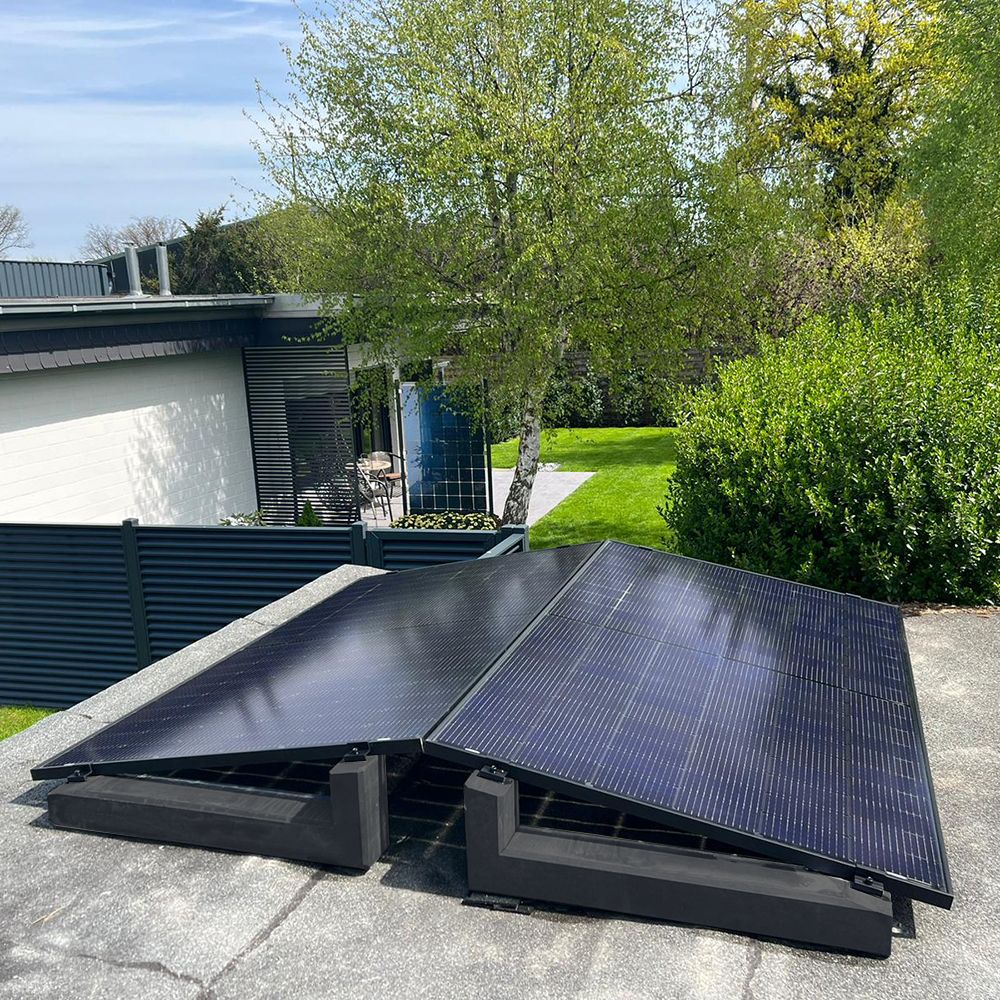

Flat roof installation
Choice of 0, 6, 10, and 15-degree tilt angles
Substructure and ballast in one
No drilling of the roof structure necessary
No complicated assembly with tools
Concrete base made of fine-pored exposed concrete
Integrated M8 thread
Quick and easy installation
Color: Anthracite
Traditional PV surface mountings usually require anchoring, bonding, or ballasting on the roof. Concrete slabs are often used as ballast. With WATTSTONE’s robust concrete bases as the foundation for the surface mounting, these steps are completely eliminated. The concrete base rests securely on smooth bitumen, bitumen with slate, PVC, EPDM, and smooth concrete, in both dry and wet conditions.
