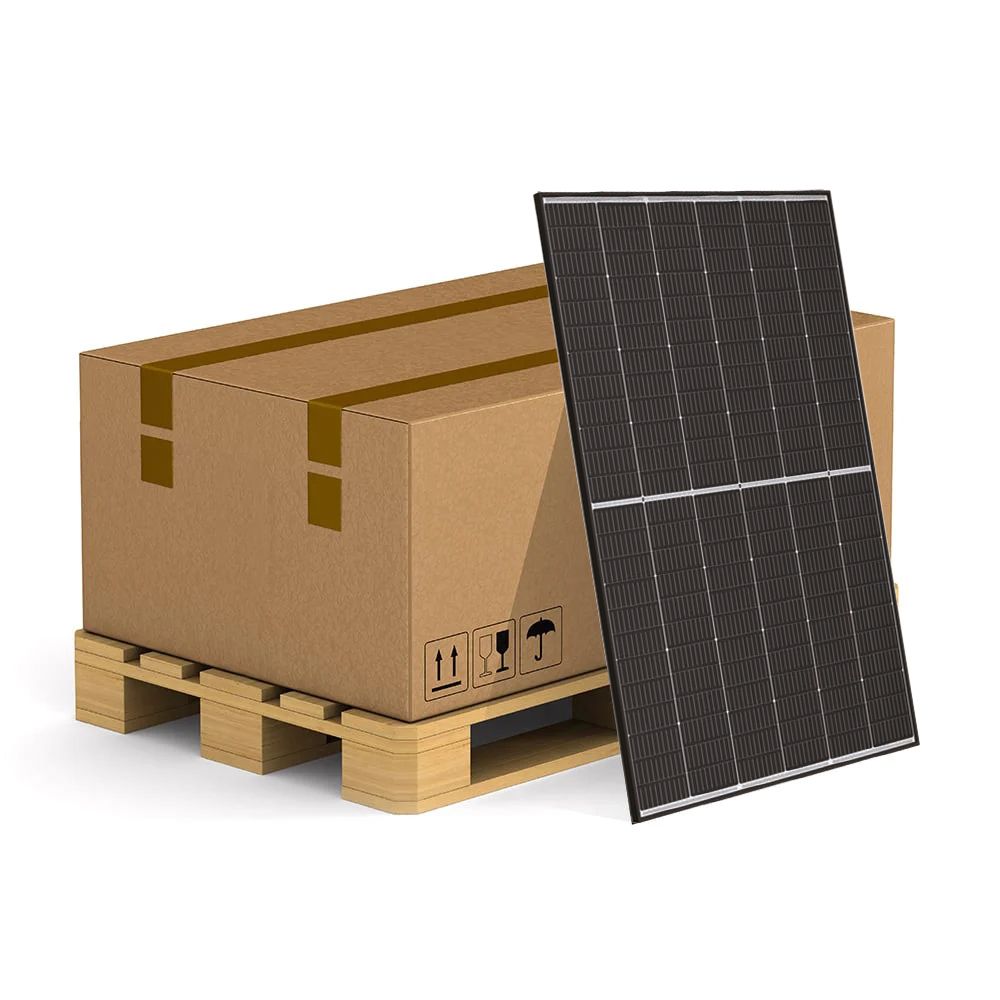

Trina Solar 445W Vertex S+ dual-glass N-type TopCon solar modules
2.550,00€
Technical data
Power (Pmax): 445 W
Voltage (Vmp): 44.3 V
Max. current (Imp): 10.05 A
Open-circuit voltage (Voc): 52.6 V
Short-circuit current (Isc): 10.71 A
Operating temperature: -40°C to +85°C
Max. system voltage: 1500V DC
Max. fuse rating: 20 A
Cell efficiency: 22.3%
Number of cells: 144
Connection box protection class: IP68
Dimensions: 1762 x 1134 x 30 mm
Weight: 21.1 kg
Scope of delivery:
36 items Trina Solar 445W Vertex S+ double-glass N-type TopCon solar module
Διαθέσιμο κατόπιν παραγγελίας
The Trina Solar Vertex S+ (MPN: TSM-NEG9R.28) is an efficient solar panel with an output of 445W that uses monocrystalline TOPCon cells and dual-glass technology. Thanks to multi-busbar technology, it offers improved absorption, low series resistance, improved current dissipation, and reliability. It is certified for extreme wind and snow loads of 5400 – 4000 Pa and feat
Multi-busbar technology
Each PV module has busbars that serve as conductor rails and are firmly connected to each solar cell. They collect the direct current generated and feed it to the busbars. Trina Solar uses a larger number of busbars to reduce shadow effects, shorten transport distances, and minimize resistance in the modules.
Universal solution for residential and C&I roofs
The module has been designed to integrate easily into existing inverters and various mounting systems. In addition, it is optimally dimensioned and lightweight, which facilitates handling and installation. This makes the Vertex S the ideal solution for roofs with limited load-bearing capacity.
