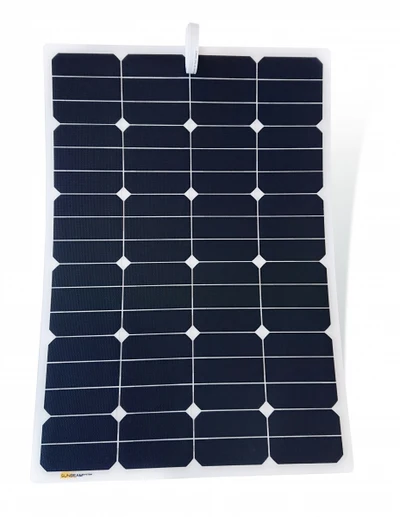

SUNBEAMsystem Tough+ 82W Flush
502,00€
Technical data
| Article name | Tough+ 82 W flush |
| Article No. | 1970702 |
| Dimensions | 778 x 540 mm |
| Weight | 1.5 kg |
| Pmax – Max. power | 82 W |
| Voc – Voltage open circuit | 24.52 V |
| Lsc – short-circuit current | 4.36 A |
| Vmp – Max. system voltage | 21.12 V |
| Imp – Max. Current | 3.90 A |
| Ptol – Power Tolerance | +/- 3% |
| solar cells | Sunpower 23.70% |
| Max sys voltage (including by-pass diode) | 30V (80V) |
| Cable length | 2 m |
| High shade tolerance | Yes |
| With mounting eyes | No |
| Note: When connecting in series, always pay attention to the permissible max. system voltage of the solar panel |
Διαθέσιμο κατόπιν παραγγελίας
Flexible and walkable solar modules from SUNBEAMsystem from Sweden
The Swedish solar specialist SUNBEAMsystem develops solar modules using state-of-the-art technology and with a wide range of application possibilities (on board, on caravans, etc.). All SUNBEAMsystem modules are extremely thin, flexible, and walkable. Thanks to their outstanding energy yield, they are perfect for self-sufficient energy generation on the go.
The latest generation of particularly powerful and robust solar modules
SUNBEAMsystem Tough+ impresses with outstanding performance per unit area and extreme durability:
– Another +13% performance compared to Tough modules
– Flush 2.0 cable (even flatter)
– Walkable, non-slip surface
– Easy installation
– 5-year warranty
The outstanding power output is safely monitored by SUNBEAMsystems’ partner Sunpower. The cells in a Tough+ panel have an impressive average efficiency of 23.7%. This allows the Tough+ modules to achieve approximately 13% higher performance than comparable modules, or the Tough modules themselves. Tough+ features materials specifically developed by SUNBEAMsystems for the Tough series. This enables unprecedented durability for lightweight and thin solar modules.
The anti-slip surface is not only practical and safe, but also improves light output. The dirt-repellent properties help keep the panel clean and ensure optimal, self-sufficient power generation.
All Tough+ modules are equipped with the flat Flush 2.0 cable . This improved cable is 30% flatter, yet still has 25% more copper cross-section than the Flush (standard) series. Tough+ is designed for screwless installation. Combined with the new, slim cable, this results in a thin surface, ideal for integrating the modules into any surface. All Tough+ models are supplied with structural adhesive for quick installation on curved surfaces. For a slow-curing alternative, we recommend using a soft adhesive.
