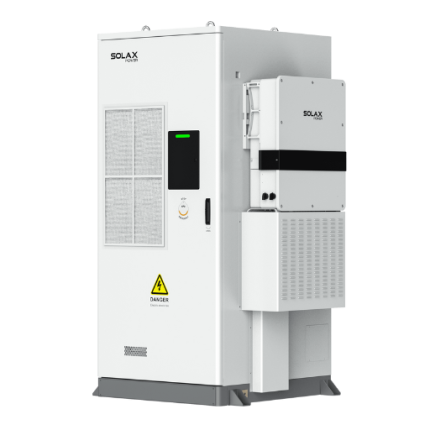

SolaX ESS-AELIO 60kW / 200kWh C&I energy storage system with air cooling
X3-AELIO-60K (inverter)
EPS rated output power: 60 kVA
EPS peak output power: 90 kVA, 10 s
Switchover time: <10 ms
Max. efficiency: 98%
European efficiency: 97.2%
Cooling: Intelligent cooling
Protection class: IP66
Operating temperature range: -35°C to +60°C
Weight: <105 kg
Dimensions: 820 x 670 x 257 mm
TB-HR140 (battery)
Battery type: LFP
Single module: 14.3 kWh
Nominal voltage of a battery: 51.2 V
Battery voltage range: 40-58.4 V
Operating temperature range: -20°C to +53°C
Protection class: IP20
Communication with PCS: CAN
Weight: 115 kg
Dimensions: 461 x 228 x 778 mm
AELIO-P60B200 (complete system)
DC side
Max. recommended PV power: 120 kWp
Max. PV input voltage: 1000 V
Start voltage: 180 V
PV nominal input voltage: 650 V
MPPT voltage range: 160-950 V
Number of MPPT: 6
Strings per MPPT: 2
Max. input current per MPPT: 40 A
Max. short-circuit current per MPPT: 50 A
AC side
Nominal output power: 60 kW
Max. apparent output power: 66 kVA
Nominal output current:
91.0 A at 220 V
87.0 A at 230 V
83.4 A at 240 V
Max. continuous output current:
100.0 A at 220 V
95.7 A at 230 V
91.7 A at 240 V
AC rated power:
3/N/PE, 220/380 V
3/N/PE, 230/400 V
3/N/PE, 240/415 V
AC rated frequency: 50/60 Hz
Battery parameters
Total battery capacity: 200 kWh
Battery nominal voltage: 716.8 V
Battery voltage range: 160-820 V
Charging/discharging current: 140 A
General
Operating temperature range: -30°C to +55°C
Cooling: Intelligent cooling
Protection class: Cabinet – IP55, inverter – IP66
Weight (with inverter): 2800 kg
Weight (without inverter): 2700 kg
Dimensions (with inverter): 2070 x 2420 x 1200 mm
Dimensions (without inverter): 1680 x 2420 x 1200 mm
Scope of delivery
1x SolaX ESS-AELIO 60kW / 200kWh C&I energy storage system with air cooling
1x large cable cover
1x small cable cover
1x dust protection grille
Includes mounting and installation accessories
The AELIO-P60B200 all-in-one energy storage system from SolaX (MPN: 1070030002) operates with up to 60 kW output power at 200 kWh storage capacity and is primarily intended for outdoor use. The complete system includes a cabinet, LiFePO4 battery modules, high-voltage box, distribution box, IO module, EMS, switch, UPS, an automatic fire extinguishing system, and the X3-AELIO-60K inverter. The hybrid ESS cabinet allows PV over-subscription of up to 200%, so you can connect up to twice the nominal power. This allows you to achieve higher yields in low light and shaded hours. A maximum DC input current of 40 A ensures high PV throughput and supports powerful strings. Global MPP scanning finds the global operating point even in partial shading and maximizes energy yield. Intelligent I-V curve diagnostics visualize the performance of your modules and strings, detect deviations such as defects, mismatches, or shading at an early stage, and support predictive maintenance.
The modular, scalable architecture allows you to use it flexibly in commercial and industrial applications. The cabinet supports both grid-connected and off-grid systems and can be seamlessly integrated into existing installations. Thanks to optimal use of space, the storage capacity grows in line with demand. This allows you to reliably secure your energy supply and efficiently cover increasing
