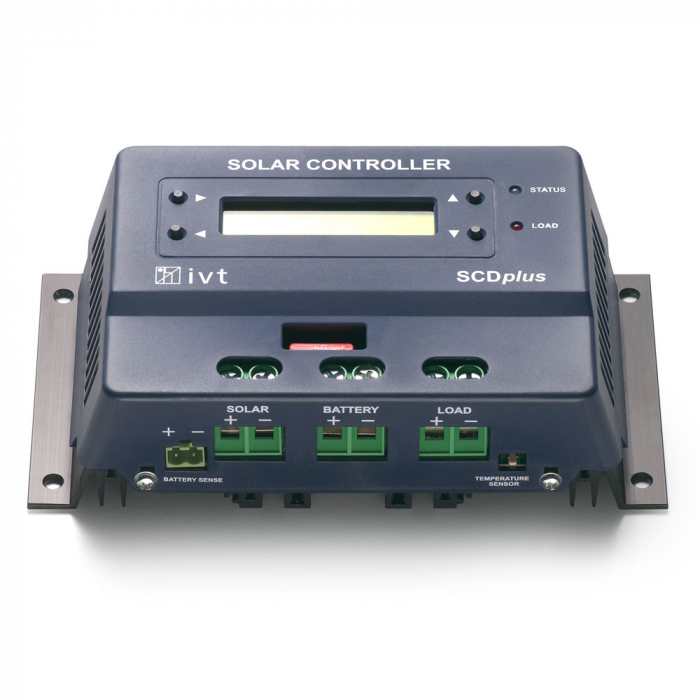

Solar-Controller SCDplus IVT 12 V/24 V, 40 A mit Display

Battery system voltage 12 V | 24 V
Supported battery types Lead-acid, lead-gel,lead-AGM, LiFePO4
Type of charge control PWM serial
Maximum panel power 480 W | 960 W
Maximum panel voltage 50 V
Maximum panel/charging current 40 A
Maximum load current 40 A
Internal current consumption, active 25 mA
Internal current consumption, standby < 10 mA
Fuse 40 A
Reverse polarity protection battery input Yes
Reverse polarity protection solar input Yes
Overcurrent protection load output Yes
Temperature sensor Yes (external) 1.5 m
Operation temperature range -20 °C to +60 °C
Maximum efficiency 98 %
Common ground potential
(negative pole) Yes
Switchable load output Yes
Software control Yes
PC interface USB (Type B)
Display LCD display +
LED
Housing Plastic
Dimensions (L x W x H) 190 x 105 x 55 mm
Weight 540 g
Charging parameters
Cut-off voltage, lead-acid 14.0 V | 28.0 V
Cut-off voltage, lead-gel 14.1 V | 28.2 V
Cut-off voltage, lead-AGM 14.7 V | 29.4 V
Cut-off voltage, LiFePO4 14.2 V | 28.4 V
Trickle charging, lead-acid/lead-gel 13.7 V | 27.4 V
Trickle charging, lead-AGM/LiFePO4 13.8 V | 27.6 V
Temperature compensation, minimum* 25 mV/K | 50 mV/K
Temperature compensation, medium* 30 mV/K | 60 mV/K
Temperature compensation, maximum* 35 mV/K | 70 mV/K
Deep discharge protection load output
Shut-off voltage, factory setting 10.5 V | 21.0 V
Shut-off voltage, adjustable range* 10 V – 11 V |
20 V – 22 V
Reset voltage, factory setting 12 V | 24 V
Reset voltage, adjustable range 11.5 V – 12.5 V |
23.0 V – 25.0 V
