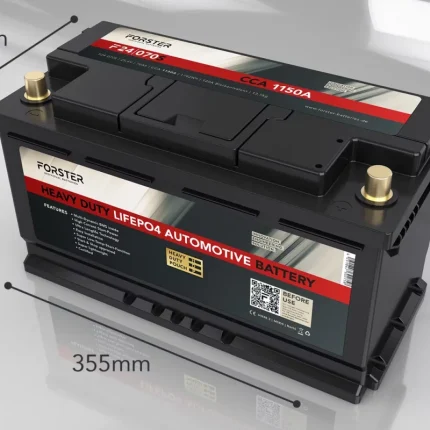

FORSTER 25,6V | 70Ah | LiFePO4 | Heavy Duty Automotive Lithium Battery | 1150A
Data / Order no.: F24-070S
EAN 4251847302758
Nominal voltage 25.6V
Technology Lithium LiFePO4
Kälteprüfstrom CA 1150A
Operating voltage 22.0V – 29.2V
Endpolart
Car SAE cone standard / plus right front
Circuit 0 (positive pole front right)
Final pole type for data sheet Pole

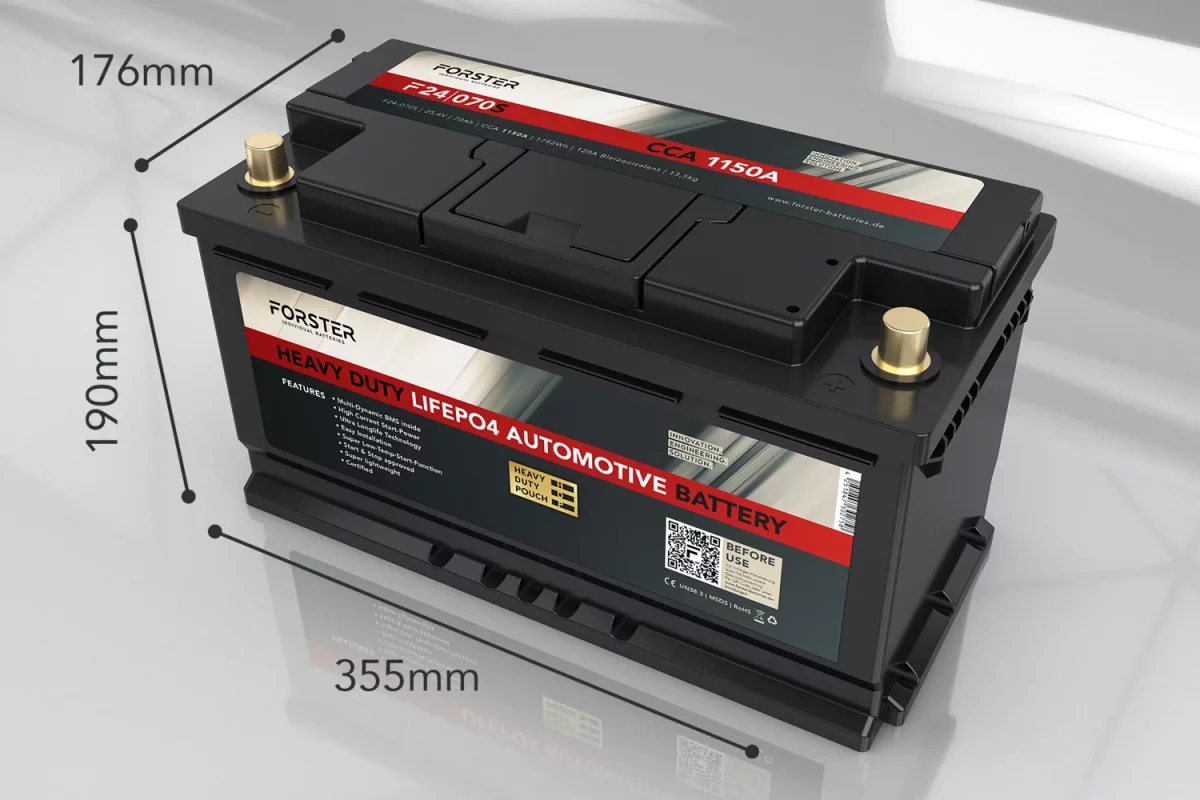

Maße 355 x 176 x 190mm (incl. connector)
Installation position any, standing, lying, sideways, upright
Weight 13.5kg
Reference to lead, gel, AGM batteries
65D31L, 75D31L, 95D31L, N40L, N70ZL, NX120L, Exide W249BX
Guarantee 2 years
Cell type HDP Heavy Duty Pouch Cells
Application parallel circuit Yes, max. 4 pieces of the same type possible
Application series switching Yes, 2 batteries in series on 48V
CAPAZITÄT
Capacity at 25°C 70Ah
Capacity at 0°C 56Ah
Capacity at -25°C 35Ah
Energy content at 25°C 1792Wh
LIFE span
Start cycles >100,000 (<3sec.)
Cycles / service life at 50% DoD >5000
Cycles / service life at 70% DoD >3000
Cycles / service life at 80% DoD >2500
Peak discharge current / 3 sec 1150A
Continuous discharge current 240A
Recommended continuous discharge current >60A
Recommended battery disconnection / system 22.0V
LOAD
Final charge voltage 28.4V – 29.2V
Preservation charge 26.6 – 27V
Max. Charging current / charging time / not Lima 70Ah / 60min
Recommended charging current / not Lima 35A / 120min
Insert repair during discharge minus 20°C to plus 90°C
Recommended storage temperature -45°C to 70°C / max 95% humidity
Protection class IP67
Storage 60 – 80% / charge every 6 months during storage
Self-discharging 1.5 – 3% / month
BATTERY MANAGEMENT SYSTEM
BMS built in
Multi-Dynamic-BMS
&overload protection 1150A
Charging programs
CCCV / IU / IUoU / Lead-Säure
Charging protection / control yes
Undervoltage protection 16.0V
Discharge current limitation (duration) 150A
&overvoltage protection 31.2V
Balancing
Active balancing in every state of charge
Short-circuit proof Yes
Temperature monitoring / protection Yes
Remote monitoring integrated with APP n/a
Bluetooth n/a
CONFORMITY & SPECIFICATIONS
Certification UN38.3 | MSDS | CE | RoHS | ECE-R10
Transport classification UN3480
25.6V | 70Ah | lithium starter battery | replaces 140Ah lead
Ready to go with the latest lithium technology for your start With the new LiFePO4 lithium iron phosphate premium starter battery from FORSTER, you have the opportunity for the first time to replace your previous lead or gel battery (from your EURO 6 car) 1:1 with a LiFePO4 starter battery. We offer you the latest lithium battery technology ready for installation in a standard battery housing.
TOP FEATURES: – Multi-Dynamic BMS – Start-stop function – Unique & strong function / high current starting performance – Very long service life & easy installation – High resistance to cold – Super light weight – Certified
Multi-Dynamic Battery Management System: The absolute highlight is the Multi-Dynamic BMS. This function was originally developed for racing and permanently adapts to the vehicle electronics. It controls all protective functions and ensures maximum safety. This BMS protects your battery from overvoltage and overtemperature, balances the cells during charging and prevents deep discharging of the battery. This function is unique & always learning.
