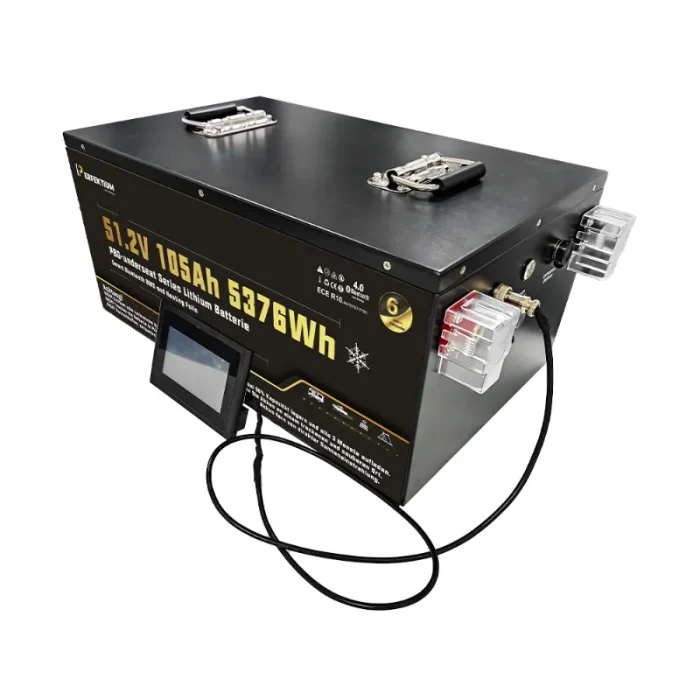

Perfektium PBG SERIES Lithium Battery LiFePO4 51.2V 105Ah Smart BMS with Bluetooth Golf Cart Battery with Heating
6-year warranty
Remove lead-acid battery directly
Energy density twice as high as that of a lead-acid battery of the same volume
Lighter weight and easier handling
Lithium iron phosphate is more stable
Excellent stability even under extreme loads
No memory effect, no complete charge and discharge cycles required.
Deep, regular charging and discharging, and charging efficiency
Maximum lifespan of over 6000 cycles
Durable modular design
Screw opening, perfectly crafted internal structure design
5376 Wh of energy – enough for a range of approximately 70 km for a golf cart
Fast delivery – within Germany in 1–3 working days
Model 51.2V 105Ah/5376Wh
Replaces lead-acid gel AGM battery 8v 170ah x 6 items
Cell type Prismatic cell
Dimensions including clamps (L x W x H) 520x298x235mm
Weight (without accessories) 47.2kg
menstrual cycle >6000@80%DoD
Internal resistance ≤14 mΩ
Recommended charging voltage 58.4V
Maintenance charging voltage (for standby use) 55.2±0.8V
Recommended charging current 20A
Max. charging current 150A
Continuous discharge current 150A
Peak discharge cutoff current 450A (200~500ms)
Operating voltage range 40 – 58.4V
End of the discharge voltage range 40 – 44.8V
Terminal type M8
Protection class IP54
Charging temperature 0~45°C
Discharge temperature -20~60°C
Storage temperature 0~40°C
Heating operating temperature -35 to 5°C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum 4 pieces in series and 4 pieces in parallel connection
Certifications CE/UL/UN38.3 /MSDS /ROHS/UN 3480/
CLASS9/ECE R10
