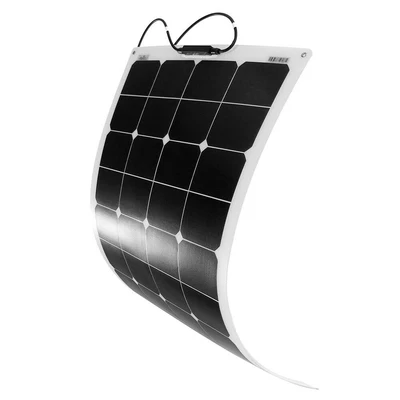

Offgridtec ETFE SPR-F-100 V2 120W Solarmodul flexibel
Original price was: 206,00€.185,00€Η τρέχουσα τιμή είναι: 185,00€.
Generatorleistung wp 120 Wp
Solarmodul – Größe Anschlusskabel 4 mm – 6 mm
Solarmodul – Kabellänge 0,8 m
Solarmodul – Steckertyp MC4
Solarmodul – Ösen 6 Ringösen
Solarmodul – Größe Ösen 6,75 mm
Solarmodul – Anschlussbox (ABM) 89 x 16 x 15 mm
max. Strom (IMP) 6,05 A
Kurzschlussstrom (ISC) 6,41 A
Modulspannung (VMP) 19,8 V
Leerlaufspannung (VOC) 23,4 V
Abmessungen 1070 x 540 x 2 mm
Solarmodul – Anschlussbox (IP) IP67
Solarmodul – Biegbarkeit max. 30 Grad
Zelltyp monokristalline SPR Hochleistungszellen
Systemspannung 12 V
Max. Systemspannung 200 V/DC
Umgebungstemperatur -40°C – +85°C
Toleranz +/- 3%
Garantie 5 Jahre
SPR monokristalline Hochleistungszellen (original Sunpower)
Solarmodul – Leistungsgarantie 10 Jahre*
Solarmodul – installierte Dioden 1 x Bypass Diode
Gewicht 2,08 kg
Διαθέσιμο κατόπιν παραγγελίας
Technical properties of the ETFE SPR-F-100 V2 120W solar module
120W nominal output at an operating voltage of 19.8V and a current of 6.07A
walkable
2 bypass diodes – minimised power drop when shaded
semi-flexible – can be bent up to a maximum of 30 degrees (lengthwise)
easy installation of the solar panel by gluing or using the eyelets
specially developed for long-term marine use
ETFE high-tech plastic ensures weight savings and high light transmission of max. 96%
equipped with market-leading high-performance solar cells from Sunpower for maximum efficiency
Junction box with protection class IP65
easy installation thanks to pre-assembled solar cable with solar plug connector and socket
small dimensions (LxWxH): 1070 x 540 x 2 mm
Mounting of the solar panel by gluing or using the eyelets
Manufacturer part number (MPN): 010895
low weight: only 2.08 KG
proven Offgridtec quality: made exclusively from premium raw materials of the highest quality level
2-year warranty – information on the warranty conditions can be found here
| Βάρος | 1,1 κ. |
|---|---|
| Διαστάσεις | 668 × 834 mm |
