Offgridtec Class-T Fuse Holder FH-T400 225A to 400A

The Offgridtec Class-T fuse holder FH-T400 (MPN: 025020) is designed for Class-T fuses ranging from 225 to 400 A. It is suitable for high-power battery, inverter, and DC distribution systems and features current-carrying copper busbars, screw terminals, and a transparent protective cover.

Class-T fuse holder for 225 to 400 A
For Class T fuses from 225 to 400 A
Maximum 400 A
For battery, inverter, and DC distribution systems
Current-carrying copper busbars
Busbars measuring 25 × 3 mm
M10 and M8 connection hardware
Transparent protective cover made of polycarbonate
Base body made of nylon PA66
Fixed panel mounting via four mounting points
For Class T fuses from 225 to 400 A

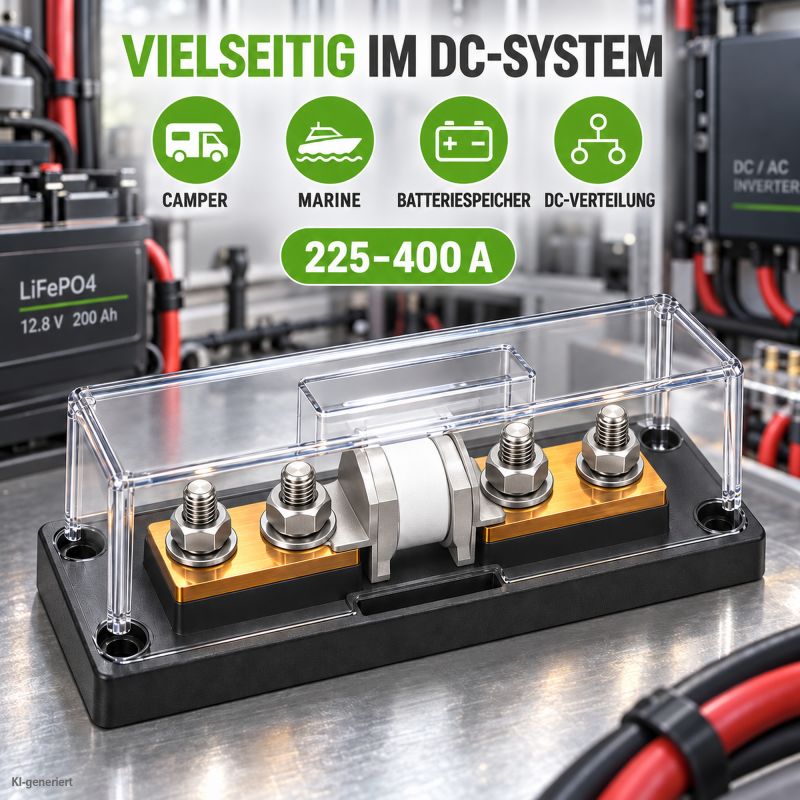

The FH-T400 serves as a mechanical and electrical housing for compatible Class T fuses ranging from 225 to 400 A. This makes it particularly suitable for protecting high-power battery systems, inverters, and central DC distribution systems. The fuse used must be selected to match the electrical specifications of the respective installation.

Copper busbars and screw terminals
The current-carrying busbars are made of copper and measure 25 × 3 mm. The fuse and connected cables are connected to each other via screw-type terminals. The technical drawing specifies M10 and M8 connection hardware made of SS304 stainless steel for this purpose.

Protective cover and fixed panel mounting

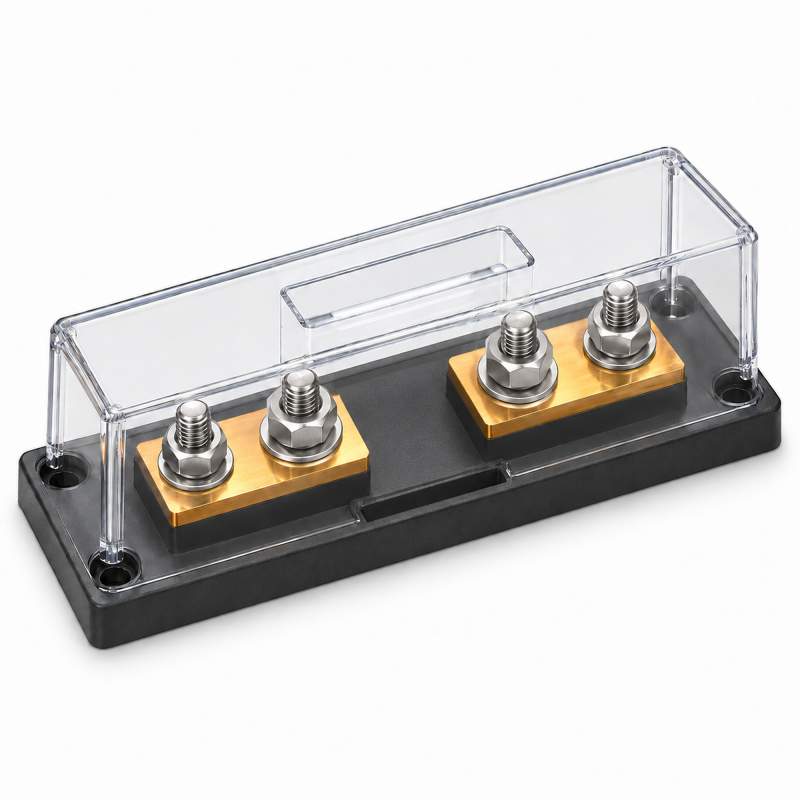

The base housing is made of nylon PA66 and is equipped with a transparent polycarbonate cover that shields the fuse and connection area while allowing for visual inspection. The FH-T400 is designed for fixed panel mounting via four mounting points and has overall dimensions of 178 × 62 mm.
