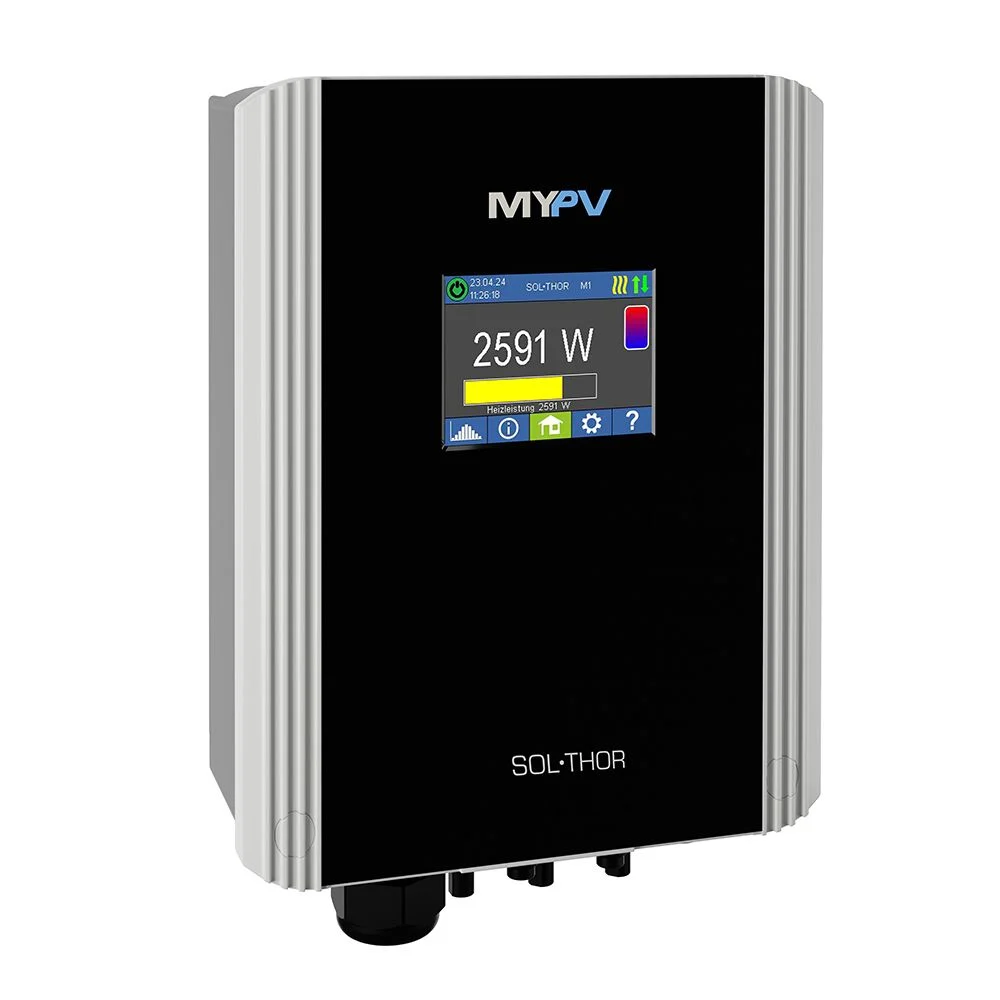

my-PV SOL-THOR DC Power Manager up to 3.6 kW for photovoltaic heating
Technical data
DC operation
Max. stepless output: 0-3600W, two outputs
Alternately adjustable
Max. 3600W at 25°C ambient temperature
Input voltage range: 30-230V (max. open-circuit voltage)
Number of MPPT: 1
DC inputs: 2 parallel, MC4 compatible connectors
Max. input current: 26A, current limited
AC operation
Max. heating power: 3600W
Own consumption in pure AC operation: approx. 2W
Mains connection: 1-phase, max. 4mm², 230V, 45-65Hz
AC fuse: max. 20A, tripping characteristic B
General data
Consumer connections: Terminal contacts 1-phase, max. 4mm²
External temperature sensor: 5 m, 1x included in delivery
Communication: LAN, WLAN RS485
Protection class: IP54
Operating temperature range: -20°C to +50°C
Storage temperature: -20°C to +70°C
Weight: 2.95 kg (including wall mount)
Dimensions: 248.5 x 167.4 x 116.2 mm (including wall moun
The SOL-THOR from my-PV (MPN: 14-0100) is a continuously adjustable DC power manager that efficiently converts solar power into heat. The direct current from your panels is transferred directly to a connected heating element with virtually no loss, guaranteeing maximum efficiency. Thanks to its self-sufficient operation, it does not need to be connected to the power grid and is completely self-sufficient via your 1-10 PV modules.If you need additional heat, the SOL-THOR can automatically switch to mains power and provide additional heating. You can use both new and existing heating elements in your heat storage tank. This makes retrofitting an ecological heating system simple and cost-effective. Furthermore, no approval from the grid operator is required, and by using cables instead of pipes, the system is maintenance-free. In off-grid applications, the SOL-THOR can operate in frequency mode. It is compatible with great brands such as Victron Energy, Growatt, Huawei, Studer, and SMA.
Product highlights
Max. power: 0-3.6 kW, continuously adjustable
No inverter required
For PV systems with 1-10 modules
Frequency mode in the off-grid sector
Loss-free conversion of all solar power into heat
More economical than conventional water heating
Also works during power or grid failures
Hot water supply optional
Flexible heat generation without additional effort
Thanks to its self-sufficient operation, no connection to the power grid is required. The SOL-THOR supplies itself independently directly from your PV generator, eliminating the need for grid feed-in, inverters, and connection permits. This DC power manager uses the solar power from your solar modules efficiently and directly for heat generation. The system can be operated with 1-10 PV modules. It transfers the direct current from your panels directly to a heating element and converts it into heat. Two heating elements can be controlled alternately to optimally adjust heat generation. On a day with little sunshine, it automatically switches to mains power so that you always have hot water. It couldn’t be easier – more flexibility and reliability for your solar supply.
Your advantages over solar thermal systems
Only lay power cables instead of complicated pipes
Virtually no losses between the PV generator and the heat storage tank
No moving parts and no frost protection control – maintenance-free
PV modules even deliver a higher yield at low ambient temperatures
The system restarts automatically and ensures that your heat supply remains continuous
Easy installation with heating rod in heat storage tank
Installation is child’s play – the cables from your PV modules are simply connected directly to the SOL-THOR via MC4 plugs. The heating element in the heat storage tank, whether new or already installed, is also easily connected to the Power Manager. If your PV yield is insufficient in bad weather, you can also optionally use electricity from the public grid for additional heating.
Maximum heat yield with electric boiler or wall-mounted storage tank
