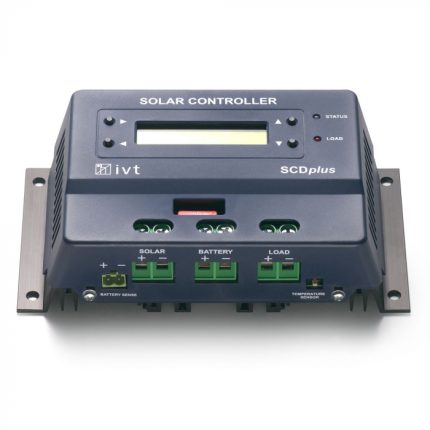

MPPT Solar Controller IVT 12 V/24 V, 30 A
- MPPT charging mode
- Automatic voltage recognition 12 V/24 V
- Standby function
- Step-up function
- Microprocessor-controlled charging
- Multi-step charging mode
- Suitable for lead batteries (acid, gel)
- Automatic temperature compensation
- External temperature sensor
- Robust metal housing
Battery system voltage 12 V | 24 V
Supported battery types Lead-acid, lead-gel
Type of charge control MPPT
Maximum panel power 360 W | 720 W
Maximum panel voltage 60 V
Maximum panel/charging current 30 A
Maximum load current 30 A
Internal current consumption, active 15 mA
(130 mA load output active)
Internal current consumption, standby < 1 mA
Fuse 30 A
Reverse polarity protection battery input Yes (indication via LED)
Reverse polarity protection solar input Yes
Overheating shut-off Yes
Temperature sensor Yes (external)
Step-up function Yes
Impulse charging for desulfation Yes
Operation temperature range -25 °C to +60 °C
Common ground potential
(negative pole) Yes
Switchable load output Yes
Remote display Yes (optional)
Display LED
Housing Metal
Dimensions (L x W x H) 190 x 112 x 59 mm
Weight 890 g
Charging parameters
Cut-off voltage, lead-acid, lead-gel 14.1 V | 28.2 V
Trickle charging, all battery types 13.7 V | 27.4 V
Temperature compensation 24 mV/K / 48 mV/K
Deep discharge protection load output
Shut-off voltage 10.5 V | 21 V
Reset voltage 12.5 V | 25 V
