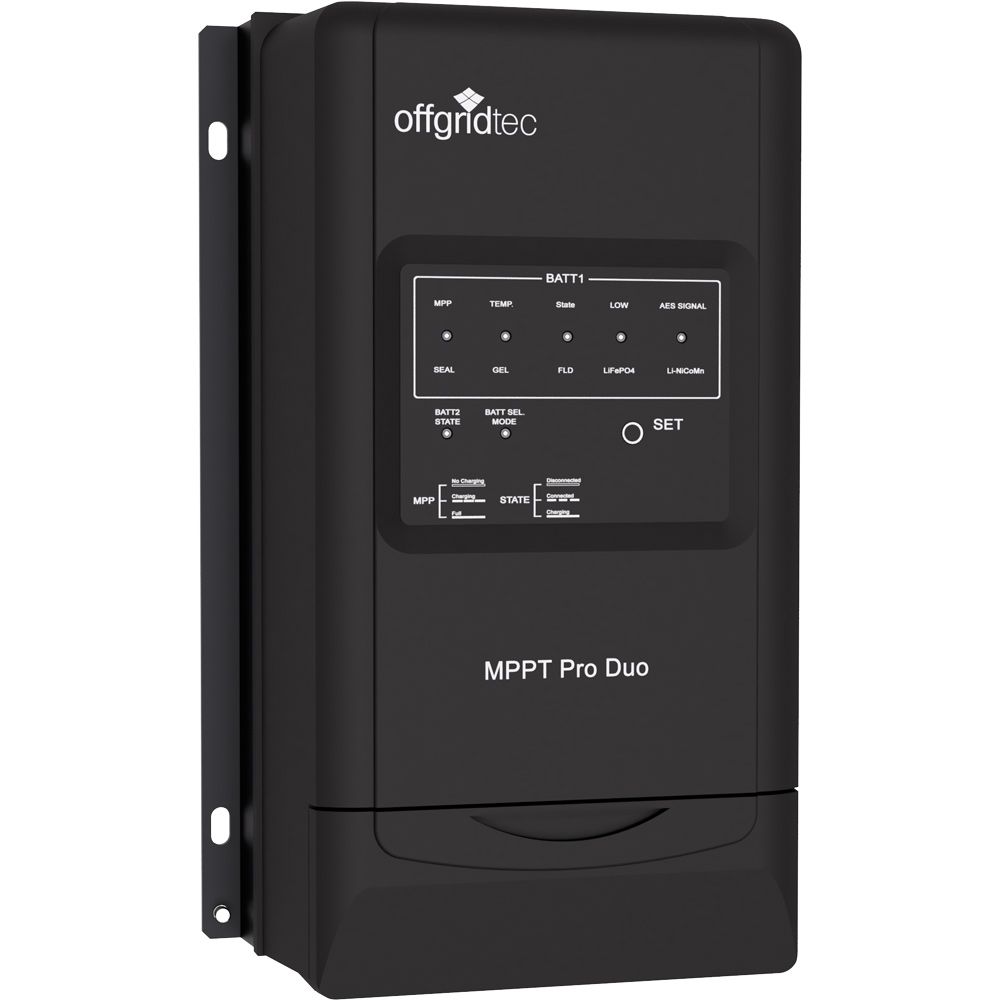

MPPT Pro Duo charge controller 30A 12V 24V for two battery circuits
80,00€
Active temperature compensation for optimal charging and ensuring a long battery life.
Max. solar power 390W at 12V system voltage and 780W at 24V system voltage
100V max. PV input voltage
Grounding: Negative
Dimensions: 24.7 cm x 16.5 cm x 6.9 cm (LxWxH)
Connection terminals Battery 1: 16 mm² (AWG6) / Battery 2: 4 mm² (AWG12)
Weight: 1.4 kg
Mounting hole diameter: 5 mm
Power consumption: 26mA at 12V / 15mA at 24V
Max. efficiency: 98%
Διαθέσιμο κατόπιν παραγγελίας
Maximum power point tracking technology with ultra-fast tracking speed and a tracking efficiency of at least 99.5%.
Advanced MPPT control algorithm to minimize MPP loss rate and minimize time loss.
Higher MPP operating voltage range to improve PV module utilization.
Option for users to limit the charging power or automatic charging current (BATT-1).
Digital circuit control of the adaptive three-stage charging mode to improve BATT-1 service life.
The product is put into energy-saving mode if no manual entries have been made for a long time and the charging conditions are not met (PV<5v).
100% charging and discharging within the operating temperature range.
AES control signal for car refrigerator to avoid energy waste.
Standard Modbus protocol and RS485 communication port (5V/200mA)
The MPPT Pro-Duo is an innovative high-end solar controller that was primarily designed for use in mobile applications. A wide range of different board battery types can be charged via the primary charging output (BATT-1). The battery spectrum ranges from AGM, GEL, and liquid lead acid to state-of-the-art LiFePO4 and Li-NiCoMn battery systems. The secondary battery charging output (BATT-2) is designed for a starter battery that is at the same voltage level as BATT-1. The device automatically detects the system voltage of the starter battery (BATT-2) and charging of BATT-2 begins as soon as the preset conditions are met.
