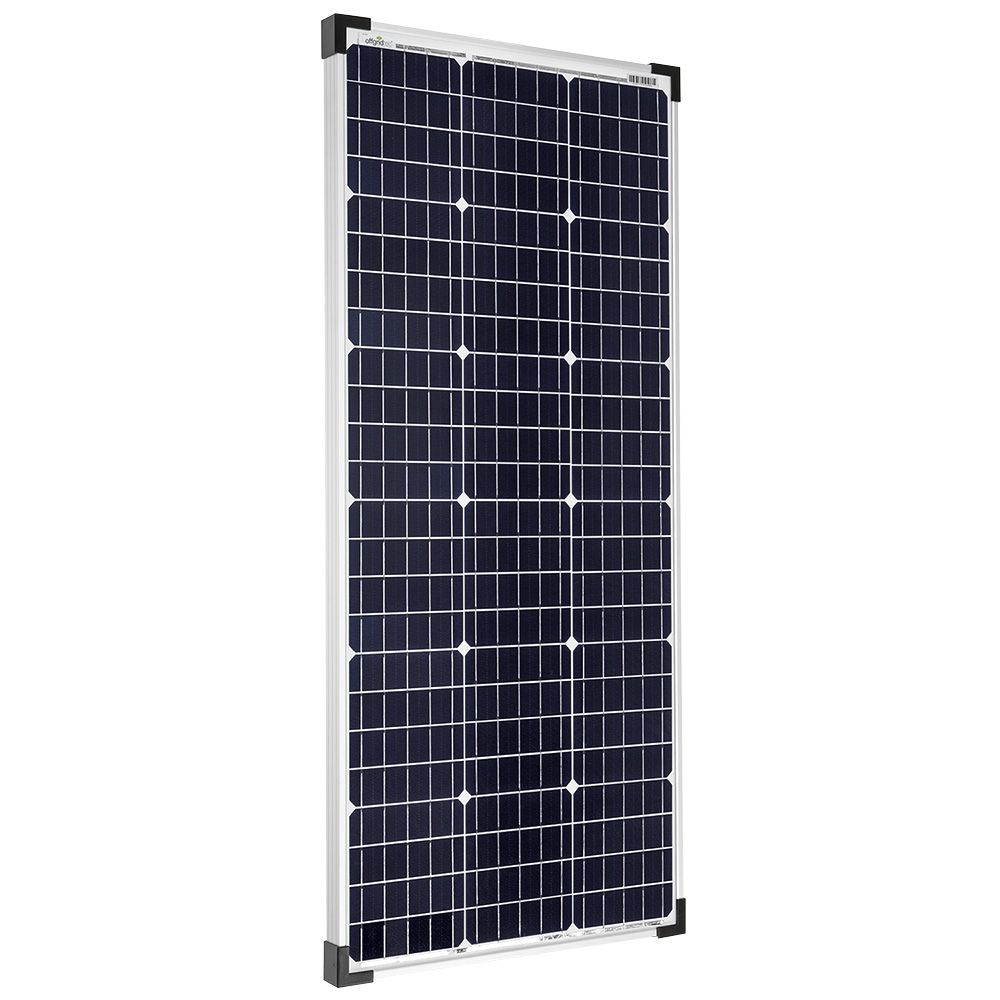

monocrystalline solar module 100W 39V
109,00€
Power (Pmax): 100 watts
Voltage (Vmp): 39.6 V
max. current (Imp): 2.53 A
Open-circuit voltage (Voc): 47.52 V
Short-circuit current (Isc): 2.73 A
max. system voltage: 1000 V
permissible ambient temperature: -40°C to +85°C
Connection cable length: 90 cm each
Dimensions: 520 x 1050 x 35 mm
Weight: 6.15 kg
MC4 connector system
Διαθέσιμο κατόπιν παραγγελίας
The Offgridtec 100 W 39V delivers an output of 100 watts and is equipped with monocrystalline A-grade solar cells, which deliver solid results even in poor lighting conditions. Ideal for 12V or 24V systems (12V only with MPPT charge controllers that can handle the high module voltage).
Offgridtec solar modules are equipped exclusively with cells of the highest quality and, thanks to state-of-the-art manufacturing, guarantee consistently high quality and performance with maximum service life.
Key features of the Offgridtec 100W 39V (24V) mono solar module
Power (Pmax): 100W
proven quality directly from Offgridtec
high operating voltage of 39.6V, perfect for 24V systems
can also be integrated into 12V solar systems when using an MPPT charge controller
manufactured according to the latest standards
monocrystalline A-grade solar cells
Cell structure with 5 busbars
2 bypass diodes – minimized power loss in case of shading
extremely resistant ESG glass makes the module suitable for use even in the most adverse environmental conditions
ideal for 12V-24V systems on land or in mobile solar systems
10-year warranty – information on warranty conditions can be found here
Proven, ready-to-use solar module
The 100W 39V Mono is one of over 40 proven solar panels from the Offgridtec portfolio and benefits from Offgridtec’s experience in manufacturing high-quality 12V and 24V solar cells. Thanks to its extremely resistant solar glass, the module can also be used in very adverse conditions.it can easily withstand storms or extreme cold and heat, and thanks to the monocrystalline A-grade cells, you can expect significant yields even on cloudy days.
Universally applicable
Offgridtec’s 100W 39V (24V) Mono is universally applicable, for example in 12/24 volt solar systems on garden sheds, allotments, or for powering lighting applications, self-sufficient signal and monitoring technology systems, and much more. But this panel also performs well in mobile systems such as motorhome solar systems.
