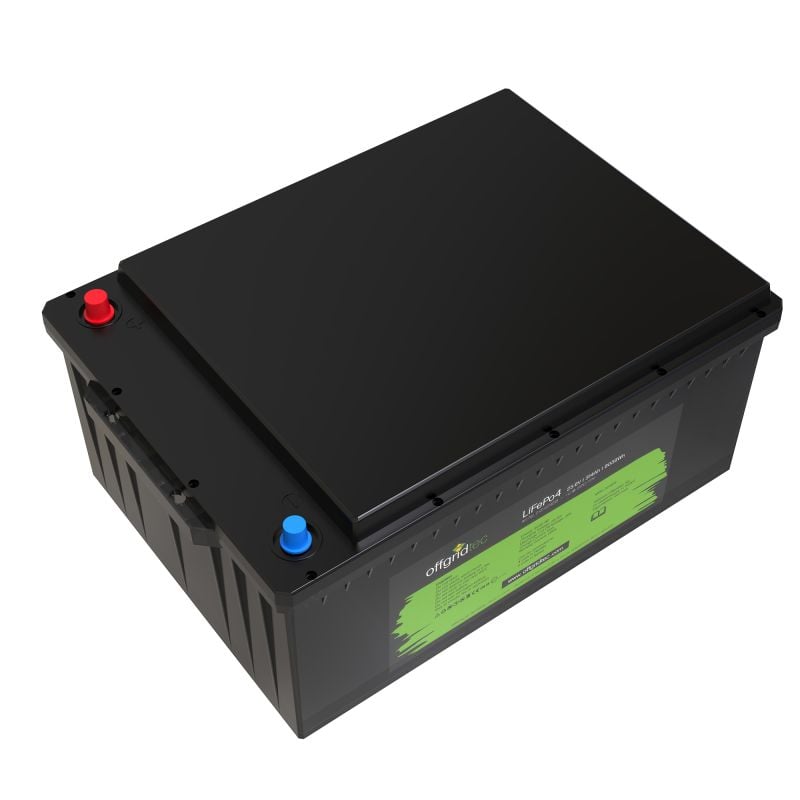

LifePo4 battery 25.6/300 25.6V 314Ah BMS integrated 8038Wh
890,00€
Technical Specifications
- Nominal voltage: 25.6 V
- Rated capacity: 314 Ah
- Max. charging voltage: 28.15 V
- Discharge voltage: 20 V
- Charging current: 60 A
- Max. charging current: 150 A
- Max. discharge current: 200 A
- Rated battery energy: 8,038 Wh
- Connection: M8
- Operating temperature (charging): 0°C – +55°C
- Operating temperature (discharge): -20°C – +65°C
- Protection rating: IP68
- Weight: 48 kg
- Dimensions: 522 x 232 x 365 mm
- Service life: 8,000 cycles
Διαθέσιμο κατόπιν παραγγελίας
LiFePO4 battery 25.6/314 (MPN 024818) is a state-of-the-art and efficient energy storage solution. With a capacity of 314 Ah and a nominal voltage of 25.6 V, it ensures both safety and outstanding performance. Thanks to its compact and maintenance-free design, the battery is easy to install and can be flexibly integrated into custom energy storage systems via parallel connection. Equipped with an integrated Battery Management System (BMS), the battery is protected against overcharging, deep discharge, short circuits, and overheating. This not only extends its service life but also enhances safety during operation. The high-performance battery boasts a service life of up to 8,000 charge cycles, ensuring you’ll benefit from a reliable power supply for a long time to come.
- Integrated BMS with numerous protective features
- Long service life: 8,000 cycles
- UPS, emergency power supply
- Lightweight
- Higher performance
- Superior safety
- Increased flexibility
- Up to 4 units in parallel
- Fast charging, 98% high power density
