ITG300 mechanism with DC gearmotor ITG31 with oscillating shaft
| Family | P73 (M49) | P73 (M47) | P73 (M50) | P73 (M48) |
| Nominal voltage (V) | 12 | 24 | 12 | 24 |
| Number of speed | 1 | 1 | 2 | 2 |
| Test voltage (V) | 13 | 26 | 13 | 26 |
| Nominal power (W) | 39 | 31 | 32.5/49.4 | 31/46.8 |
| Nominal current (A) | 2.5 | 1.2 | 2.5/3.8 | 1.2/1.8 |
| Maximum current (A) | 18 | 10 | 18/21 | 10/12 |
| Nominal Speed (rpm) | 37 | 37 | 37/57 | 37/58 |
| Nominal Torque (Nm) | 4 | 4 | 4 | 4 |
| Starting Torque (Nm) | 26 | 30 | 26/30 | 30/27 |
| Service mode | continuous | continuous | continuous | continuous |
| Protection | IP00/IP40 | IP00/IP40 | IP00/IP40 | IP00/IP40 |
6
βλέπουν αυτό το προϊόν τώρα!
Περιγραφή

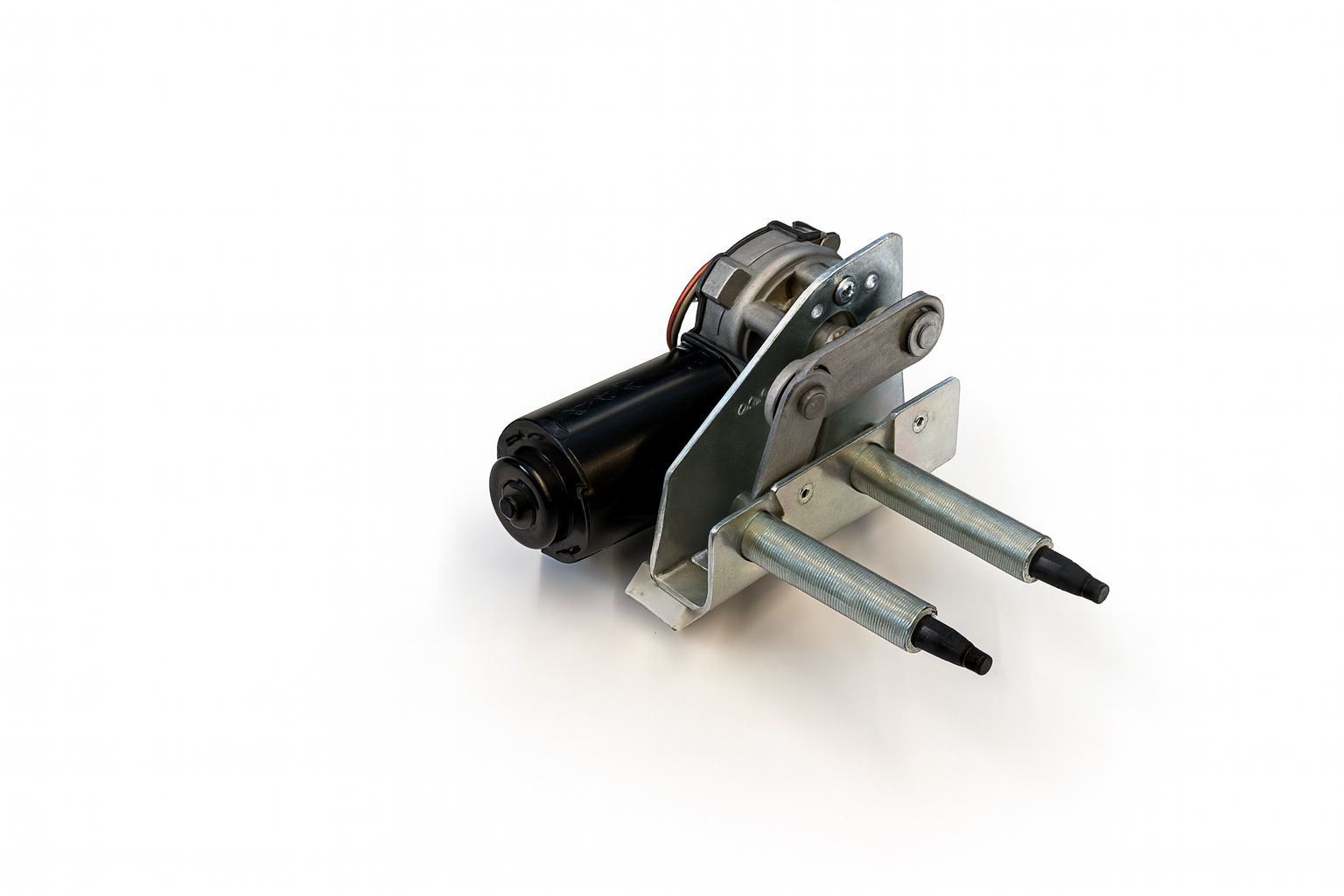

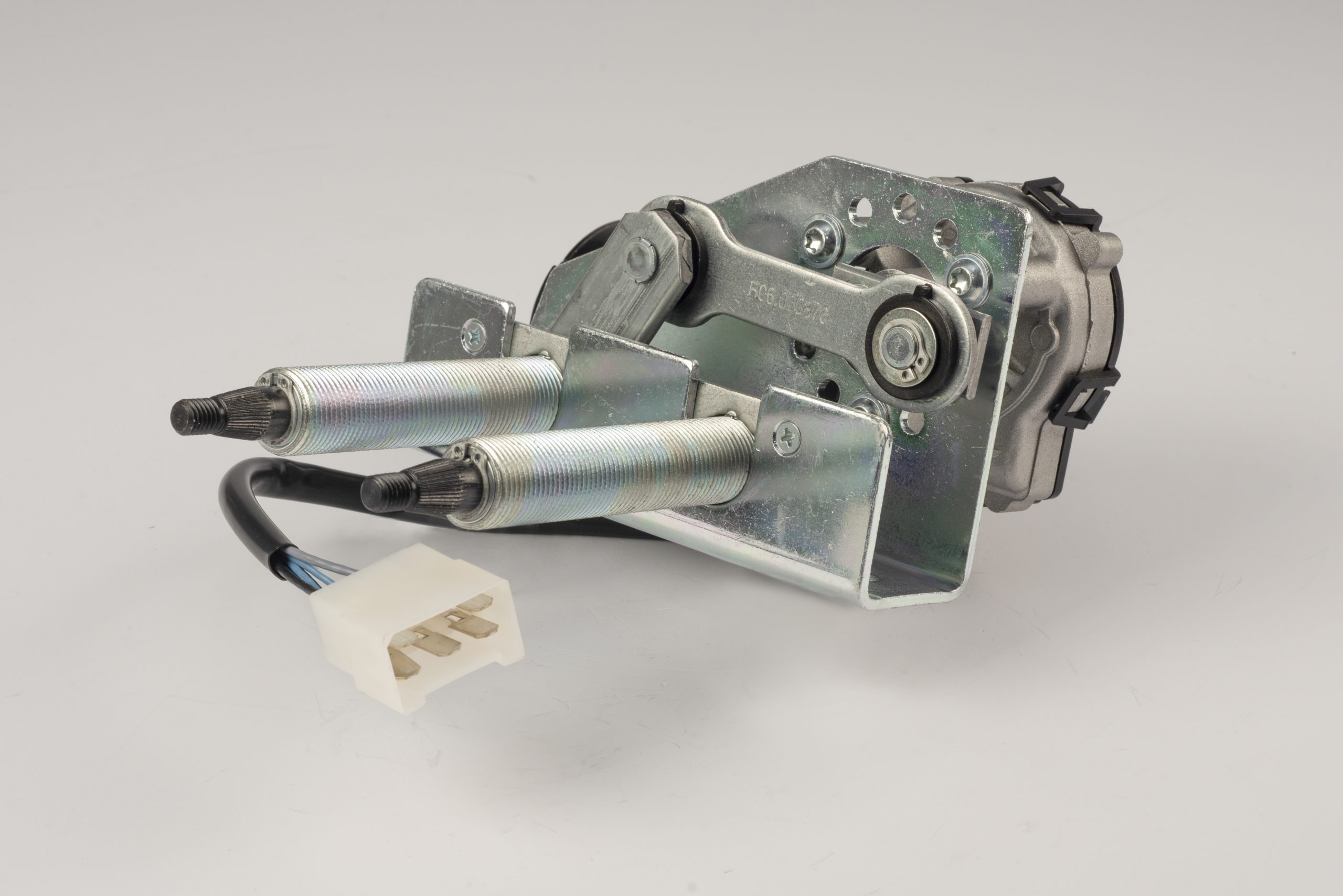

Compact wiper system ITG300 with ITG31 gearmotor, available in 12 V and 24 V, rated for a starting torque of 26 Nm. The oscillating output shaft, single or dual, supports both single-arm and pantograph configurations.
Compatible with bushings of various sizes for installation on different cabin types.
