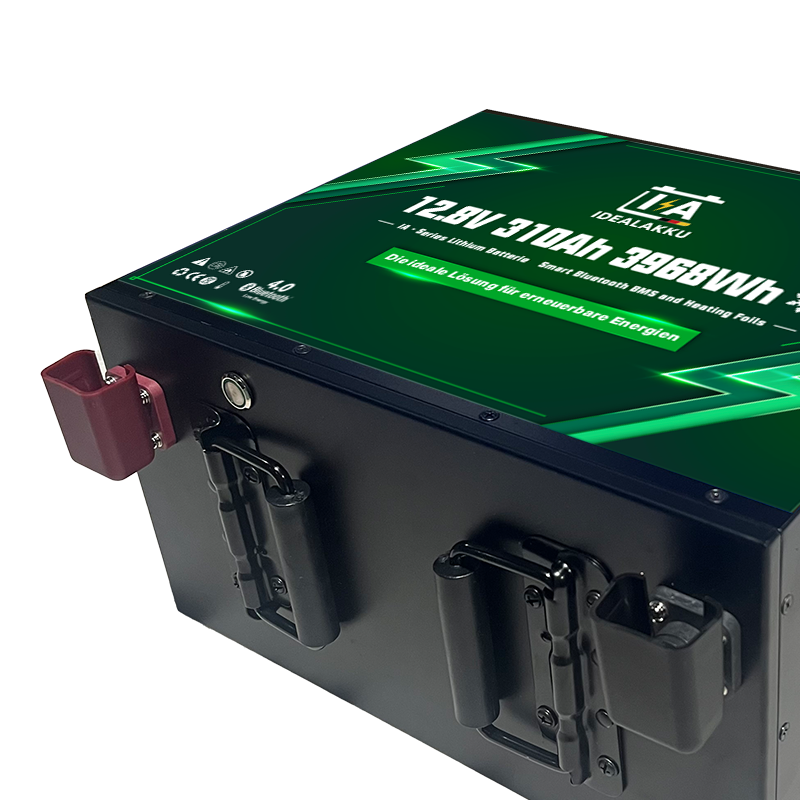

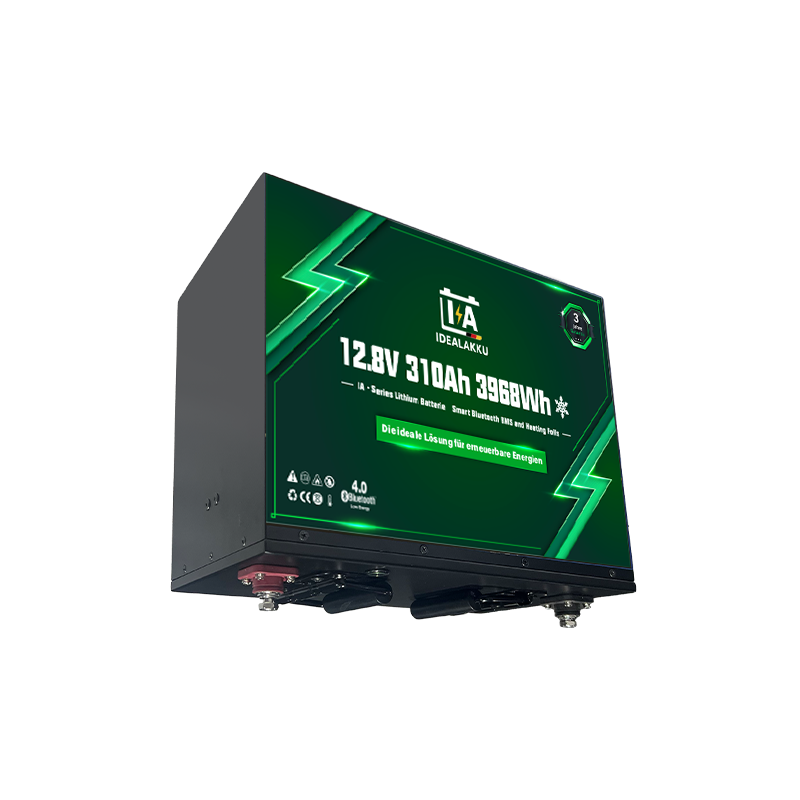

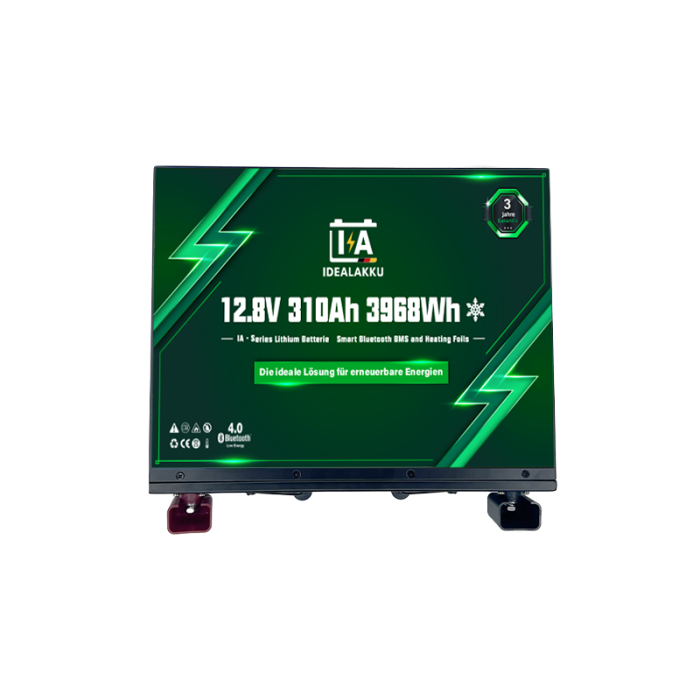

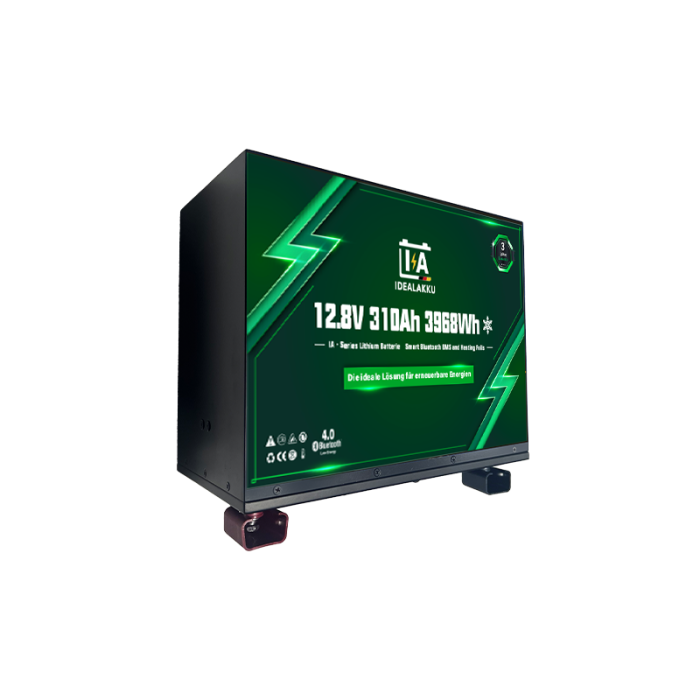

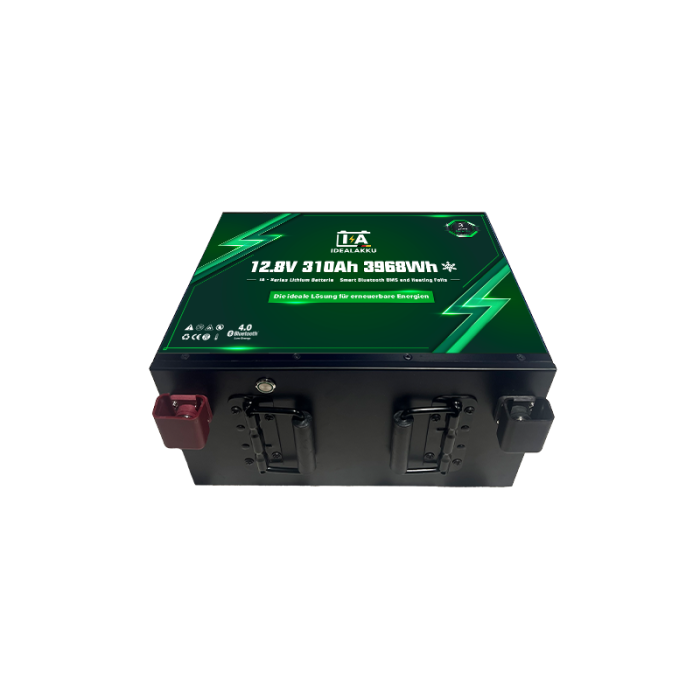

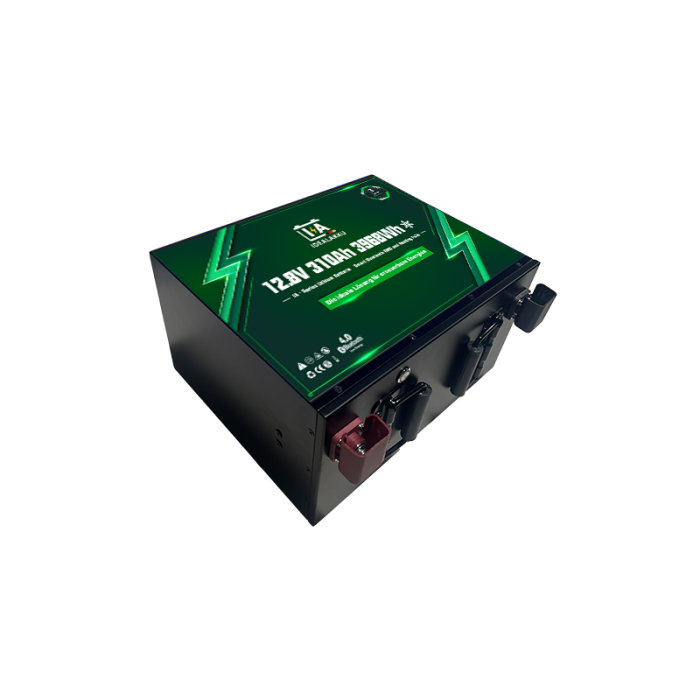

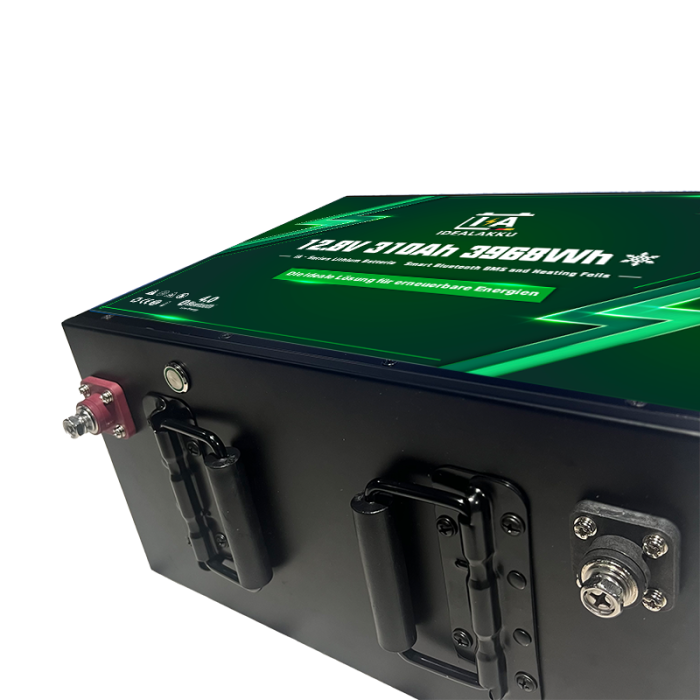

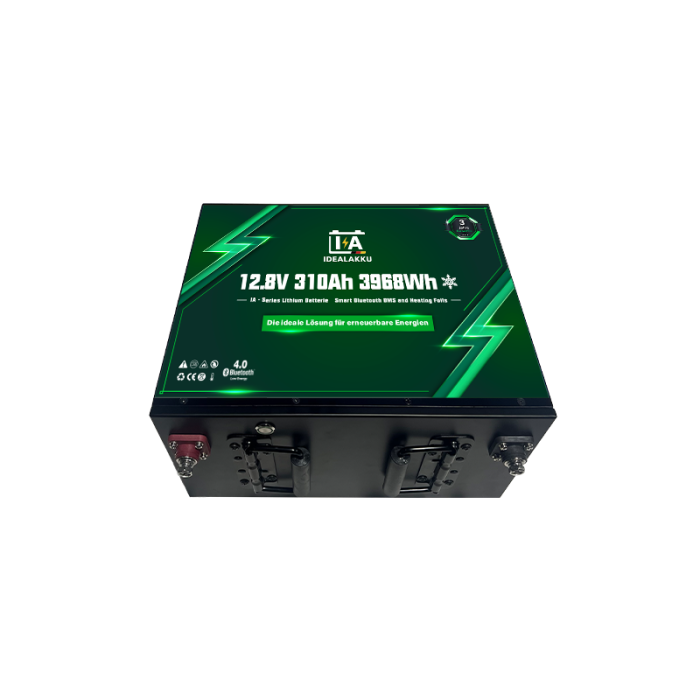

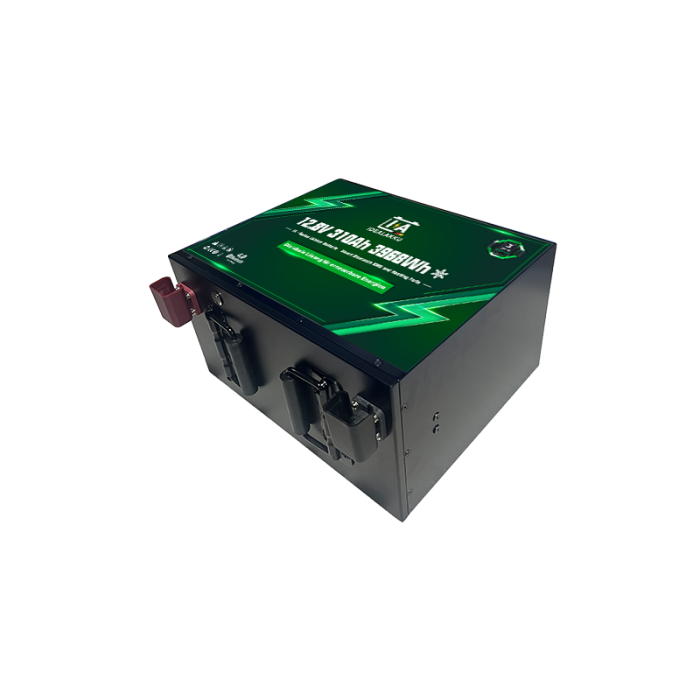

Idealakku Lithium Battery 310Ah 12V LiFePO4 Underseat Smart BMS Bluetooth Heating
3-year warranty
Eliminate lead-acid batteries directly
Lighter weight and easier handling
Lithium iron phosphate is more stable
Excellent stability even under extreme loads
No memory effect, no full charge and discharge cycles required
Deep, regular charging and discharging as well as charging efficiency
Maximum service life of over 6000 cycles
Durable modular design
Screw opening, design perfectly crafted internal structure
– Integrated heating foil, suitable for use in arctic temperatures down to -35°C
– 3-year warranty
– Class A prismatic battery cell
– 300A maximum continuous discharge current
– APP available on Apple Store and Google Play
– Dimensions (L x W x H): 355 × 288 × 190 mm
– Specially adapted to fit under the seat of a Fiat Ducato, Citroën, or Peugeot motorhome
Model 12.8V 310Ah/3968Wh
Replaces lead-gel-AGM battery 12.8V 620Ah
Cell type Prismatic cell
Dimensions with clamps (L x W x H) 355x288x190mm
Weight (without accessories) 30.1kg
Cyclical life >6000@80%DoD
Internal resistance ≤15 mΩ @ 50% SOC
Recommended charging voltage 14.6V
Trickle charging voltage (for standby
use) 13.8±0.8V
Recommended charging current 90A
Max. charging current 155A
Continuous discharge current 300A
Peak discharge cut-off current 640A (200~500ms)
Operating voltage range 10 – 14.6V
End of the discharge voltage range 10 – 11.2V
Terminal type M8
Protection class IP62
Cargo temperature 0~50°C
Discharge temperature -20~75°C
Storage temperature -5~35°C
Operating temperature of the heater -35~5°C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum 4 pieces in series and 4 pieces in
parallel
Certifications CE /UL /UN38.3 /MSDS /ROHS
UN 3480 /CLASS 9/ECE R10
