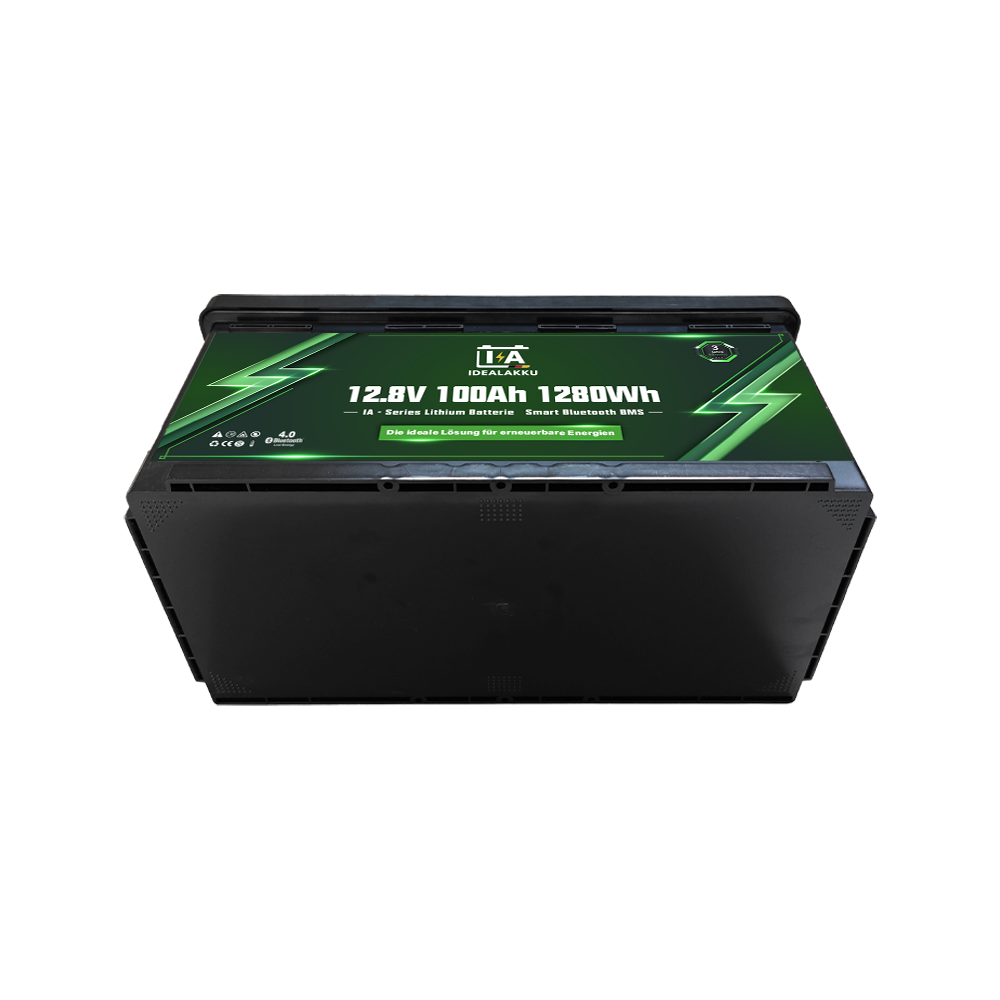

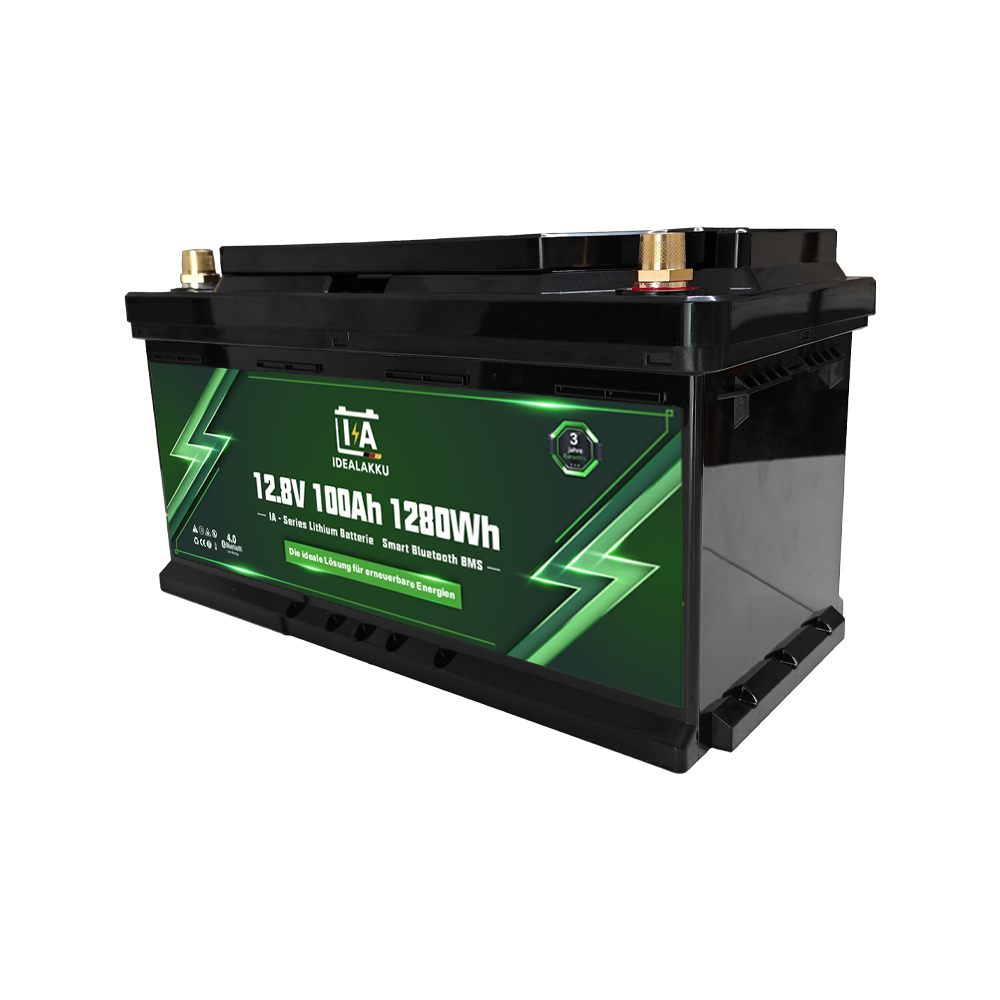

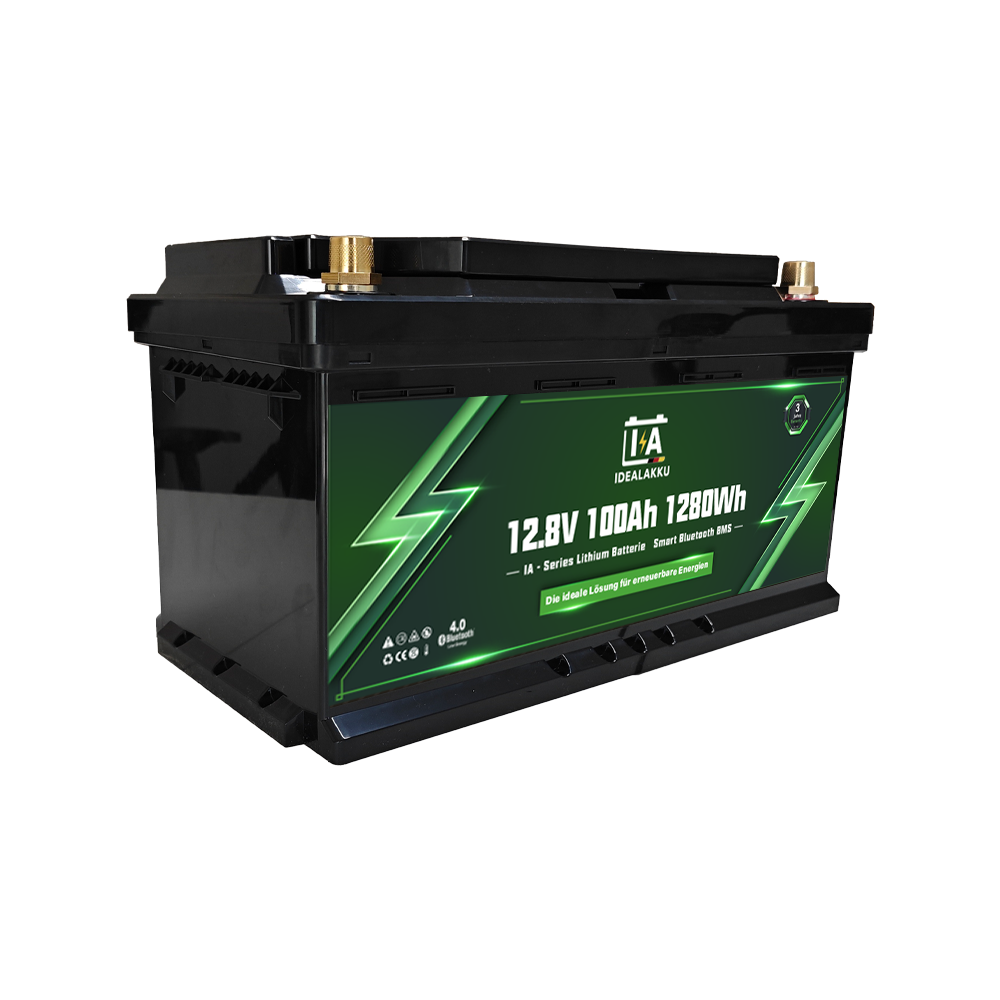

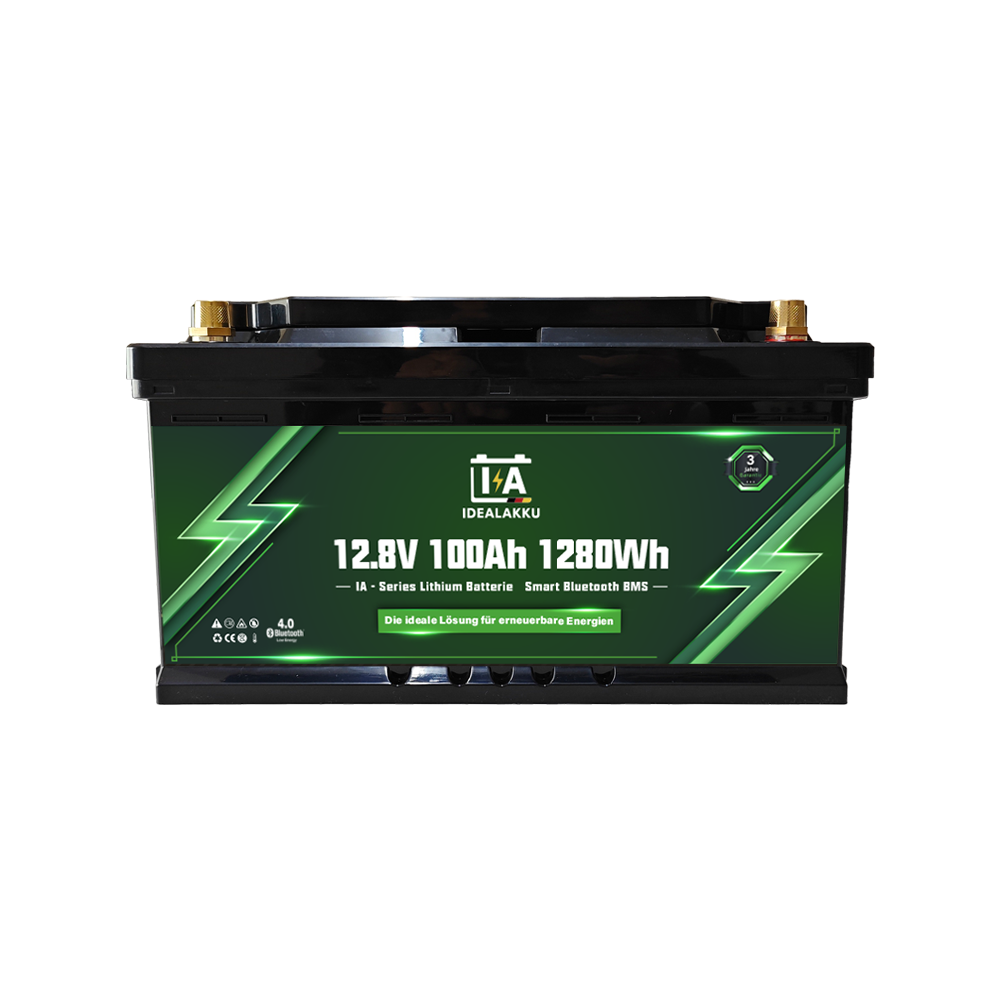

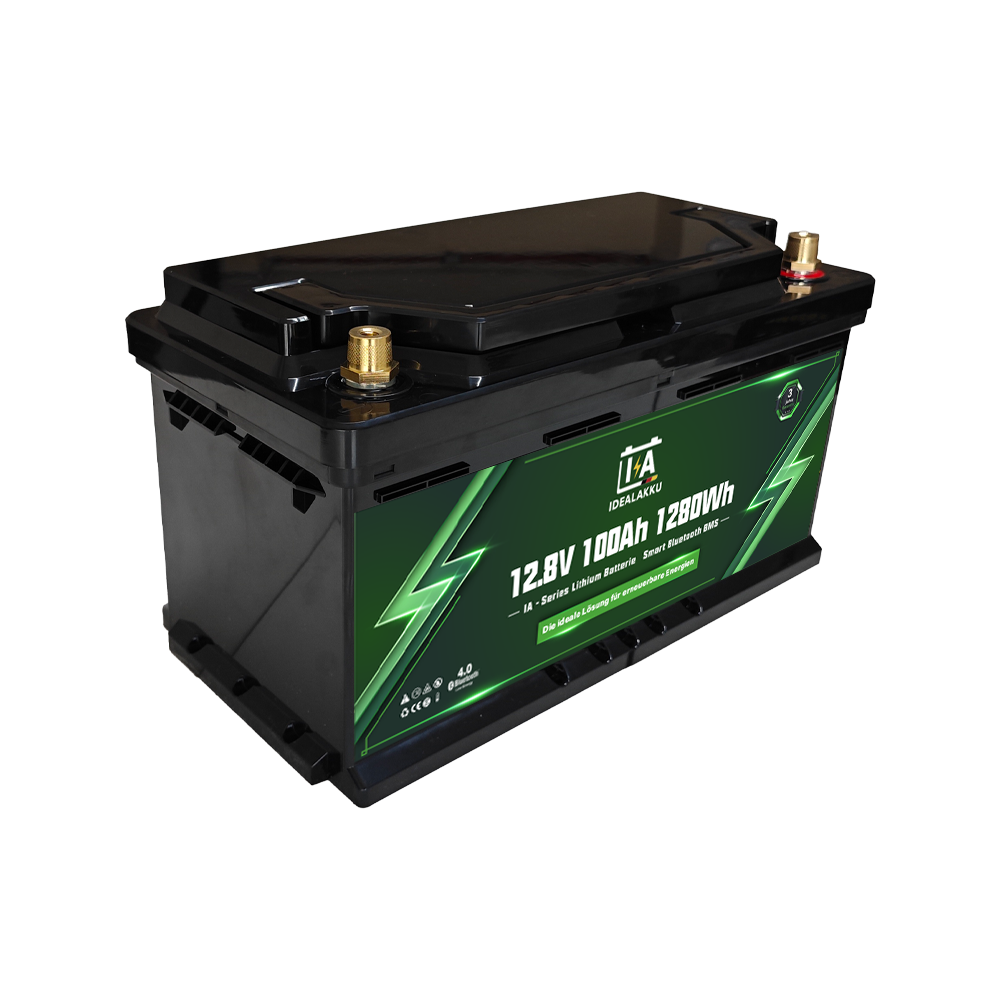

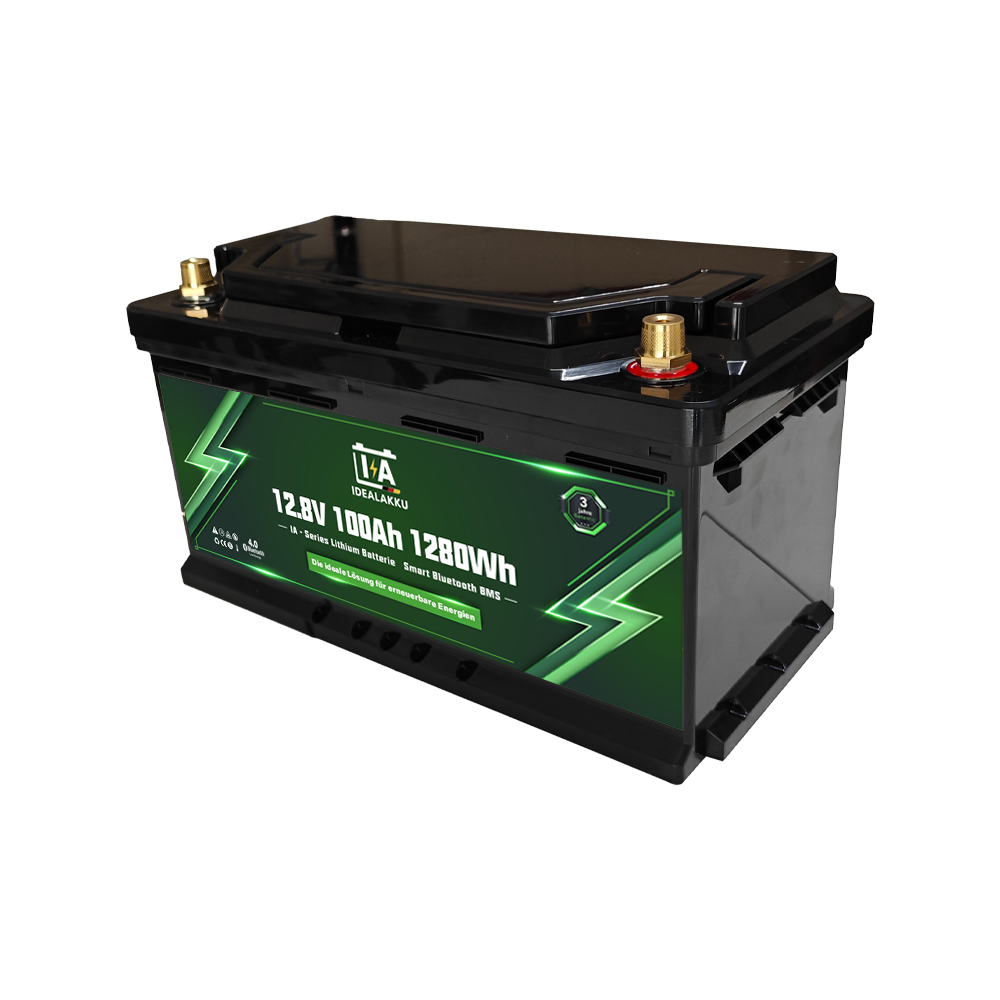

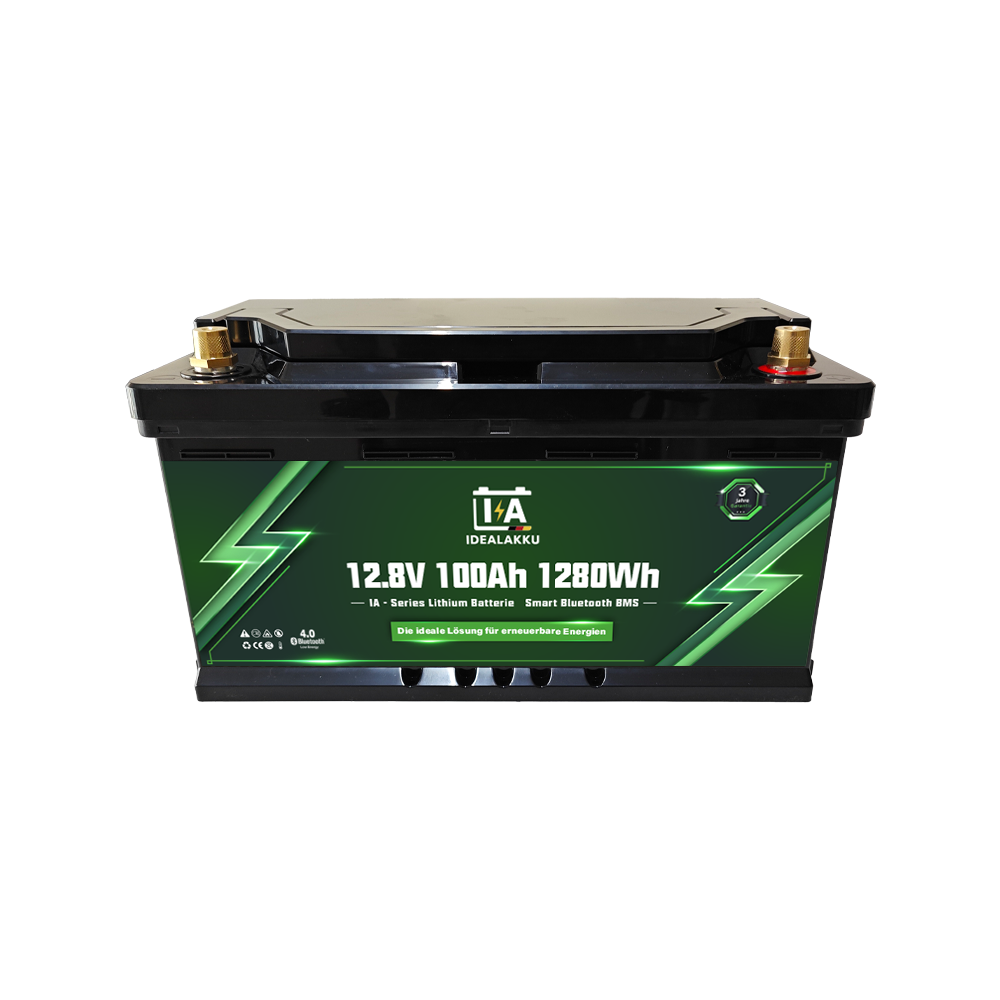

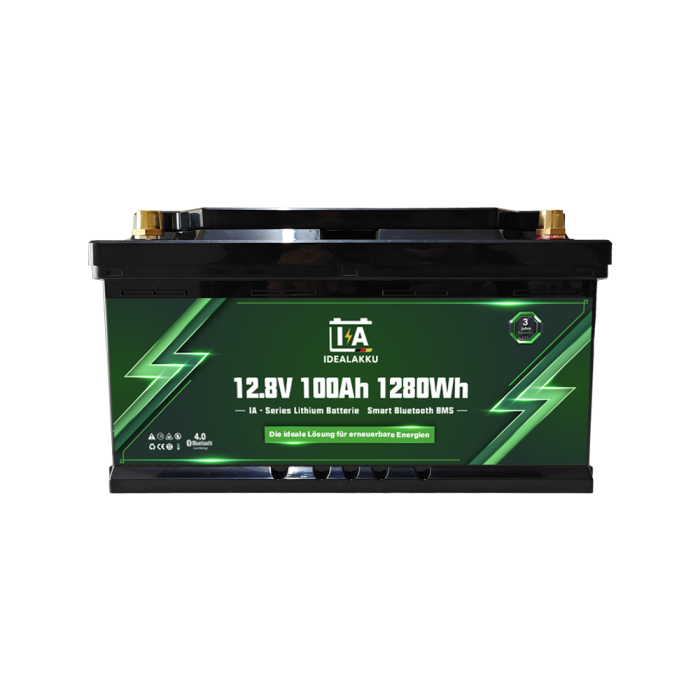

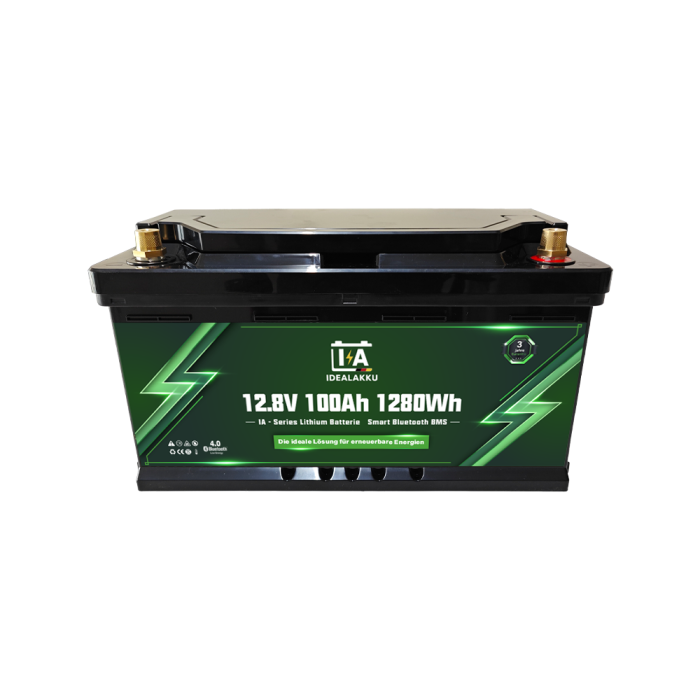

Idealakku IA SERIES Lithium Battery LiFePO4 12V 100Ah Smart BMS with Bluetooth Motorhome Underseat Battery
393,98€
In stock
– 3-year warranty
– Class A prismatic battery cell
– 150A maximum continuous discharge current
– APP available on Apple Store and Google Play
– Dimensions (L x W x H): 355 × 175 × 188 mm – DIN H8/LN5
– Specially adapted to fit under the seat of a Fiat Ducato, Citroën, or Peugeot motorhome
– Constantly improving storage capacity
– High stability even under extreme loads
– No memory effect , no need for full charge and discharge cycles
– High performance even in extreme conditions
– Deep and steady discharge and charge efficiencySmall size and light weight
Διαθέσιμο κατόπιν παραγγελίας
Model 12.8V 100Ah/1280Wh
Replaces lead-gel-AGM battery 12.8V/200Ah
Cell type Prismatic cell
Dimensions with clamps (L x W x H) 355x175x188mm
Weight (without accessories) 10.2kg
Cyclical life >6000@80%DoD
Internal resistance ≤15 mΩ @ 50% SOC
Recommended charging voltage 14.6V
Trickle charging voltage (for standby
use) 13.8±0.8V
Recommended charging current 30A
Max. charging current 50A
Continuous discharge current 150A
Peak discharge cut-off current 450A (200~500ms)
Operating voltage range 10 – 14.6V
End of the discharge voltage range 10 – 11.2V
Terminal type SAE standard
Protection class IP65
Cargo temperature 0~50°C
Discharge temperature -20~75°C
Storage temperature -5~35°C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum 4 pieces in series and 4 pieces in
parallel
Certifications CE /UL /UN38.3 /MSDS /ROHS
UN 3480 /CLASS 9/ECE R10
