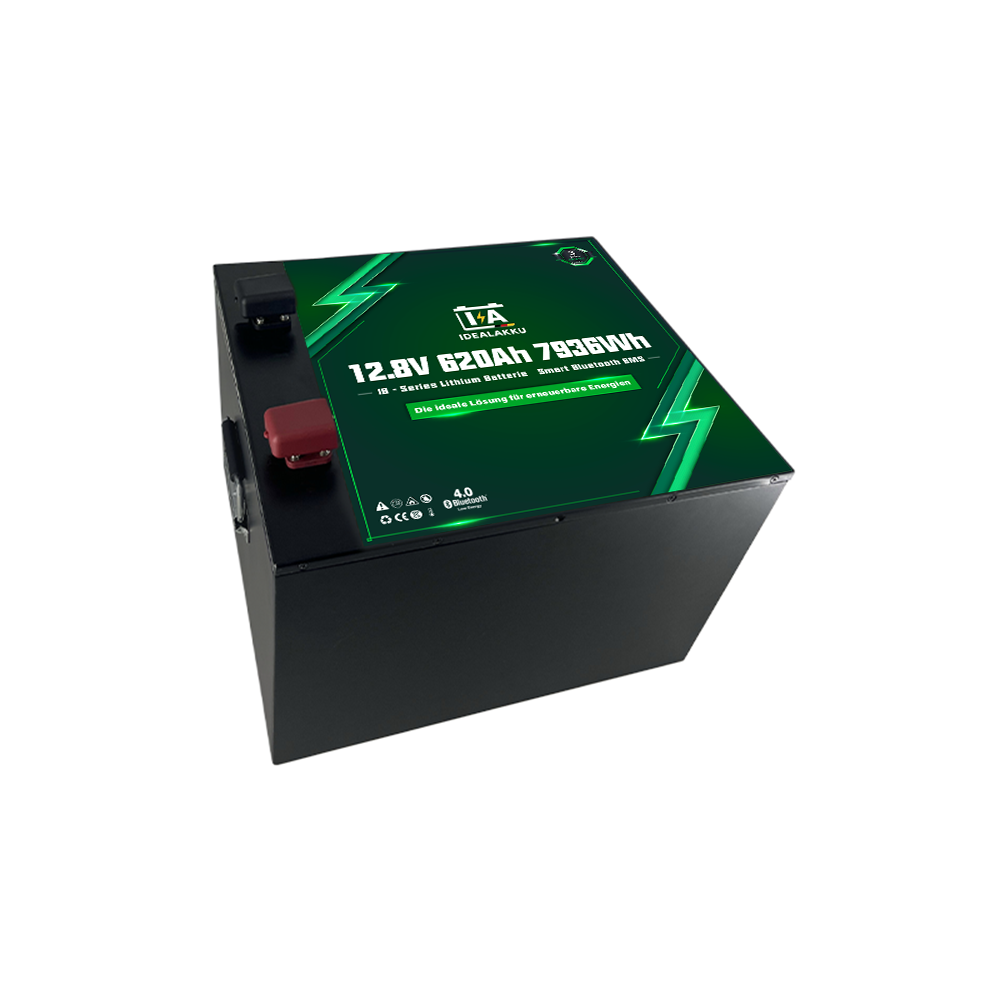

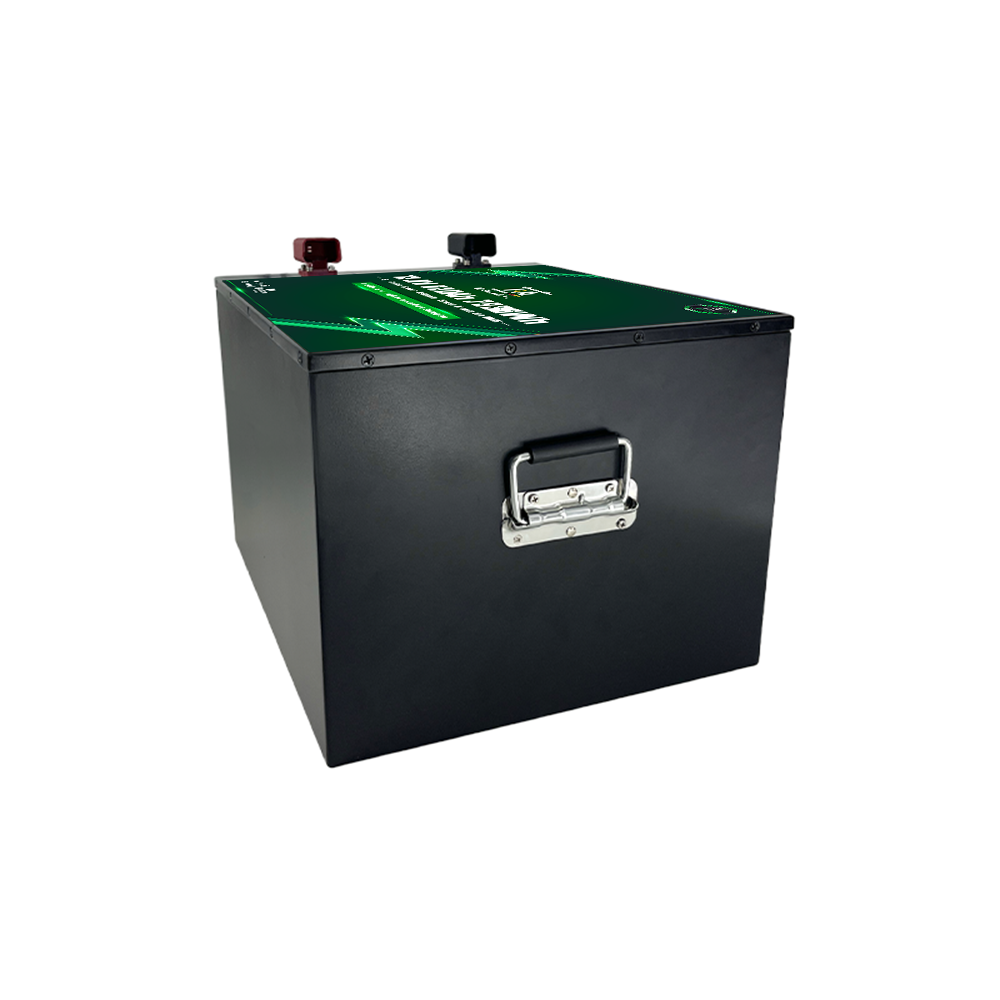

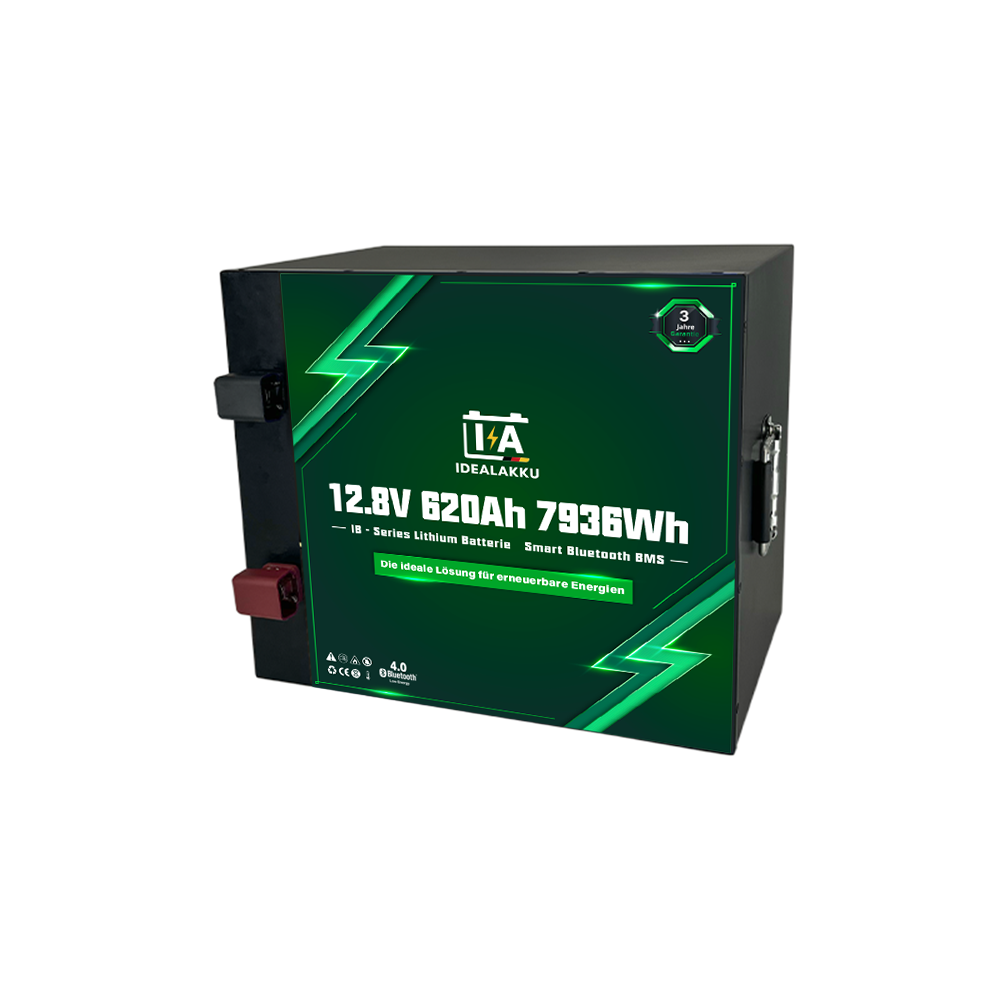

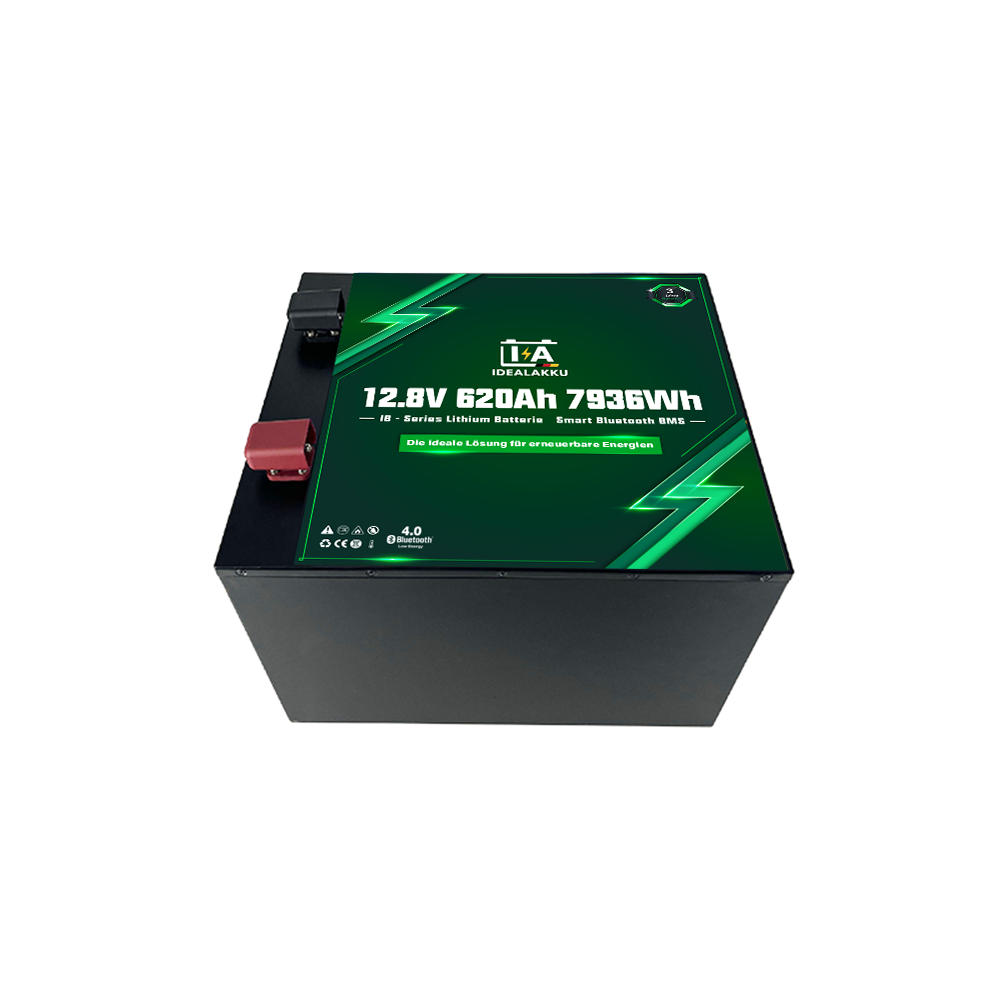

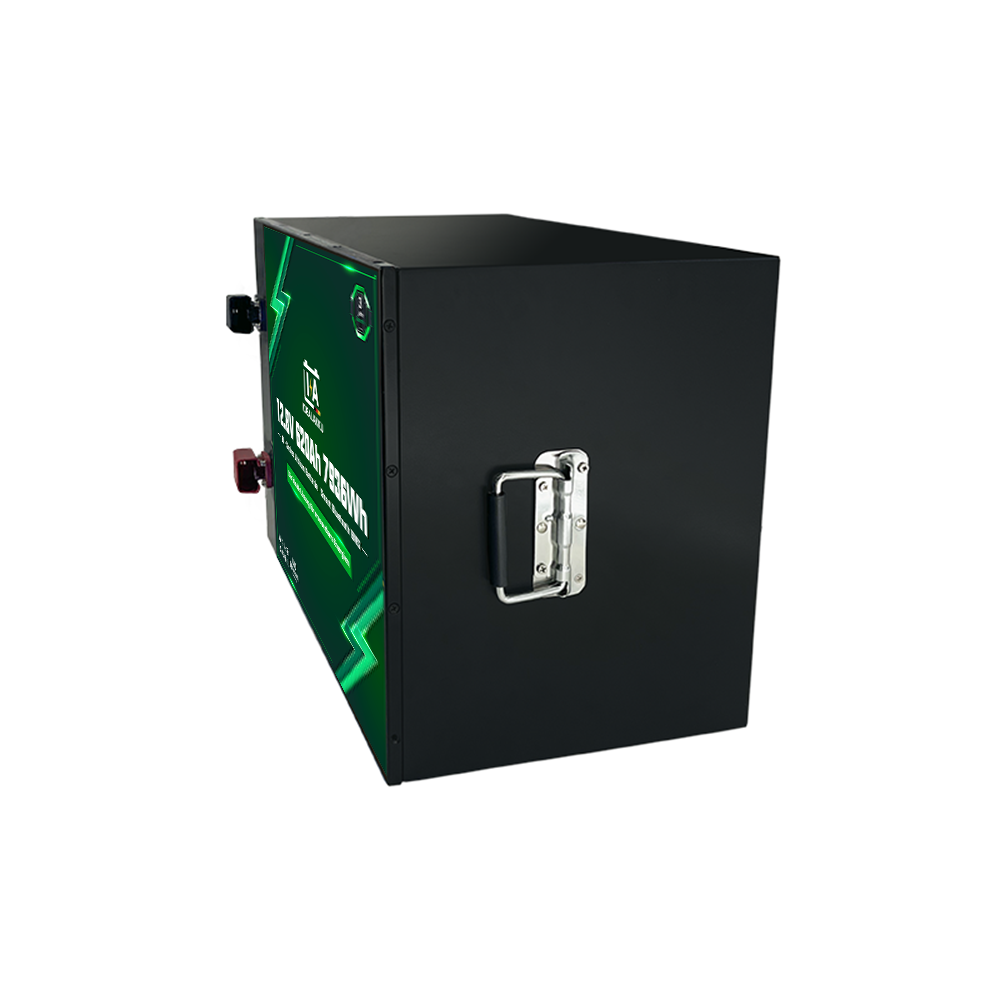

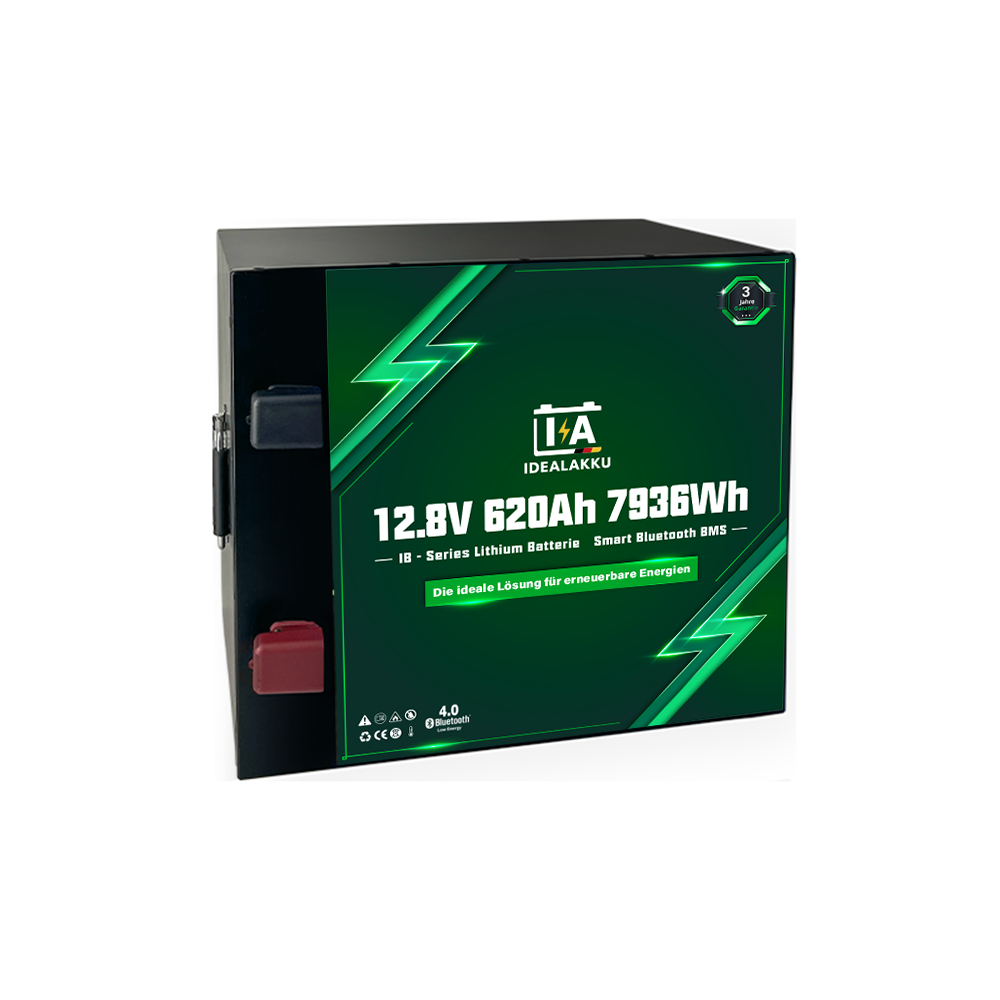

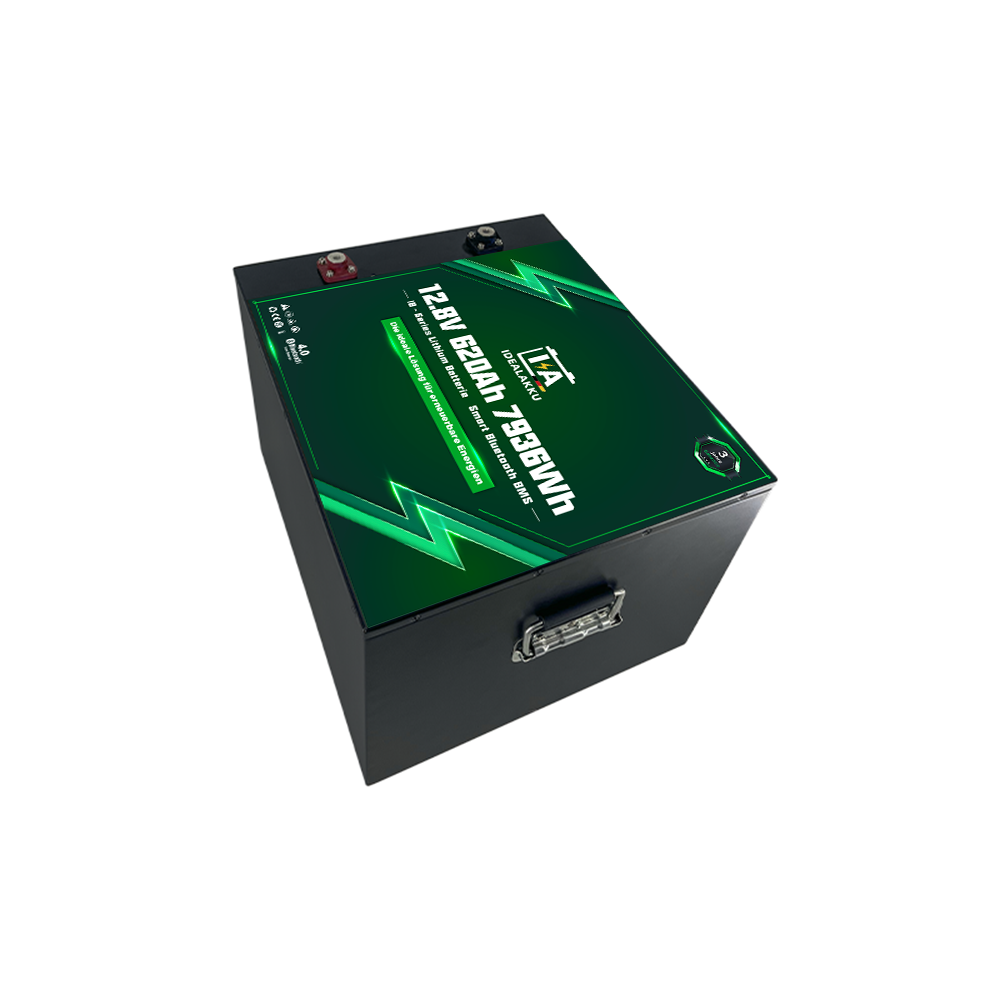

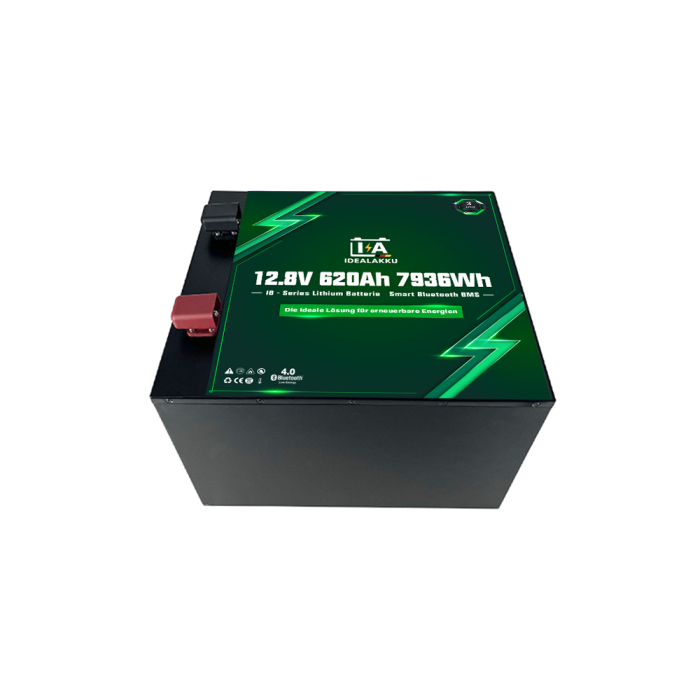

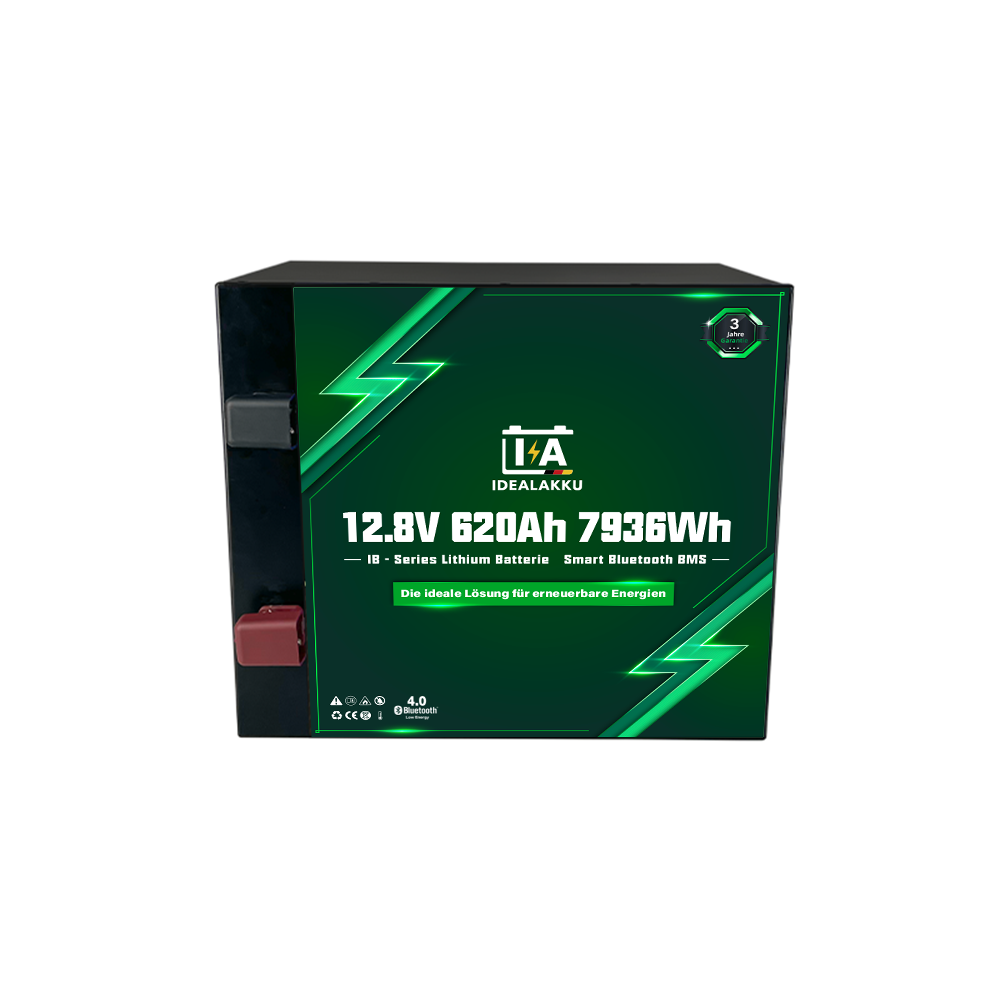

Ideal battery IB SERIES lithium battery LiFePO4 12V 620Ah Smart BMS with Bluetooth
2.640,00€
3-year warranty
Remove lead-acid battery directly
Lighter weight and easier handling
Lithium iron phosphate is more stable
Excellent stability even under extreme loads
No memory effect, no complete charge and discharge cycles required.
Deep, regular charging and discharging, and charging efficiency
Maximum lifespan of over 6000 cycles
Durable modular design
Screw opening, perfectly crafted internal structure design
– Class A prismatic battery cell
– 300A maximum continuous discharge current
– App available in the Apple Store and on Google Play
– Dimensions (L x W x H) mm: 440 × 375 × 300 mm
Διαθέσιμο κατόπιν παραγγελίας
Model 12.8V 620Ah/7936Wh
Replaces lead-acid gel AGM battery 12V/1240Ah
Cell type Prismatic cell
Dimensions including clamps (L x W x H) 440x375x300mm
Weight (without accessories) 61.6 kg
menstrual cycle >6000@80%DoD
Internal resistance ≤7 mΩ
Recommended charging voltage 14.6V
Maintenance charging voltage (for standby use) 13.8±0.8V
Recommended charging current 100A
Max. charging current 150A
Continuous discharge current 300A
Peak discharge cutoff current 800A ±150A
Operating voltage range 10 – 14.6V
End of the discharge voltage range 10 – 11.2V

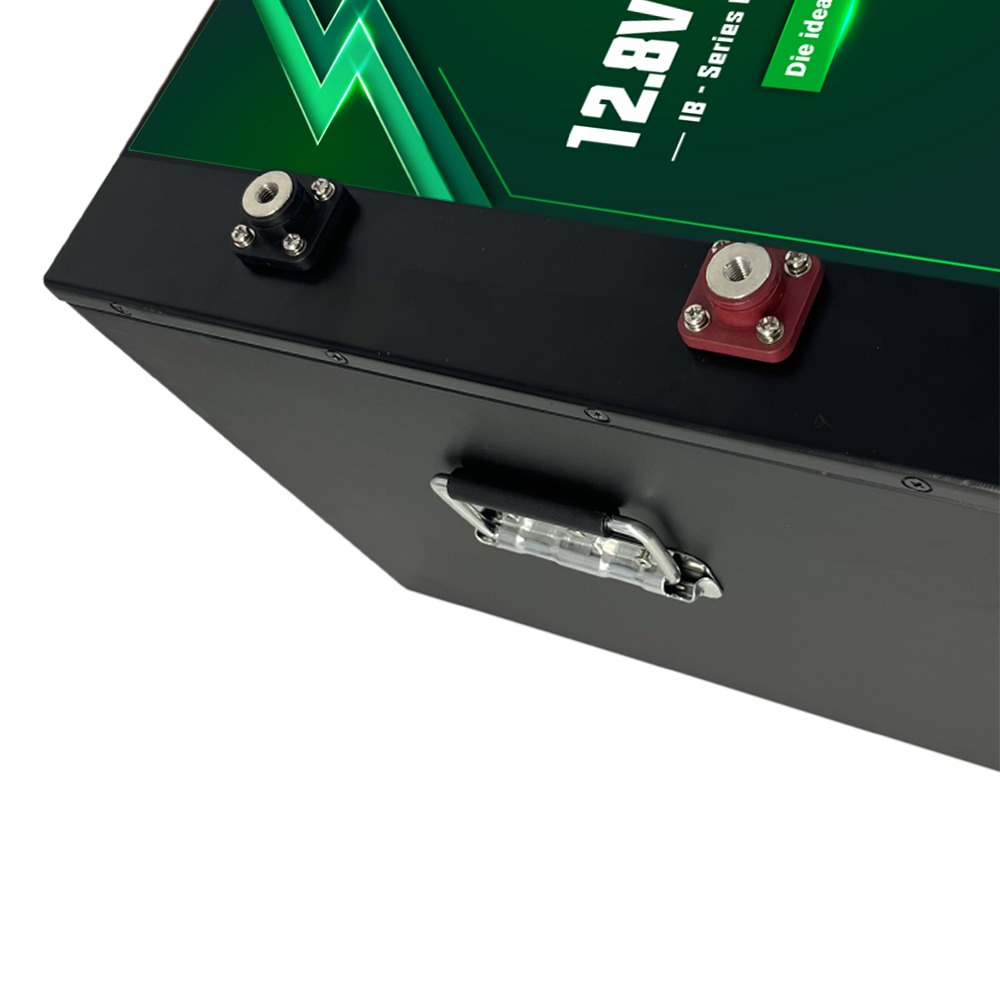

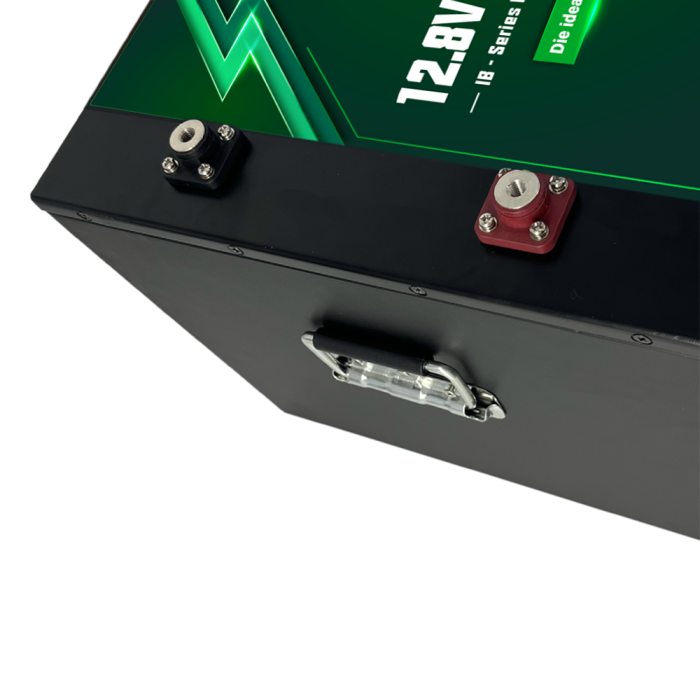

Terminal type M8
Protection class IP62
Charging temperature 0~50°C
Discharge temperature -20~75°C
Storage temperature -5 to 35°C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum 4 pieces in series and 4 pieces in parallel connection
Certifications CE /UL /UN38.3 /MSDS /ROHS/UN 3480 /CLASS 9
