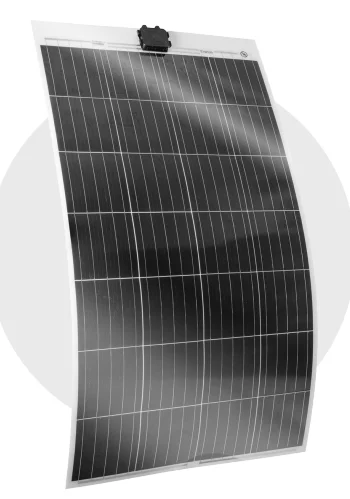

ENECOM HF145
Built with high-performance aerospace solar cells. Latest generation ultrathin and ultraflexible panels (1.7 mm). 17.25% mono-crystalline cell efficiency. The panel is a sandwich construction made up of a plastic support + solar cell + UV-resistant epoxy resin surface coating. Installation by means of double-sided tape. Connection cable with plug, included. Version A: mono-crystalline panels. Version B: fitted with Sun Power top-efficiency cells. This results in more compact dimensions and 23% higher efficiency over standard cells.
ENECOM DATA SHEET : HF145ENECOM DATA SHEET
Type Monocrystalline Model No. HF 145
Power Tolerance 0 ~ +5 %
Electrical Data at STC
Maximum Power (Pmax) 145 Wp
Voltage at Maximum Power (Vmpp) 15.8 V
Current at Maximum Power (Impp) 9.2 A
Open Circuit Voltage (Voc) 18.4 V
Short Circuit Current (Isc) 9.7 A
Electrical Data at NOCT Temperature 47.5 °C
Operating Temperature Range -40 – 80 °C
Temperature Coefficient of Pmax -0.36 %/°C
Temperature Coefficient of Voc -0.36 %/°C
Temperature Coefficient of Isc 0.06 %/°C
Maximum System Voltage 600 V
Panel Dimension (H/W/D) 1215x671x1.7 mm
Weight 2 kg
Cell Size 158.75×158.75 mm Frame Type Frameless
Junction Box Diodes 2
Connector Type MC4
Cable Length 1000 mm
| Βάρος | 2 κ. |
|---|---|
| Διαστάσεις | 1350 × 660 × 2 mm |
