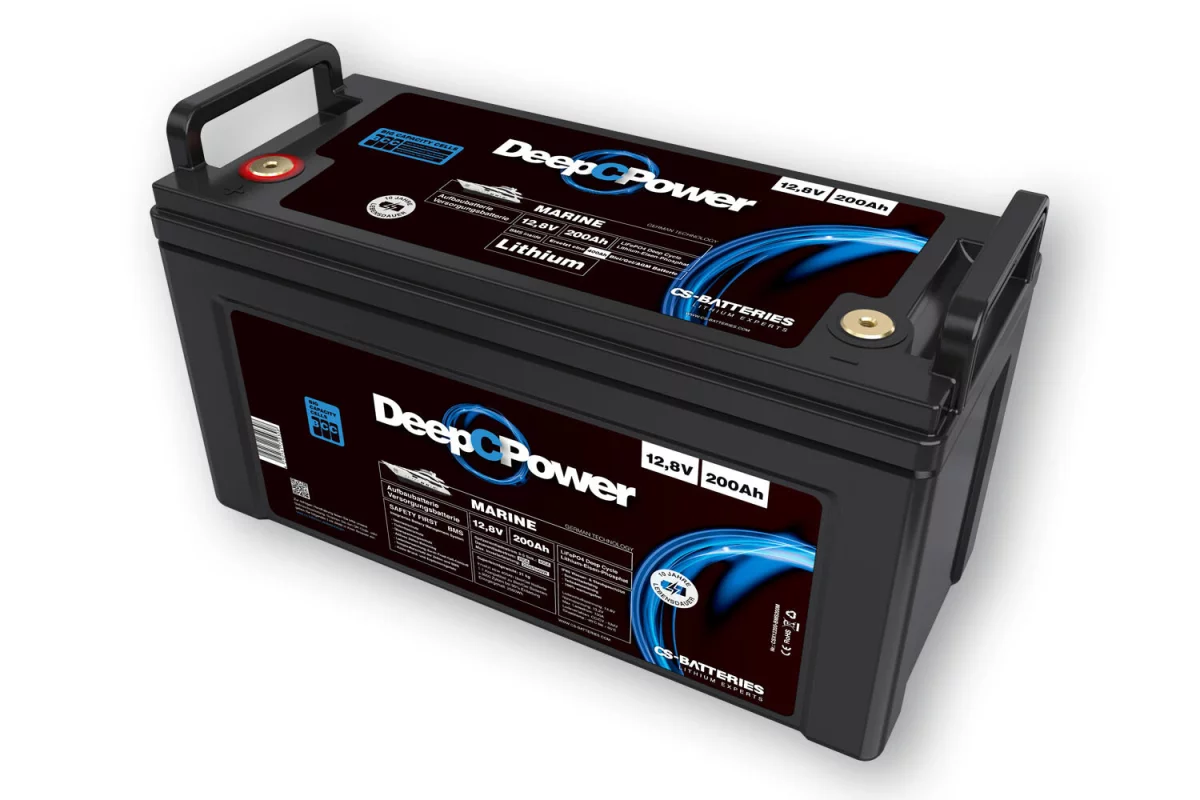

CS Lithium LiFePO4 -Marine / Boat- Battery 12,8V | 200Ah | 2560Wh
High current resistance
Replaces a 12V / 400Ah lead battery
Built-in BMS
Very low weight, only 21kg
Fast charging capability
NEW: Optimized software for parallel connection with large battery banks
NEW: “Alternator-Protected” no additional electronics required to protect the Lima
NEW: including battery pole adapter -fluted & nickel-plated-
NEW: Sealed housing protection class IP67
High intrinsic safety, LiFePO4 cannot burn!
Can be used in all situations
Temperature stable
Over 3000 cycles at 90% discharge
Lifetime up to 10 – 20 years
100% maintenance-free
Environmentally friendly, no lead, no acid
The lithium iron phosphate battery (LiFePO4) is the safest of the lithium-ion battery family. It is high-current resistant, can be used universally and is lighter than lead, gel or AGM batteries. In addition, the latest lithium-iron technology offers a high degree of intrinsic safety, so that there is no risk of explosion even under the most extreme conditions. A 12.8V LiFePO4 battery consists of 4 individual cells connected in series and 2 in parallel, each with a nominal voltage of 3.2V. A built-in battery management system (BMS) also protects the battery cells from damage. Advantages of our LiFePO4 DeepC-Power battery compared to lead batteries:
High discharge rates possible up to the specified capacity
More payload is possible due to the up to 60% lower weight
Due to the smaller space requirement, more capacity can be carried in the same space
Up to 10 times longer service life thanks to the high number of cycles of LiFePO4 technology
Extremely fast charging of the cells possible
Complete discharge of the specified nominal capacity possible
The battery is protected by a battery management system (BMS)
The battery is charged in the boat using standard lead or acid chargers with a final charging voltage of 14.6V
The battery is winter-proof and does not need to be removed down to -20° C
Delivered fully charged, install and drive off
The battery has M8 screw connections as standard, which can optionally be fitted with our extra-light pole adapters
No modification to the boat or the additional electronics is required to use the battery
The low self-discharge means that a sealed battery can be stored for up to 12 months without any problems
For more capacity, you can connect any number of batteries in parallel
For more voltage, you can connect up to 4 batteries (maximum 48V) in series
Battery Management System (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Important functions of a battery management system:
&overload protection
Deep discharge protection
&overvoltage protection
Active cell balancing
Charge monitoring and control
Temperature protection of the cells
Temperature protection of the BMS
Short-circuit protection
