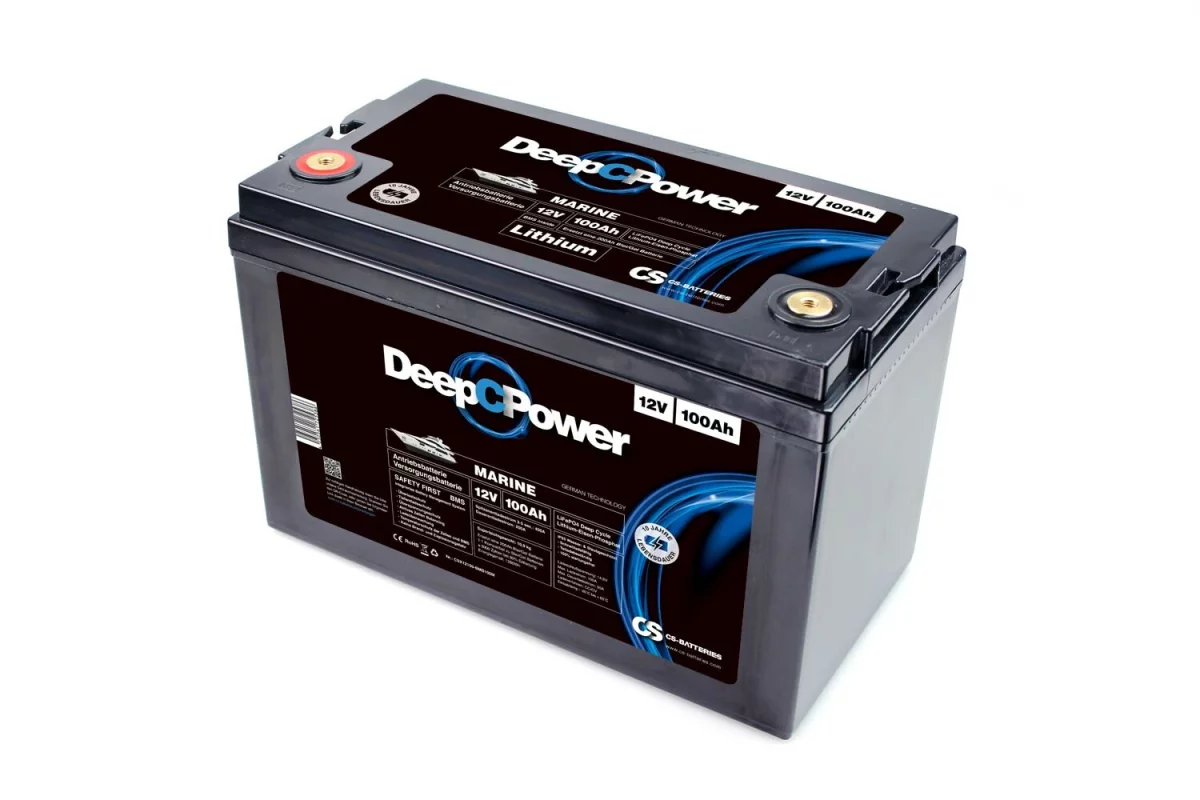

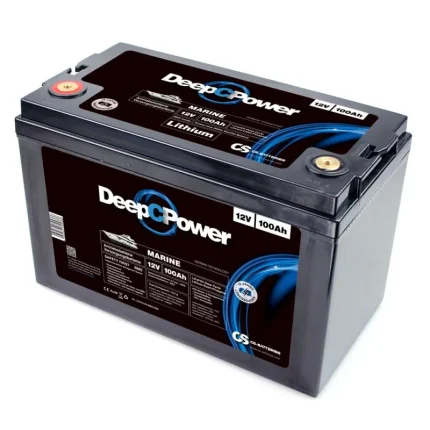

CS 100Ah 12V Lithium LiFePO4 Marine/Boat Battery
Specifications:
Model: CSX12100-BMS100M
Type: drive battery, supply battery
Rated capacity: 100Ah
Energy content: 1280 Wh
Cell technology: Lithium iron nanophosphate LiFePO4
Cell type: Big Capacity PrismaticCells (BCC)
Replaces a: 12V / 200Ah lead gel battery
Application: 12V installations, electric drives, solar
Application of parallel connection: Yes, any number of the same type possible
Series circuit application: Yes, 24V, 36V and maximum 48V possible
Operating voltage: 9.2 – 14.4V
Rated voltage: 12.8V
Lifetime: = 10 years
Cycle duration at 50% DoD: = 5000
Cycle duration at 80% DoD: = 3500
Cycle duration at 90% DoD: = 3000
Loaders: CCCV / IU / IUoU
End-of-charge voltage: 14.6V
Maximum charging current: 100A / 1C
Maximum continuous charging current: 50A / 0.5C
Charging current for max lifespan: 33A / 0.33C
Continuous discharge current: 200A
Peak discharge current (3-5 sec.): 400A
Maximum inverter power: to 2560W
End-of-discharge voltage: 9.2V
Temperature range (discharge): -20°C to +65°C
Temperature range (charge): 0°C to +50°C
Temperature range (storage): -20°C to +65°C
Battery Management System (BMS): Yes, built-in
Balancer: Yes, active balancer
Self-discharge: 1-2% / month
Installation position: any
Connection: M8 screw or cone
NEW: Protection class: IP67 water & dust protected
Weight: 10.9kg
Dimensions (WxDxH): 330 x 170 x 220 mm
NEW: Manufacturer’s warranty: 5 years
High discharge currents possible up to the specified capacity
Due to the up to 60% lower weight, more payload is possible
Due to the smaller space requirement, more capacity can be carried in the same space
Up to 10 times longer service life due to the high number of cycles of the LiFePO4 technology
Extremely fast charging of the cells possible
Complete discharge of the specified nominal capacity possible
The battery is protected by a battery management (BMS)
Charging in the mobile home is carried out using standard lead or acid chargers with a final charging voltage of 14.6V
The battery is winterproof and does not have to be removed down to -20°C
Delivered fully charged, install and drive off
The battery has M8 screw connections as standard, which can optionally be equipped with our extra-light pole adapters
No changes to the motorhome or additional electronics are required to use the battery
Due to the low self-discharge, a closed battery can be stored for up to 6 months without any problems
For more capacity, you can connect any number of batteries in parallel
For more voltage you can connect up to 4 batteries (maximum 48V) in series
