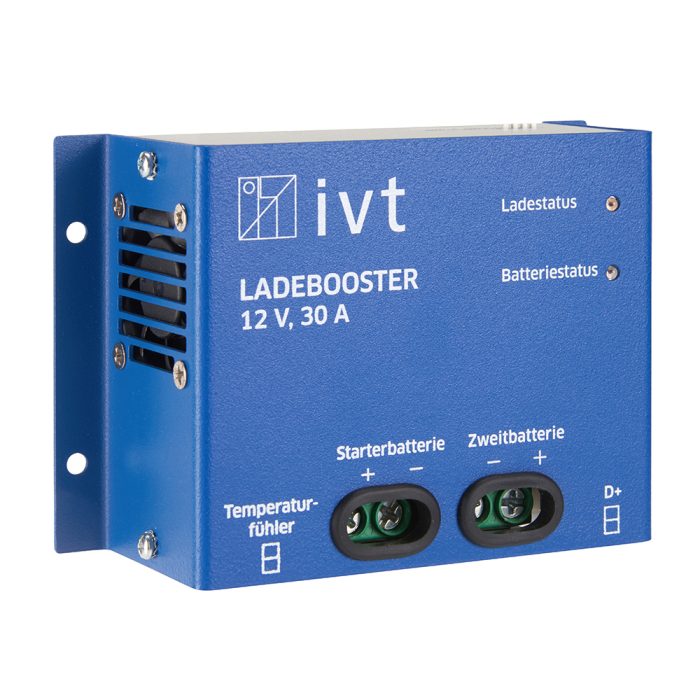

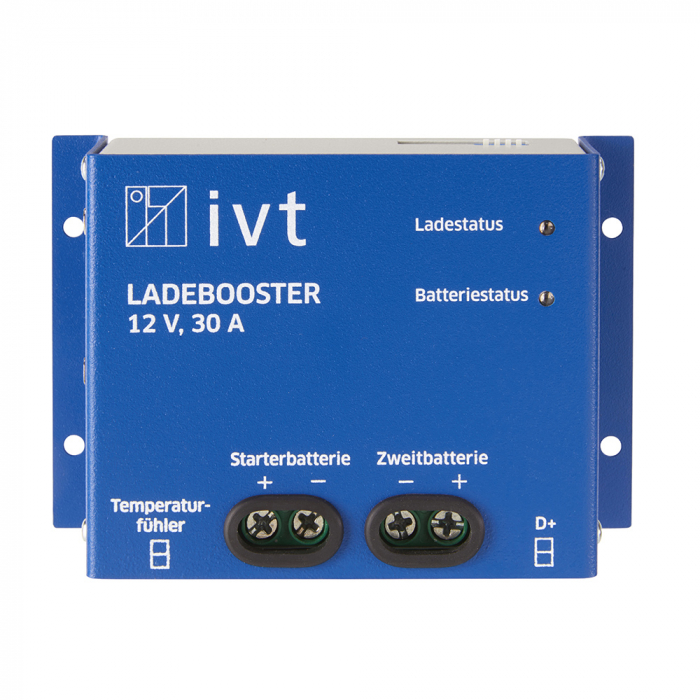

Charging Booster IVT 12 V, 30 A
160,00€
For charging 12 V car batteries while driving
Mandatory for Euro 6 vehicles
Can also be used for 12 V solar applications
Adjustable charging modes: 30 A and 10 A
For lead-acid, lead-gel, AGM and LiFePO4
Current-dependent switchover to charge retention
Fast charging through constant current charging (IUoU)
Extensive protection functions
Διαθέσιμο κατόπιν παραγγελίας
Input voltage 9 V DC to 16 V DC
Output voltage 9 V DC to 15 V DC
Power consumption, max. 420 W (30 A mode) 140 W (10 A caravan mode)
Charge current, max. 30 A (30 A mode) 10 A (10 A caravan mode)
Supported types of battery lead-acid, lead-gel, AGM, lithium
Battery capacity from 35 Ah
End-of-charging voltage 14.4 V lead-acid 14.7 V lead-gel, AGM 14.4 V lithium
Trickle charging 13.8 V lead-acid
13.7 V lead-gel, AGM 14.4 V lithium
Temperature range -10 °C to +70 °C
Charging characteristic IUoU (current-dependent
switchover to charge retention)
Temperature compensation -25 mV/°C (only with connected temperature sensor)
Temperature compensation limitation between 12.6 V and 15.7 V
Switchover to trickle charging I < 2.0 A Switchover to charging I > 3.0 A
Charge current limit 100 % charge current at Uin > 11.7 V
0 % charge current at Uin < 11.0 V
Own power consumption < 1 mA (no D+ signal applied)
< 80 mA (normal mode)
< 20 mA (output disconnected)
Control signal (D+) 2 V DC to 16 V DC
Control current (D+) < 1 mA
Efficiency factor = 90 % (with max. charge current)
Material Metal Dimensions (W x H x D) 133 x 90 x 49 mm
Weight 550 g
