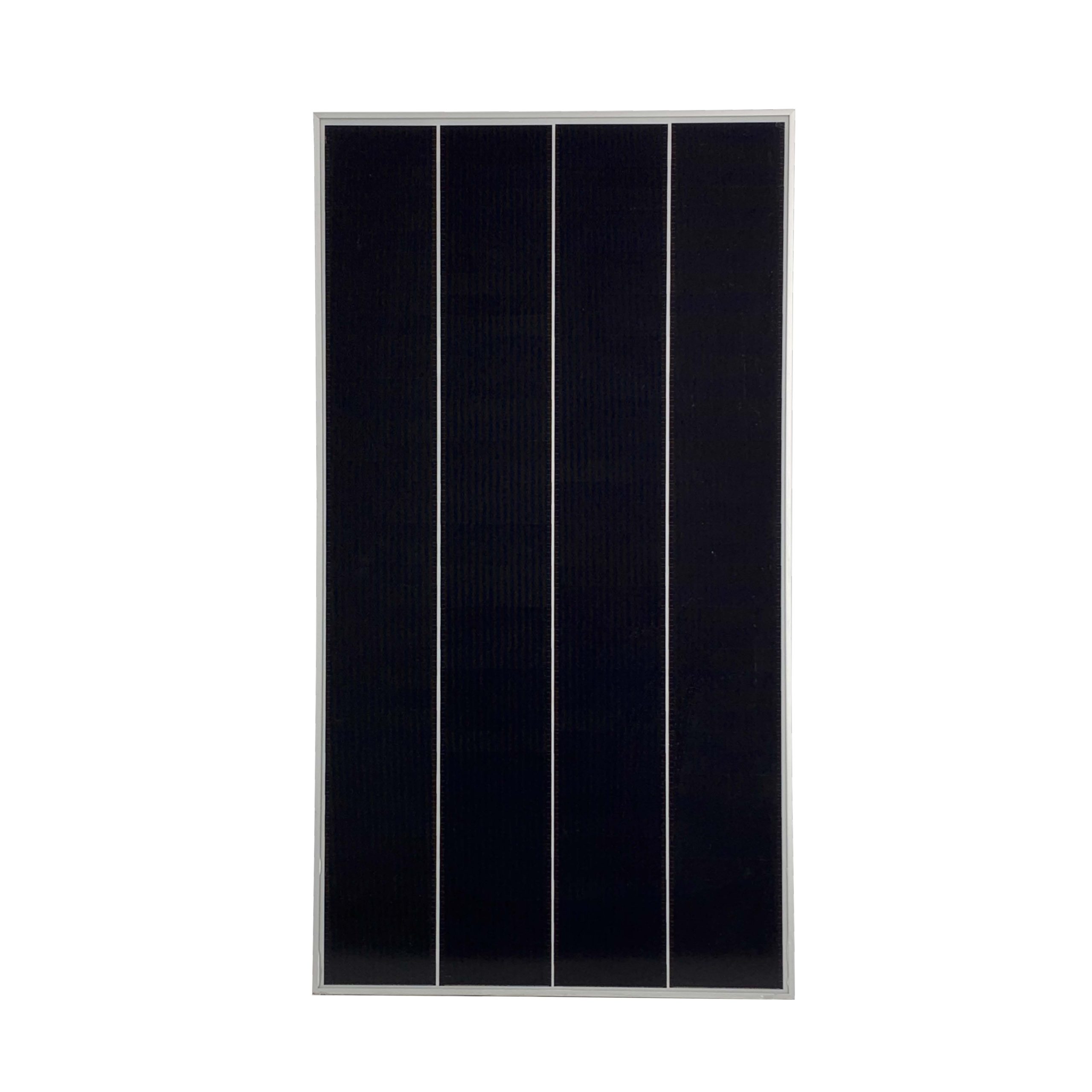

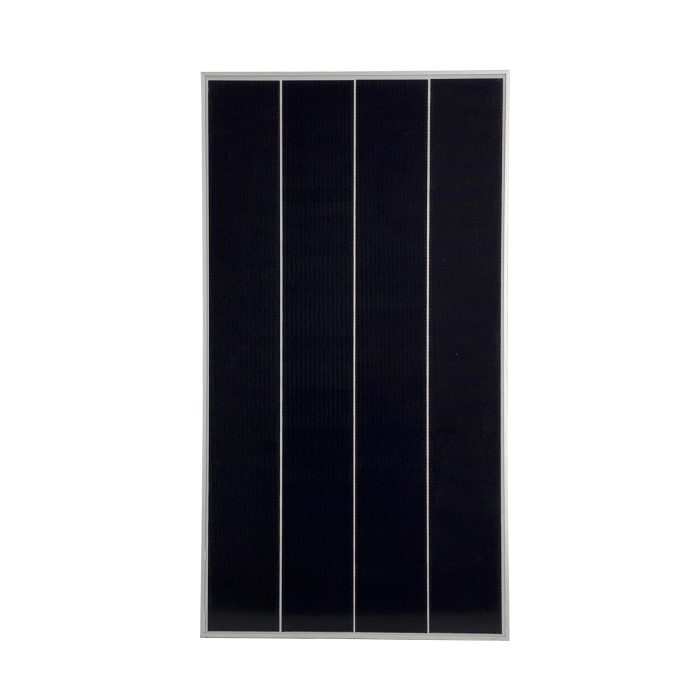

200W Mono Solar Panel
| Nominal Power | 200W |
| Cell Efficiency | 22% |
| Maximum Power Current | 11.02A |
| Maximum Power Voltage | 18.15V |
| Open-circuit Voltage | 21.57V |
| Short-circuit Current | 11.69A |
| Maximum System Voltage | 500V |
| Output Tolerance | 0~+3% |
| Cable （MC4） | 700mm / 2.5mm² |
| Module Structure | Aluminum Frame / Glass / EVA /Backsheet |
| Junction box rating | ≥IP67 |
| Cell | 210*33.2–32*4 |
| Working Temperature | -40~+80℃ |
| Module Dimensions | 1100*890*30mm |
| Weight（Net /Gross） | 10.2/11.6kg |
3
βλέπουν αυτό το προϊόν τώρα!
Περιγραφή
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
- Shingled string welding process, beautiful and neat.
- Using tempered glass, high transparency.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- Packed in a single carton, with protective corners on all four corners.
- OEM and ODM supported.
Σχετικά προϊόντα
20W Mono Solar Panel
SKU:
SC SZ-20-36M
Enter your email in the field below and we will notify you when the product is back in stock.
PERC-P Frame Solar Panel, Solar Module 100W
SKU:
SZ-100-M
Enter your email in the field below and we will notify you when the product is back in stock.
MONOCRYSTALINE SOLAR 115W
SKU:
MONO-12-115W
Original price was: 90,00€.70,00€Η τρέχουσα τιμή είναι: 70,00€.
Solar-Controller SCDplus IVT 48 V, 40 A mit Display
SKU:
SCDplus IVT 48 V, 40 A mit Display
140,00€
Available in backorder - Expect 2 - 4 weeks delivery time

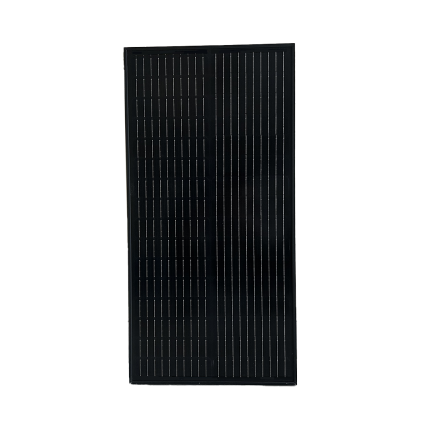

PERC-P Frame Solar Panel, Solar Module 55W
