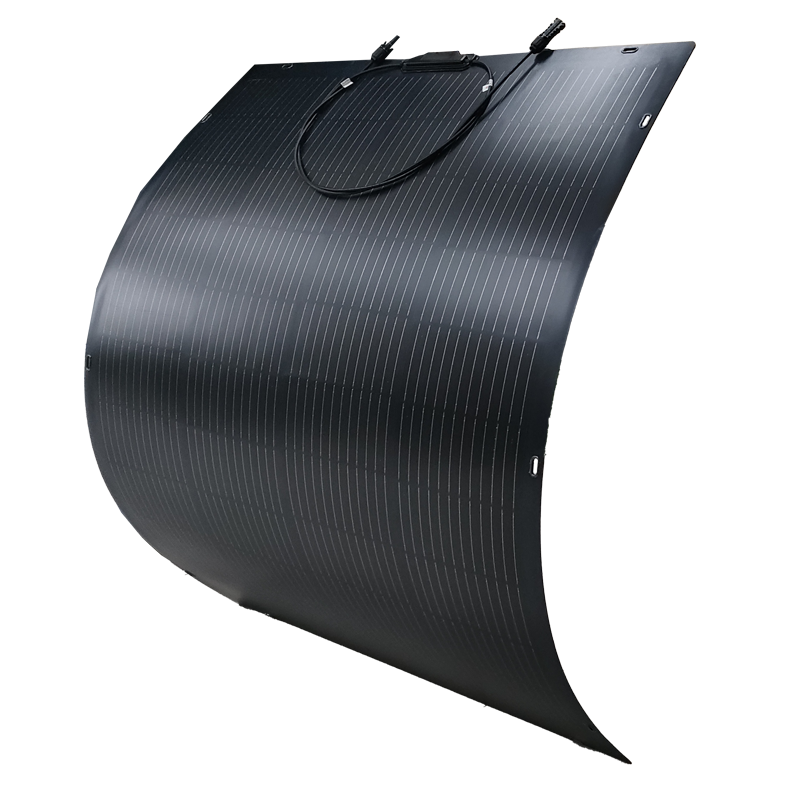

200W (1260*905*2mm) Balcony Semi-Flexible Solar Panel SOLARFAM
Advantages:
Lightweight solar modules have better power generation efficiency and longer service life than traditional flexible modules.
The CPC material used on the surface has good weather resistance and high light transmittance, and its performance is better than that of ETFE material.
Composite material integration, compared with traditional flexible panels, has better protection for solar cells. Sturdy materials and stable workmanship make it possible to walk on the panels.
It is so lightweight that it is easy to carry and install. It is suitable for a variety of application scenarios, especially suitable for mobile off-grid systems and balcony fences. It is lighter in weight and safer.

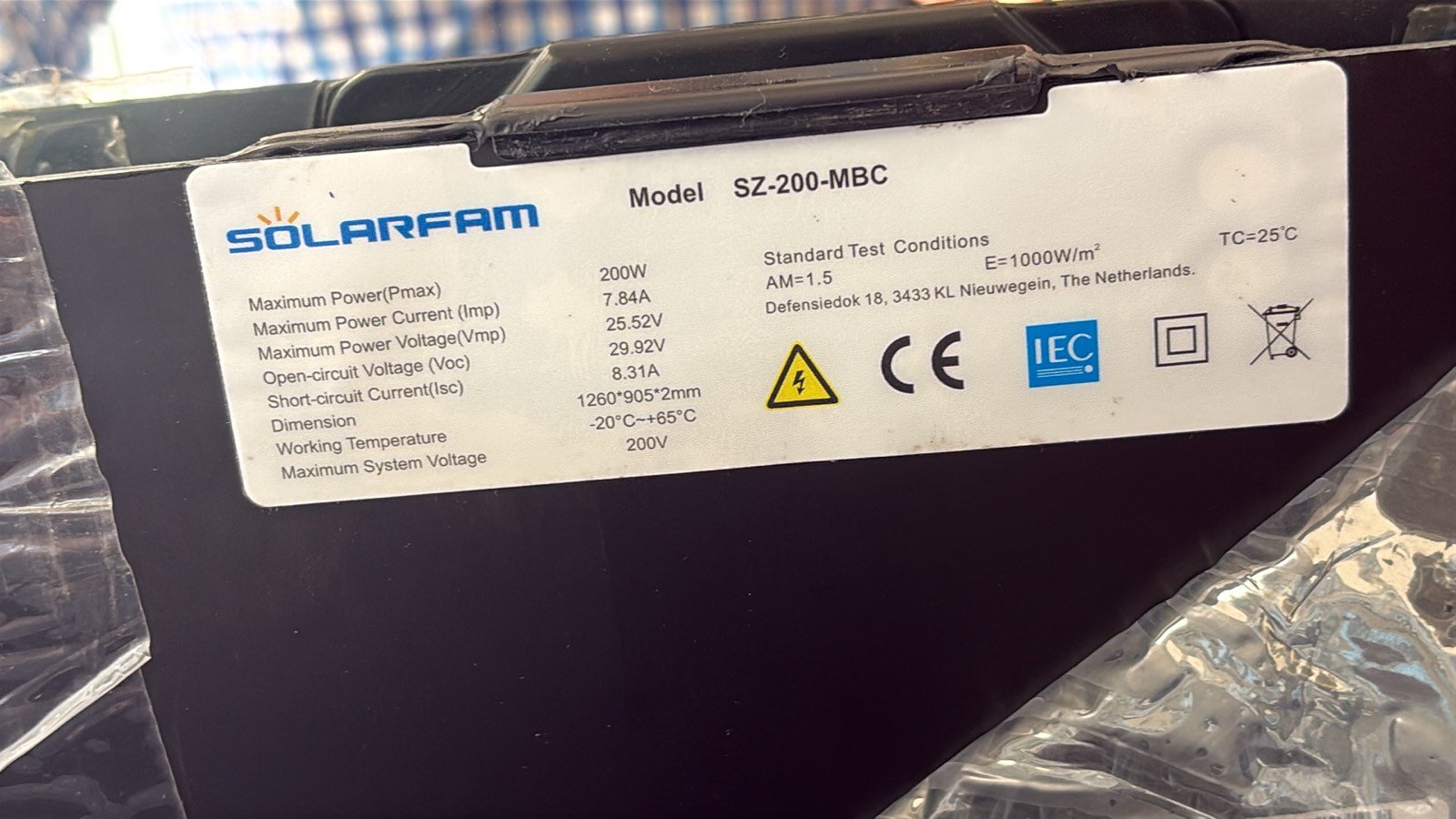

Nominal Power 200W
Maximum Power Current 7.84A
Maximum Power Voltage 25.52V
Open-circuit Voltage 29.92V
Short-circuit Current 8.31A
Maximum System Voltage 200V
Output Tolerance 0~+3%

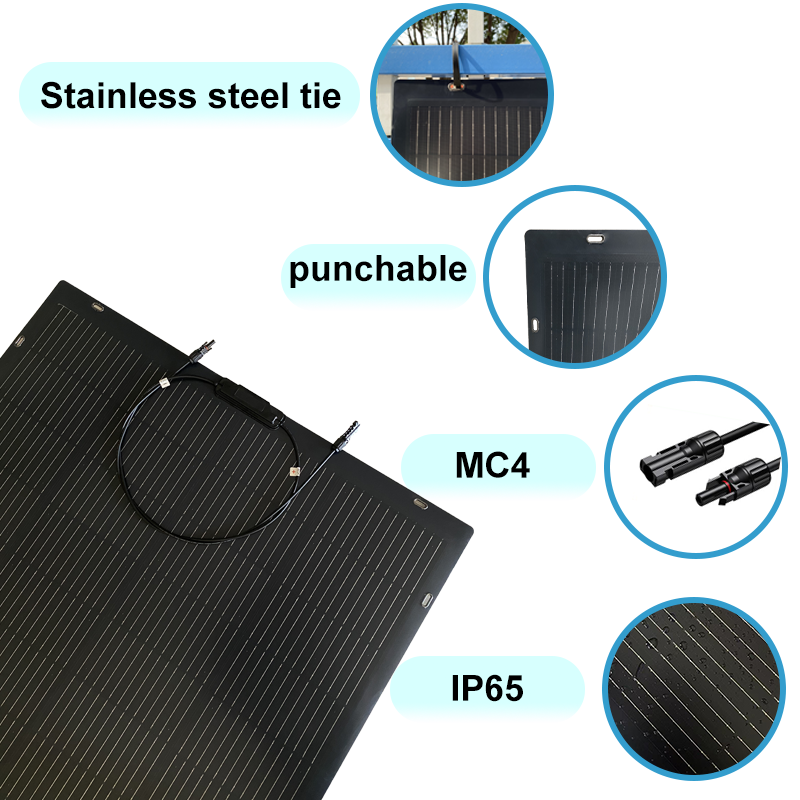

Cable （MC4） 900mm / 2.5mm²
Module Structure CPC / EVA / Backsheet
Junction box rating ≥IP67
Cell 210*105–11*4
Working Temperature -20℃~+65℃
Module Dimensions 1260*905*2mm
Weight（Net /Gross） 4.2/6.5kg
